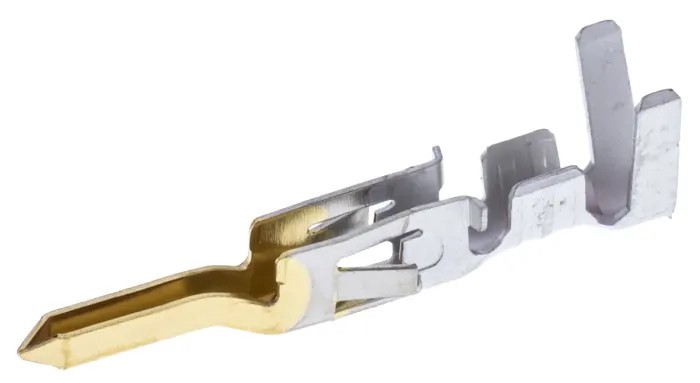

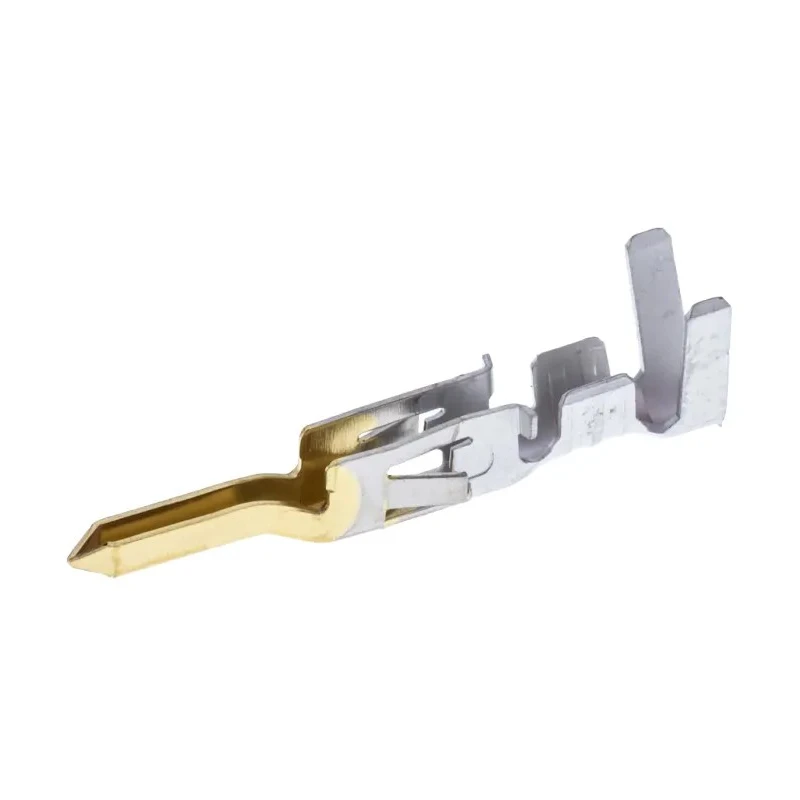

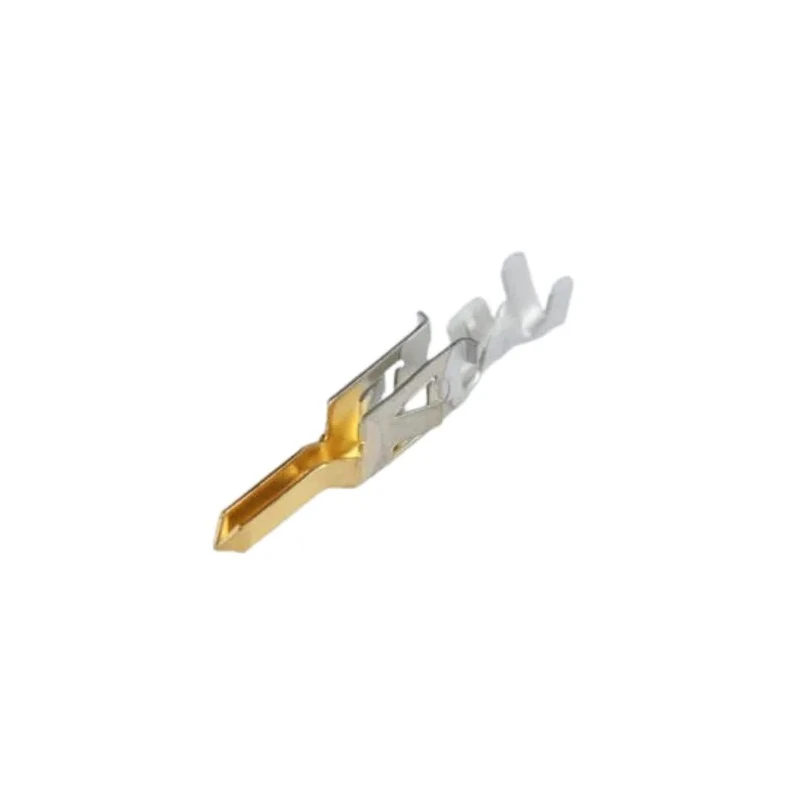

Molex 5558 Series Male Crimp Terminal 9A Current Gold Plated Brass for 24 to 18 AWG Wire 39-00-0431

Free Delivery in India | Lowest Global Shipping Charges

Molex 5558 Series Male Crimp Terminal 9A Current Gold Plated Brass for 24 to 18 AWG Wire 39-00-0431

Name: Molex 5558 Series Male Crimp Terminal 9A Current Gold Plated Brass for 24 to 18 AWG Wire 39-00-0431
Brand: Molex
SKU: 372671
Price: 0.83 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	9A
Gender	Male
Contact Material	Brass
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Mini-Fit Jr Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

Brass construction provides durability and excellent electrical conductivity.
Gold plating reduces oxidation for long-lasting performance.
Designed for 24 AWG minimum and 18 AWG maximum wire sizes.
Rated for a maximum current of 9A ensuring robust power delivery.
Operates effectively within -55°C to 105°C temperature range.
Compatible with Mini-Fit Jr connector housings for secure connections.
Crimp termination method ensures reliable and secure electrical contacts.
Suitable for diverse electrical and electronic applications requiring precise crimping.

Product Description

Molex 39-00-0431 5558 Series Male Crimp Terminal is a robust connector designed for use with Mini-Fit Jr connector housings. Featuring durable brass contacts with gold plating, this terminal accommodates wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²). Rated for a maximum current of 9A and a voltage rating of 600 V, it reliably supports power delivery in various electrical and electronic systems.

The crimp termination method secures the wire to the terminal, ensuring excellent electrical performance and mechanical stability. Its operating temperature range from -55°C to 105°C allows use in varied environments, including high-temperature industrial applications. This terminal is suited for power connections in automation machinery, cable assemblies, industrial electronics, and other applications demanding reliable and long-lasting crimp contacts.

The gold plating on the brass contact material not only ensures excellent conductivity but also protects against oxidation and corrosion, enhancing the durability of connections. The terminal supports up to 30 mating cycles, maintaining consistent performance over repeated connections. For optimal crimping results, a hand crimp tool designed for 16 to 24 AWG wires is recommended.

Molex Mini-Fit Jr 5558 Series Crimp Terminals are engineered for secure fitment with locking tangs in the connector housing, providing stable and vibration-resistant connections. These features make the terminal ideal for industrial, electrical, automation, communications, and consumer electronics applications.

Brass contact material for durability and conductivity. Gold plating reduces oxidation and enhances connection life. Supports wire sizes from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²). Maximum current rating of 9A. Rated for up to 600 V for power applications.

Operates between -55°C to 105°C. Designed for Mini-Fit Jr connector housings with locking tangs. Allow up to 30 mating cycles for repeated use. Crimp termination ensures secure and reliable connections. Explore more Molex connectors and terminals for comprehensive electrical and electronic solutions on EnvMart.
