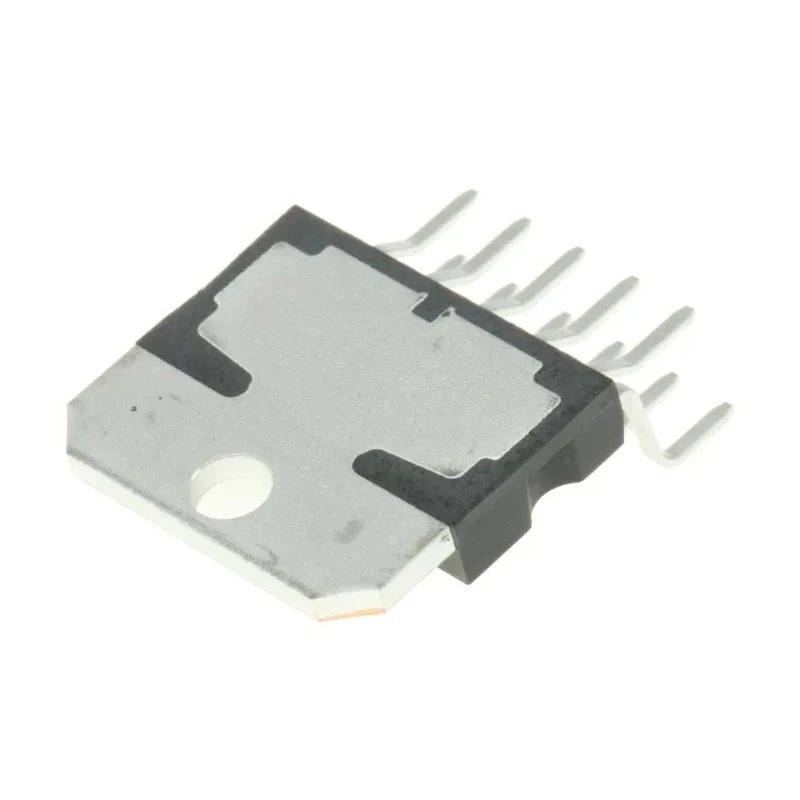

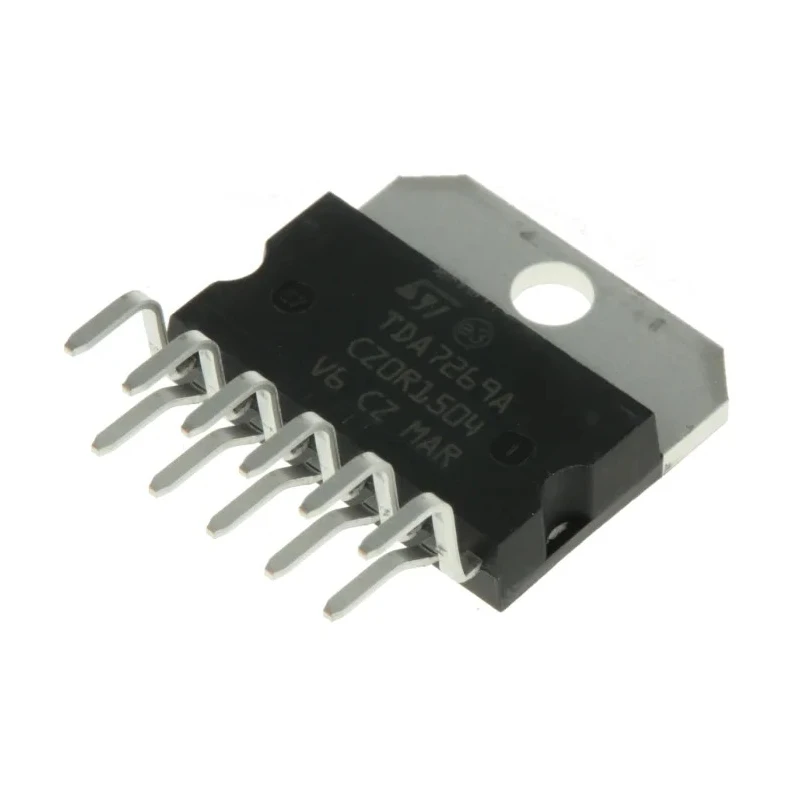

STMicroelectronics 2-Channel Audio Amplifier IC, 11-Pin Multiwatt Package, 14W Output Power TDA7269A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 10.7mm |
| Length | 19.7mm |
| Model | TDA7269A |
| Width | 5mm |
| Output Power | 14W |
| Mount Type | Through Hole |
| Series | TDA7269 |
| Maximum Operating Temperature | 70°C |
| Package Type | Multiwatt |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pin Count | 11 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 9V |
| Amplifier Type | Audio |
| Amplifier Class | Class A-B |
| STMicroelectronics, 2-ChannelClass-AB, 11-Pin MULTIWATT11 TDA7269ABrand | STMicroelectronics |
Key Features
- This audio amplifier IC operates with a supply voltage range of 9V to 18V.
- It features a through-hole mount type for easy PCB integration.
- Designed for stereo output with 2 channels and Class A-B amplifier technology.
- The compact Multiwatt package has 11 pins, measuring 19.7 mm in length, 10.7 mm in height, and 5 mm in width.
- Operational temperature range is from 0°C to 70°C for reliable performance.
- No specific automotive standard certification applies to this IC.
- The device is well suited for applications such as televisions and speakers.
- Robust build ensures consistent audio amplification in various consumer electronics.
Product Description
STMicroelectronics TDA7269A is a high-quality 2-channel audio amplifier IC designed to deliver 14W per channel output power using Class A-B amplifier technology. This Multiwatt packaged semiconductor component features an 11-pin through-hole mount suitable for integration on printed circuit boards in audio devices.
Operating with a supply voltage range between 9V and 18V, the TDA7269A maintains stable and clean audio output for consumer electronics including televisions and speaker systems. It supports stereo audio amplification across two channels, providing balanced sound reproduction.
The compact Multiwatt 11-pin package measures 19.7 mm length, 10.7 mm height, and 5 mm width, making it appropriate for applications requiring space-efficient amplifier solutions. This device can operate efficiently in environmental temperatures ranging from 0°C to 70°C, ensuring durability and reliability in typical ambient conditions.
Class A-B amplifier type for better audio fidelity. Wide supply voltage range from 9V to 18V for flexible power configurations. Dual channel output ideal for stereo audio applications. Compact Multiwatt 11-pin package simplifies PCB layout and soldering.
Operating temperature supports a wide range of consumer electronics environments. Through-hole mounting provides secure mechanical and electrical connections.
This STMicroelectronics audio amplifier IC is best suited for industrial, commercial, and residential audio amplification applications, including televisions and active speaker systems. Its robust design and ease of use make it a preferred choice for audio amplifier circuits.
Explore more products in the Audio Amplifier ICs category on EnvMart to find specialized semiconductor solutions tailored for your audio design needs.
