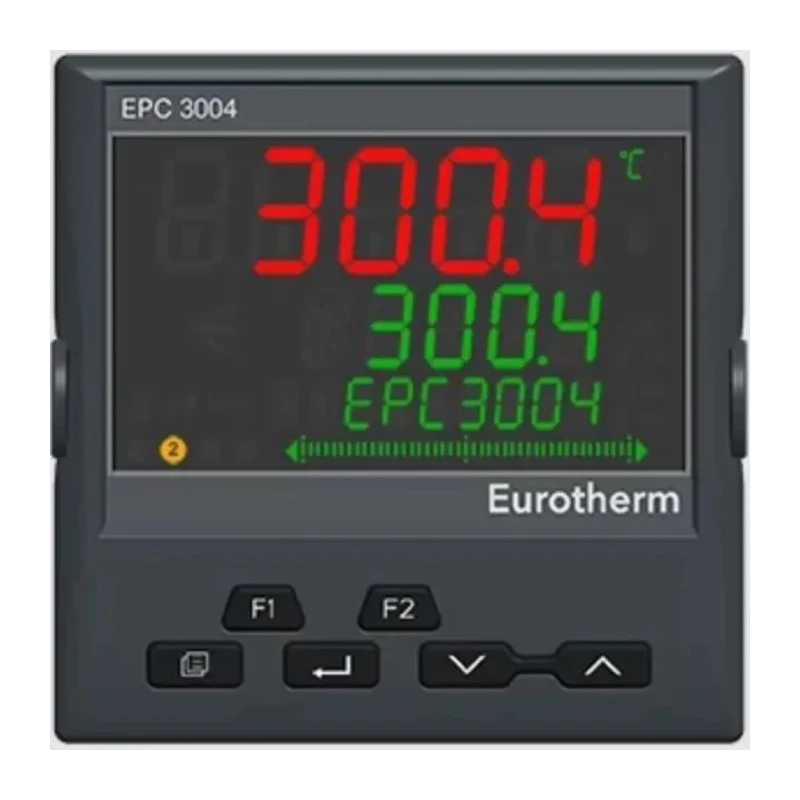

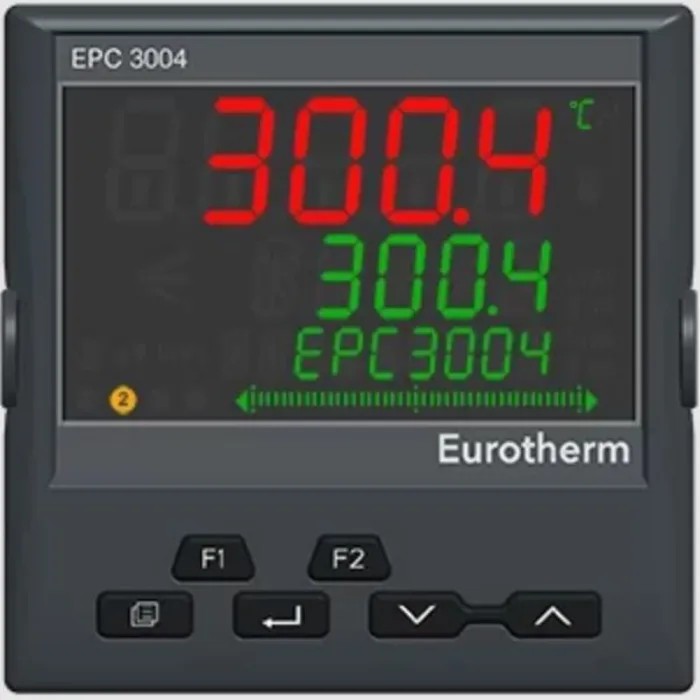

Eurotherm Panel PID Controller 1 Input 3 Relay 24V LCD Display IP65 Panel Mount EPC3004

Eurotherm EPC3004 Panel PID Controller is a high-performance programmable single loop controller designed for precise thermal and process control in industrial environments. It features one input channel capable of handling current, thermocouple, and voltage inputs, making it highly versatile for various sensor types and control scenarios.

This model operates at a maximum supply voltage of 24V and includes three relay outputs for reliable switching control. The controller's LCD display provides clear operational status and setpoints, enhancing ease of use and configuration.

The device is constructed to withstand harsh industrial conditions with an IP65 rated enclosure, ensuring protection against dust and water ingress. Its panel mounting design enables seamless integration into control panels or instrumentation boards, with compact dimensions of 101mm length, 96mm width, and 90mm panel depth.

Equipped with native high-speed Ethernet communication capabilities supporting Modbus, Ethernet/IP, and BACNet protocols, the EPC3004 controller facilitates digitized Industry 4.0 and Industrial Internet of Things (IIoT) applications. It offers up to 20 ramp/soak program profiles, enhancing automation flexibility in complex processes.

The controller guarantees precision with input accuracy of 0.1%, complying with stringent aerospace regulatory standards where applicable. It also includes an optional Factory Mutual (FM) approved temperature limit function, enabling enhanced safety and risk mitigation in critical temperature control applications.

Supports current, thermocouple, and voltage input types for versatile sensor compatibility. Maximum operating temperature up to 55°C and minimum 0°C for broad environmental usability. Screw terminal type ensures secure and reliable wiring connections.

Compact panel mount design with dimensions suitable for industrial installation. Complies with RoHS environmental standards ensuring responsible manufacturing. Enables digital connectivity with Ethernet/IP and BACNet protocol support.

Accurate PID control with 0.1% input precision suitable for aerospace-grade applications. IP65 rating protects the device from dust and water exposure in industrial settings. FM approved temperature limit option available for enhanced safety control.

Ideal for process control in manufacturing, HVAC systems, water treatment, and other industrial automation applications, the Eurotherm EPC3004 Panel PID Controller delivers reliable and precise temperature control, ensuring improved production quality and safety.
