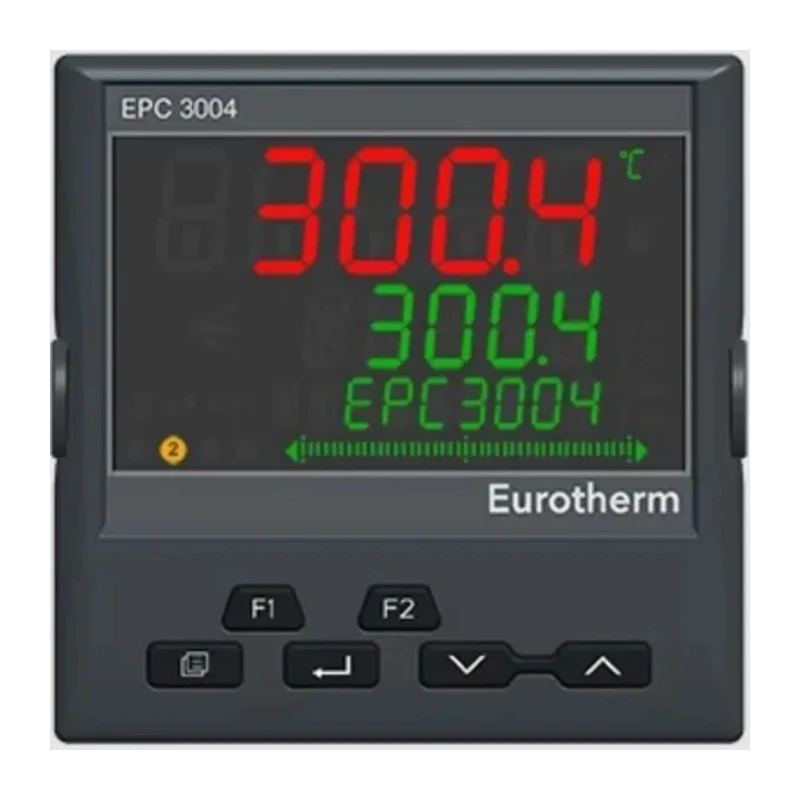

Eurotherm Panel PID Controller 1 Input 1 Relay 24V 10 x 24 Segment Advanced Programmer EPC3004

Eurotherm EPC3004 Panel PID Controller is a high-performance programmable single loop controller designed for thermal and other process applications. This unit features 1 input and 1 relay output, powered by 24V supply voltage, incorporating a 10 x 24 segment advanced programmer for precise temperature control. It is suitable for use in industrial, manufacturing, HVAC, and laboratory environments requiring reliable and accurate process management.

The controller supports multiple input types including current, thermocouple, and voltage signals, and is equipped with a clear LCD display and screw terminals for secure connections. Its compact panel design with dimensions 101mm length, 96mm width, and 90mm depth ensures easy integration in control panels. It complies with RoHS standards and has an IP65 rating, making it resistant to dust and water jets.

The EPC3004 series is built with advanced Eurotherm PID control algorithms, allowing up to 20 ramp and soak program profiles. It supports native fast Ethernet connectivity with RJ45 connector, enabling seamless integration into Industry 4.0 and Industrial Internet of Things (IIoT) systems. Additionally, it supports Modbus, Ethernet/IP, and BACNet communication protocols to interface with automation networks. An optional Factory Mutual (FM) approved temperature limit function is also available.

Designed and manufactured in Poland, this device is engineered for resilience against cyber-attacks, holding Achilles Level 1 certification for digital security. Its measurement accuracy meets stringent aerospace regulatory requirements, ensuring consistent and repeatable control performance.

Features one input and one relay output for precise control. Operates within a temperature range of 0°C to 55°C with IP65 rating. Equipped with an LCD display and screw terminal connections. Compatible with current, thermocouple, and voltage inputs.

Designed for panel mounting with robust build and RoHS compliance. Supports Ethernet/IP and BACNet protocols for industrial communication. Compact size with dimensions 101mm length, 96mm width, and 90mm panel depth. Ideal for industrial automation and process control applications.

This Eurotherm EPC3004 Panel PID Controller is an ideal choice for precision thermal management required in industrial plants, manufacturing lines, HVAC systems, and laboratories. Discover more products like this in the Temperature Controllers category at EnvMart to optimize your process control solutions.
