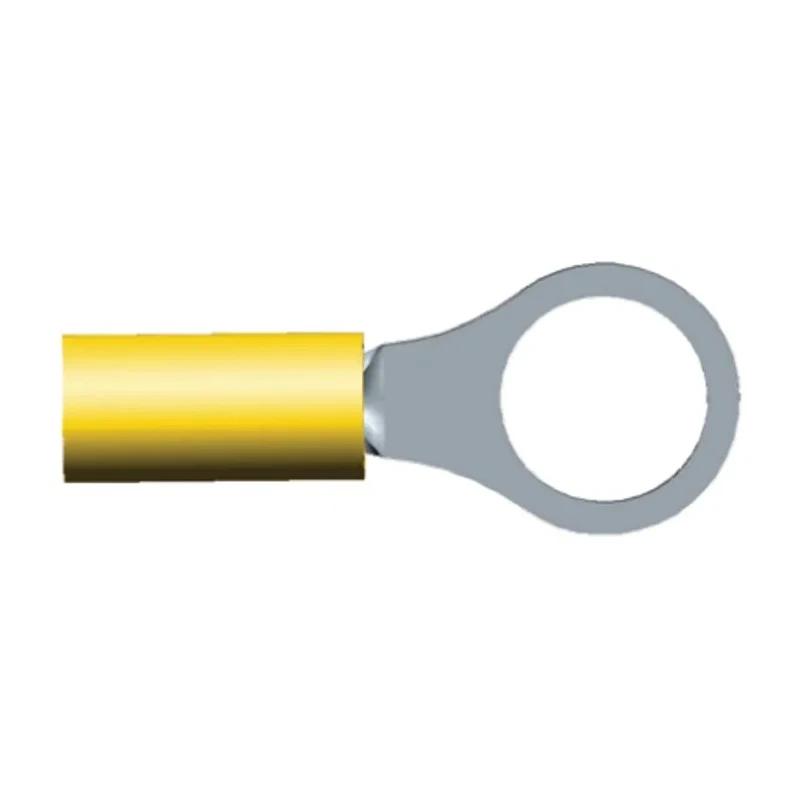

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 26 AWG-22 AWG Wire Size Nylon Yellow 324075

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 26 AWG-22 AWG Wire Size Nylon Yellow 324075

Name: TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 26 AWG-22 AWG Wire Size Nylon Yellow 324075
Brand: TE Connectivity
SKU: 372054
Price: 0.84 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.46mm
Model	324075
Insulation	Insulated
Overall Length	18.8mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Outer Ring Diameter	6.35mm
Inner Ring Diameter	5mm
Stud Size	M5

Key Features

Constructed from high conductivity copper with tin plating for optimal electrical contact.
Insulated with yellow nylon material for wire size identification and enhanced durability.
Features a 6.35mm outer ring diameter and 5mm inner ring diameter suitable for M5 studs.
Overall length of 18.8mm with 0.46mm thickness ensuring robust mechanical performance.
Designed with serrations in the wire barrel for maximum contact and tensile strength after crimping.
Suitable for wire sizes ranging from 26 AWG (0.1mm²) to 22 AWG (0.3mm²).
Rated for maximum operating temperature of 105°C ensuring safe usage under high heat.
Color-coded sleeve facilitates fast wire insertion and tooling identification for high-speed production.

Product Description

TE Connectivity 324075 PIDG Insulated Ring Terminal is engineered for reliable and uniform crimping performance with a high conductivity copper body and tin plating. This M5 stud size ring terminal supports wire sizes from 26 AWG to 22 AWG, insulated with yellow nylon for efficient wire size identification. It has precise dimensions including a 6.35mm outer ring diameter, 5mm inner ring diameter, and an overall length of 18.8mm with 0.46mm thickness.

The terminal features serrations inside the wire barrel to ensure maximum electrical contact and tensile strength after crimping. Additionally, a copper sleeve inside the barrel improves insulation support and prevents wire fraying. The funnelled wire entry allows easy insertion, increasing efficiency during high-speed production environments.

This PIDG ring terminal meets or exceeds the requirements of MIL-T-7928, Type II, Class 1 and 2, making it ideal for demanding industrial and electronic applications. Suitable for use in instruments, control panels, lighting systems, power supplies, transportation equipment, lifting devices, motors, aerospace, and various appliances.

High conductivity copper construction with tin plating for enhanced contact. Nylon insulation sleeve for durability and wire size identification. Serrated wire barrel for superior tensile strength and contact reliability.

Funnelled wire entry ensures fast and reliable wire insertion. Suitable for wire sizes 26 AWG to 22 AWG (0.1mm² - 0.3mm²). Rated for continuous operation up to 105°C maximum temperature. Manufactured in the United States under new condition standards.

This ring terminal is an essential component in electrical wiring requiring robust and reliable connections in industrial, manufacturing, and commercial environments. Users can benefit from its versatile design adapted for high-performance wire crimping, ensuring durability and safety in electrical systems.

Explore more Ring Terminals and wire terminals in EnvMart’s Electronics & Electricals category for comprehensive solutions.
