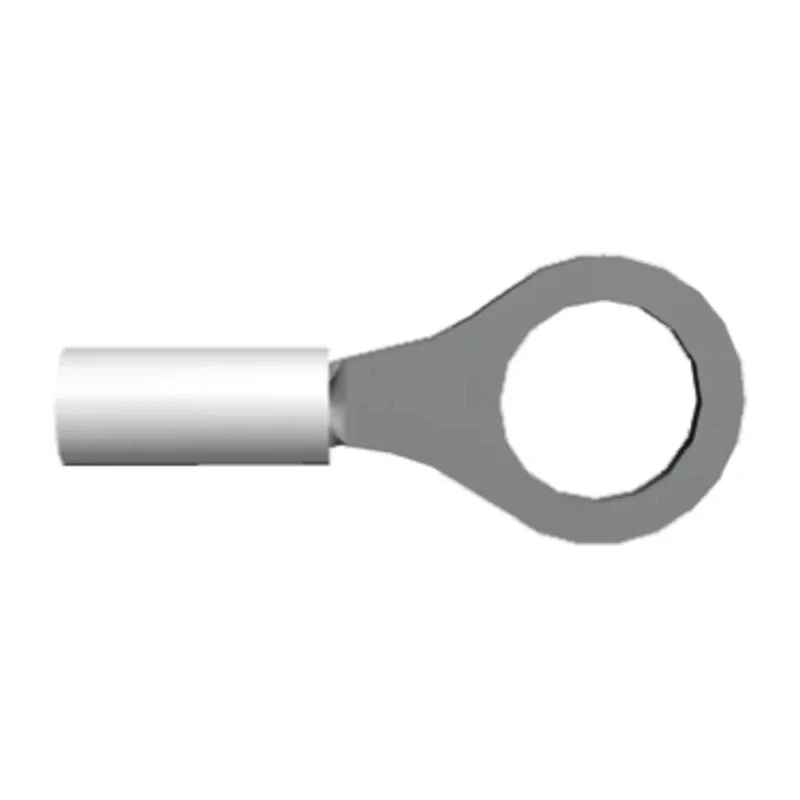

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 24 AWG 20 AWG Wire Size Natural 323990
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| THICKNESS | 0.79mm |
| Model | 323990 |
| Insulation | Insulated |
| Overall Length | 20.85mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-3170Brand: TE ConnectivityManufacturers Part No.: 323990 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- High conductivity copper contact material provides excellent electrical performance.
- Nylon insulated with natural colour coding for easy wire identification.
- Serrated wire barrel enhances tensile strength and ensures secure crimping.
- Designed for M5 stud size with 5mm inner ring diameter and 7.92mm outer ring diameter.
- Suitable for wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
- Maximum operating temperature of 105 degrees Celsius supports demanding environments.
- Colour coded insulation and funnelled wire entry allow fast and accurate wire insertion.
- Meets RoHS compliance standards for environmental safety.
Product Description
TE Connectivity 323990 PIDG Insulated Ring Terminal is engineered for superior electrical connections with an M5 stud size and is suitable for 24 AWG to 20 AWG wire sizes, featuring a natural nylon insulation sleeve.
This ring terminal boasts a high conductivity copper contact material plated with tin, combined with a serrated wire barrel design that ensures maximum contact and tensile strength after crimping. The copper sleeve inside the barrel supports wire insulation and prevents fraying, while a colour-coded nylon insulation sleeve simplifies wire size identification and tooling.
The 5mm inner ring diameter and 7.92mm outer ring diameter are designed to fit M5 studs reliably, with an overall length of 20.85mm and a thickness of 0.79mm. It operates safely up to 105°C, making it suitable for various industrial and commercial applications including instrumentation, control systems, lighting setups, power supplies, panel boxes, transportation vehicles, lifting equipment, motors, aerospace components, and home appliances.
The unique funnelled wire entry feature prevents turned back wire strands, allowing rapid wire insertion during high-speed production environments. Produced following RoHS standards, this insulated ring terminal supports environmental safety and reliability.
High conductivity copper contact material provides excellent electrical performance. Nylon insulated with natural colour coding for easy wire identification. Serrated wire barrel enhances tensile strength and ensures secure crimping.
Designed for M5 stud size with 5mm inner ring diameter and 7.92mm outer ring diameter. Suitable for wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²). Maximum operating temperature of 105 degrees Celsius supports demanding environments.
Colour coded insulation and funnelled wire entry allow fast and accurate wire insertion. Meets RoHS compliance standards for environmental safety. Applicable across instrumentation, lighting, power supplies, panel boxes, transportation, and aerospace industries.
