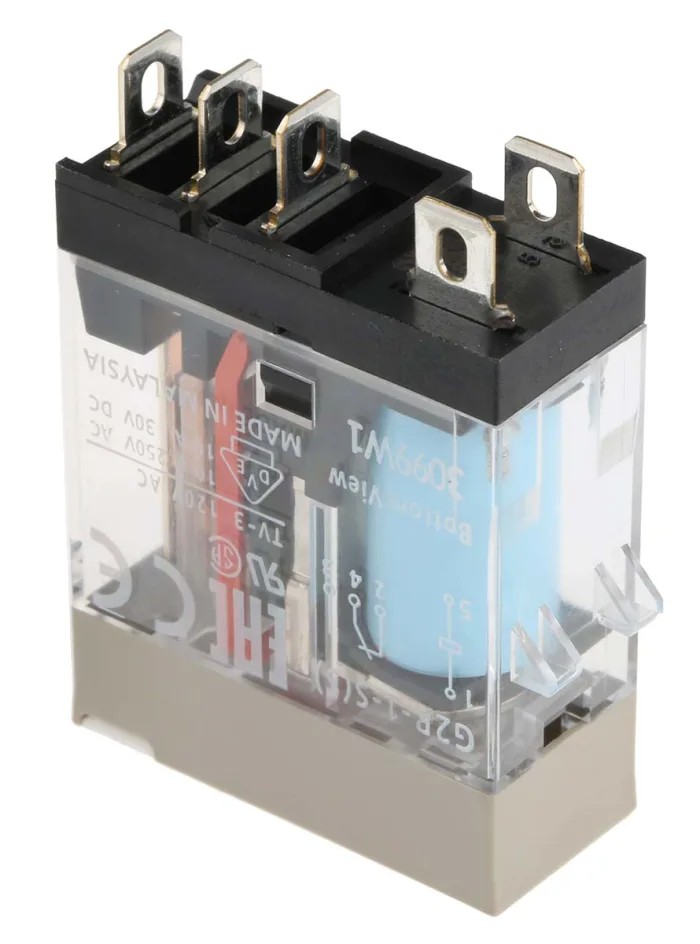

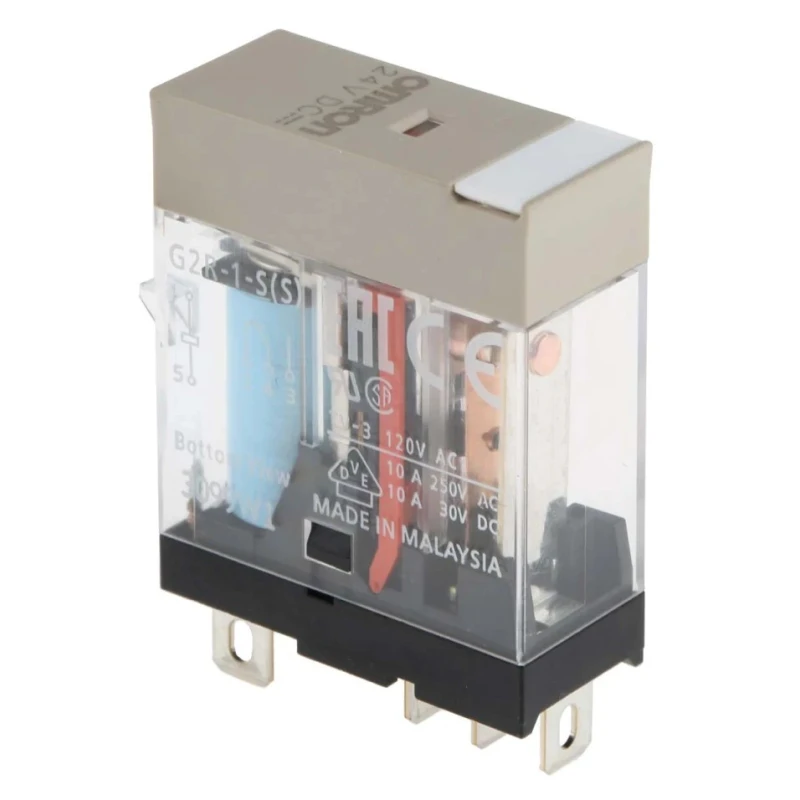

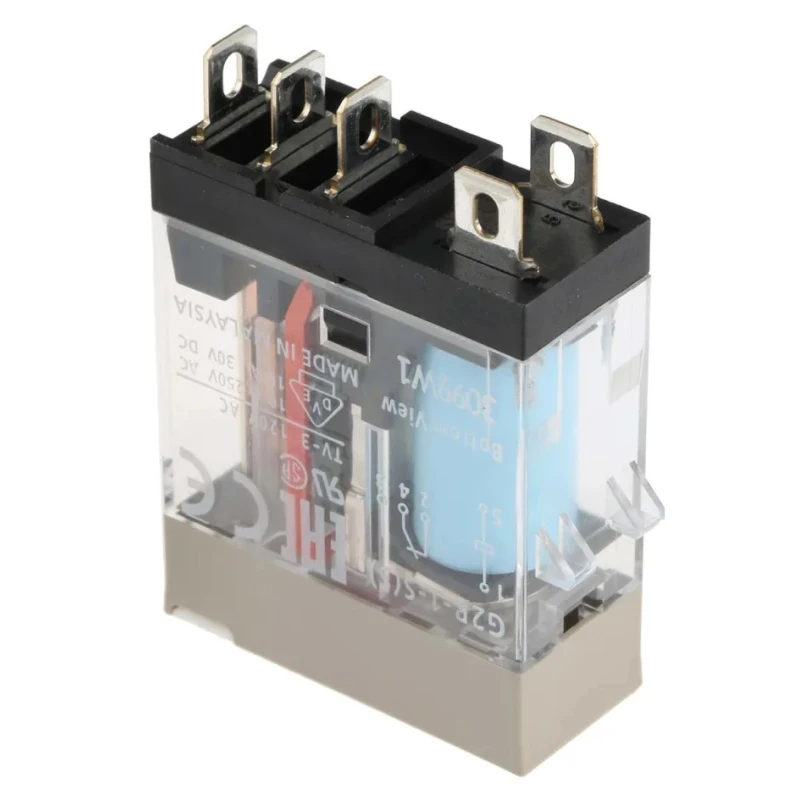

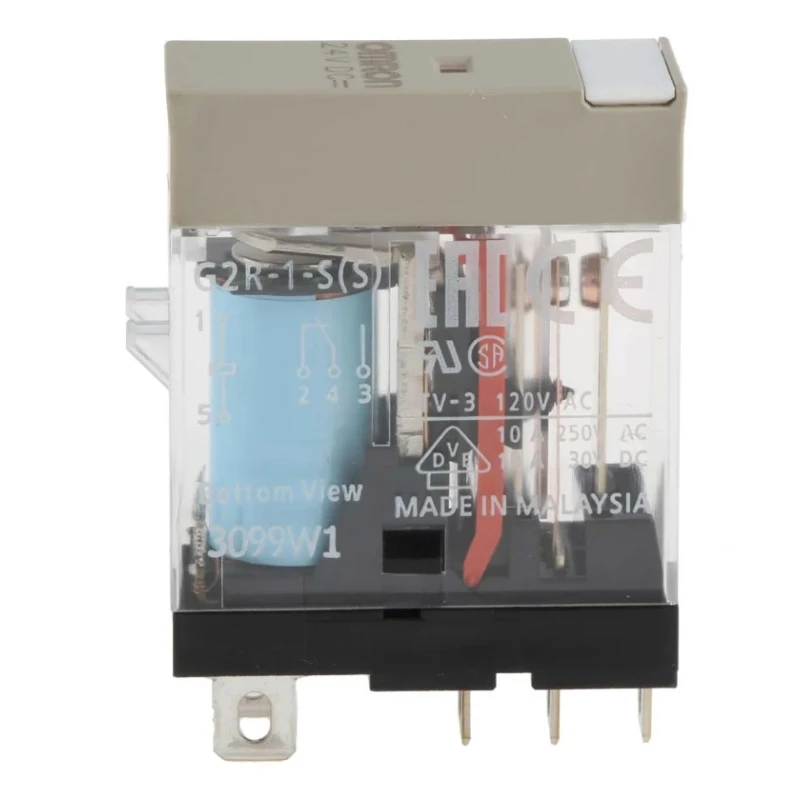

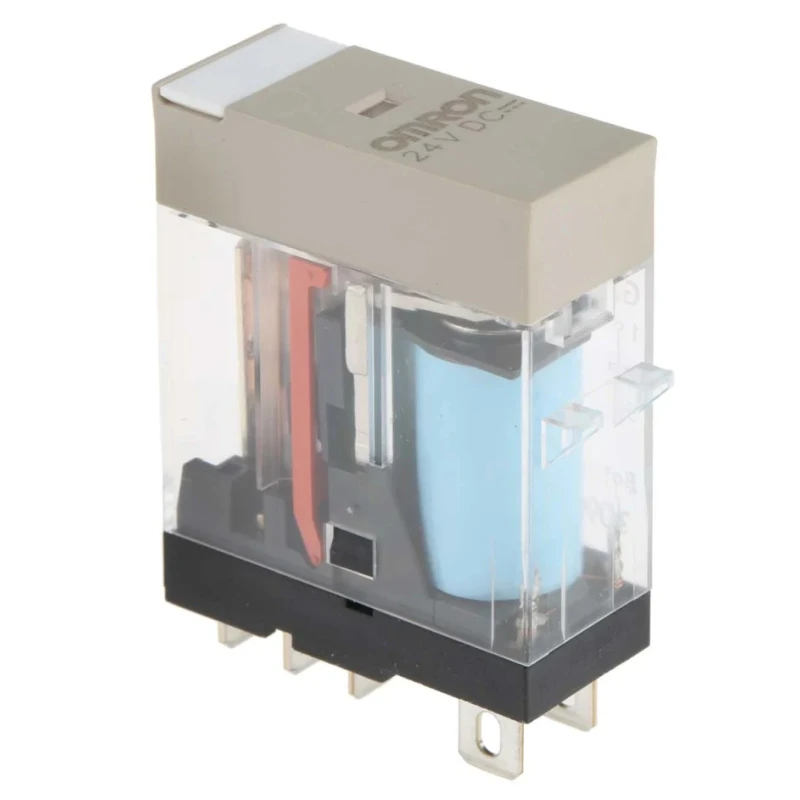

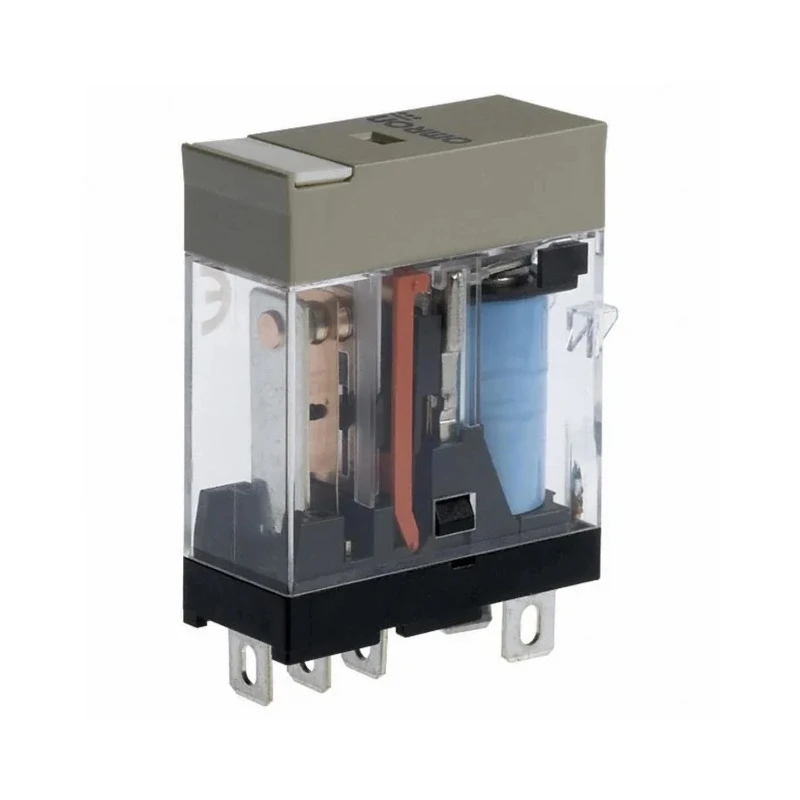

Omron Power Relay, SPDT Contact, 24V DC Coil, 6A Switching Current, PCB Mount G2R-1-S DC24(S)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 30.5mm |
| Model | G2R-1-S DC24(S) |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Plug-In |
| Contact Resistance | 30mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 278Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 300mW |
| Switching Power | 0.9W |
Key Features
- Operates at 24 volts DC coil voltage for diverse automation applications.
- SPDT contact configuration offers flexible electrical switching capabilities.
- Plug-in PCB mount design enables easy installation and replacement.
- Silver alloy contacts provide high conductivity and durability.
- Supports switching currents up to 6 amperes with high isolation between coil and contacts.
- Compact dimensions of 30.5mm length, 13mm width, and 5.2mm height.
- Coil resistance is 278 ohms with coil power consumption of 300 milliwatts.
- Operational temperature range from -40°C to 55°C for reliable performance.
Product Description
Omron G2R-1-S DC24(S) power relay features a single-pole double-throw (SPDT) contact configuration with a coil voltage of 24V DC, designed primarily for printed circuit board (PCB) mounting. This relay provides switching current capability of 6A, making it suitable for various industrial and automation control tasks.
The plug-in design facilitates easy installation and replacement in electronic assemblies and control panels. The relay contacts are made of silver alloy, ensuring efficient electrical conductivity and reducing wear over time.
With a compact form factor measuring 30.5mm in length, 13mm in width, and 5.2mm in height, it fits well in dense circuit environments. Its coil resistance stands at 278 ohms and consumes approximately 300mW coil power, allowing for low-power operation of the control circuitry.
This power relay operates reliably across a temperature range from -40°C to a maximum of 55°C, ensuring robust performance under various environmental conditions common in indoor electronics and manufacturing settings. It supports a maximum switching power of 0.9W and switching voltages of up to 125V DC and 440V AC.
Common applications include usage in programmable logic controllers (PLC), relay logic control circuits, manufacturing automation, and industrial machinery control. The product complies with CSA and UL safety standards, reinforcing its suitability for demanding electrical environments.
Operates at 24 volts DC coil voltage for diverse automation applications. SPDT contact configuration offers flexible electrical switching capabilities. Plug-in PCB mount design enables easy installation and replacement. Silver alloy contacts provide high conductivity and durability.
Supports switching currents up to 6 amperes with high isolation between coil and contacts. Compact dimensions of 30.5mm length, 13mm width, and 5.2mm height. Coil resistance is 278 ohms with coil power consumption of 300 milliwatts.
Operational temperature range from -40°C to 55°C for reliable performance. Suitable for use in PLC control systems, relay logic, and industrial automation. Certified to standards CSA and UL ensuring quality and safety. Discover a broad range of Power Relays and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this power relay is 24V DC.
This model supports a maximum switching current of 6 amperes.
The dimensions are 30.5mm in length, 13mm in width, and 5.2mm in height.
It features a single-pole double-throw (SPDT) contact configuration.
The coil resistance is 278 ohms.
The operational temperature range is from -40°C to 55°C.
This relay uses a plug-in PCB mount design for installation.
The contacts are made of silver alloy, which provides high conductivity.
It supports switching voltages of up to 125V DC and 440V AC.
It complies with CSA and UL safety standards.
The coil power consumption is approximately 300 milliwatts.
Common applications include programmable logic controllers (PLC), relay logic control circuits, and industrial machinery control.
