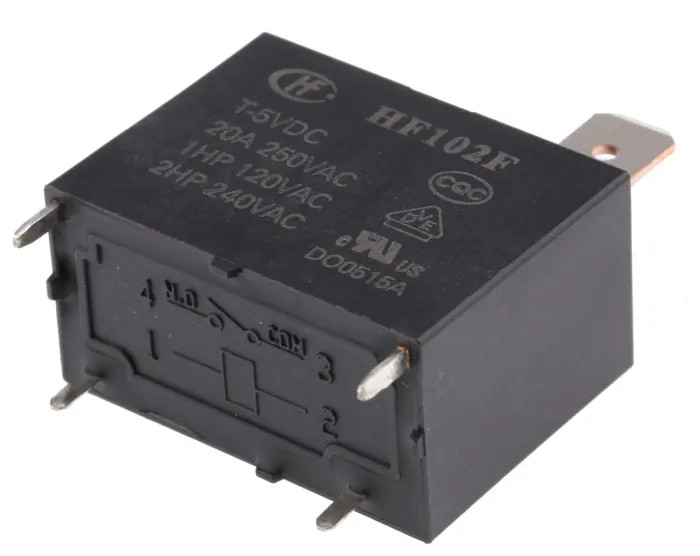

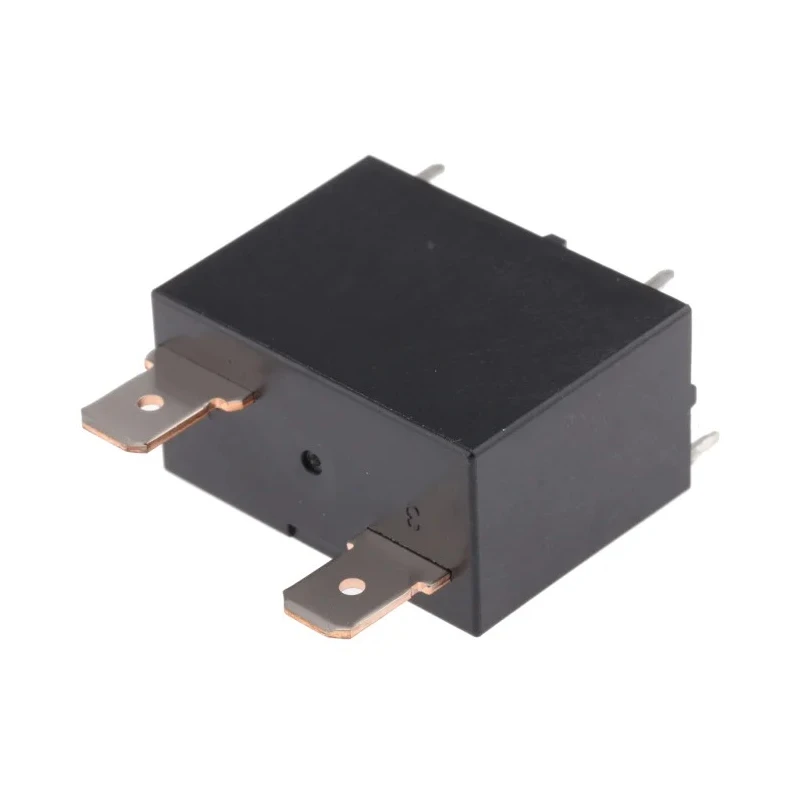

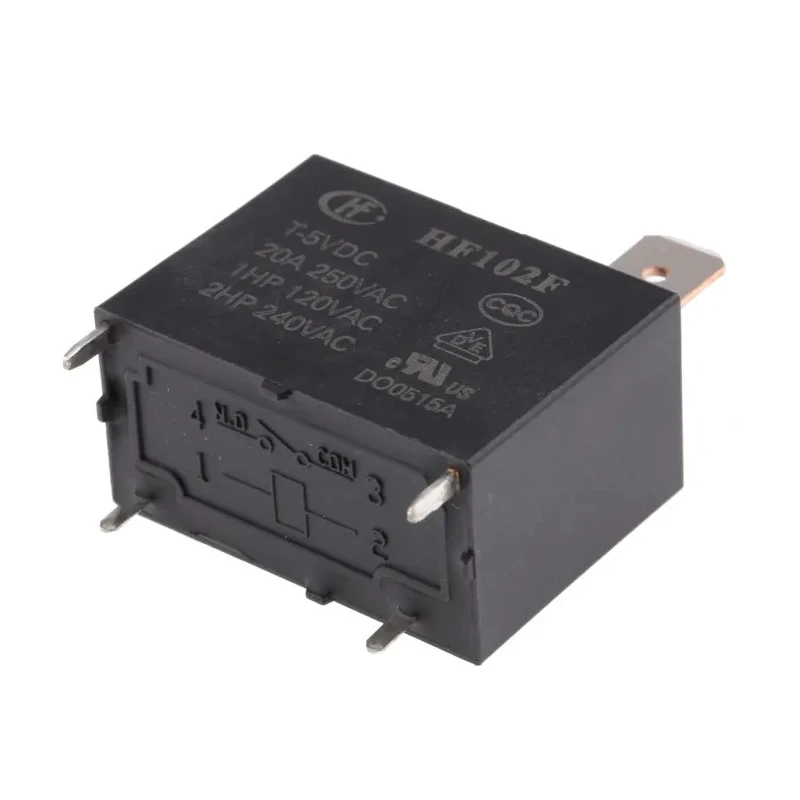

RS PRO PCB Power Relay 5V dc Coil 25A Switching Current SPST 6.3kVA Switching Power 8004530P

RS PRO 8004530P PCB Power Relay features a 5V dc coil voltage and a robust 25A switching current suitable for high power applications. This relay is configured as SPST, making it ideal for switching single circuits on printed circuit boards.

With a switching power rating of 6.3kVA and switching AC voltage up to 250V, it is engineered for demanding electrical loads including motor control and automation systems. The relay coil has a resistance of 27.8Ω and power consumption of 900mW, ensuring efficient electrical operation.

Designed to operate across a wide temperature range from -25°C to 85°C, this power relay maintains reliability in harsh industrial and commercial environments. The contact material utilizes silver alloy, providing excellent conductivity with a low contact resistance of 100mΩ, enhancing the relay’s performance and lifespan.

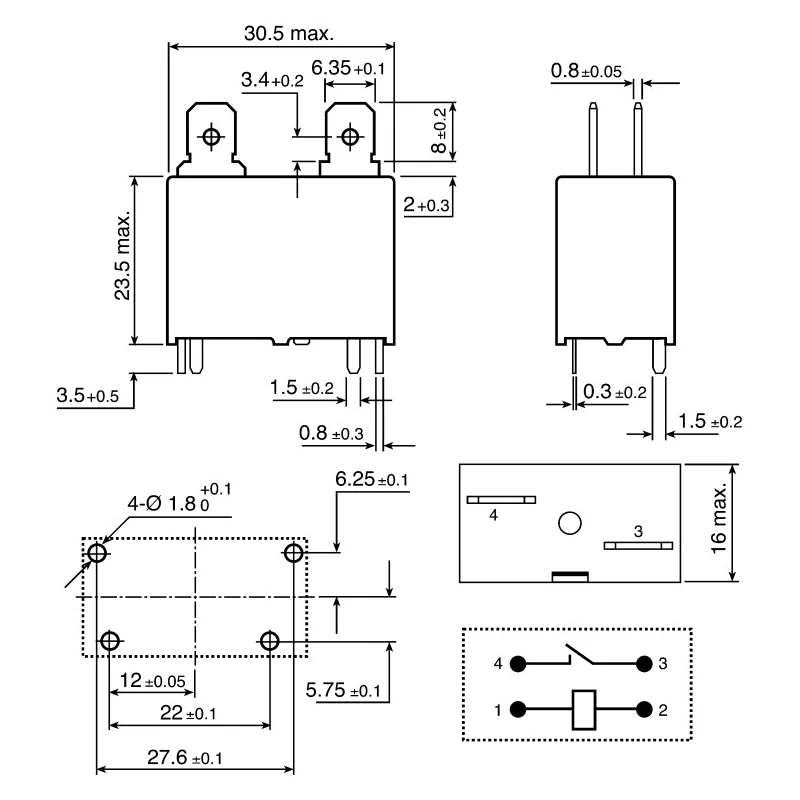

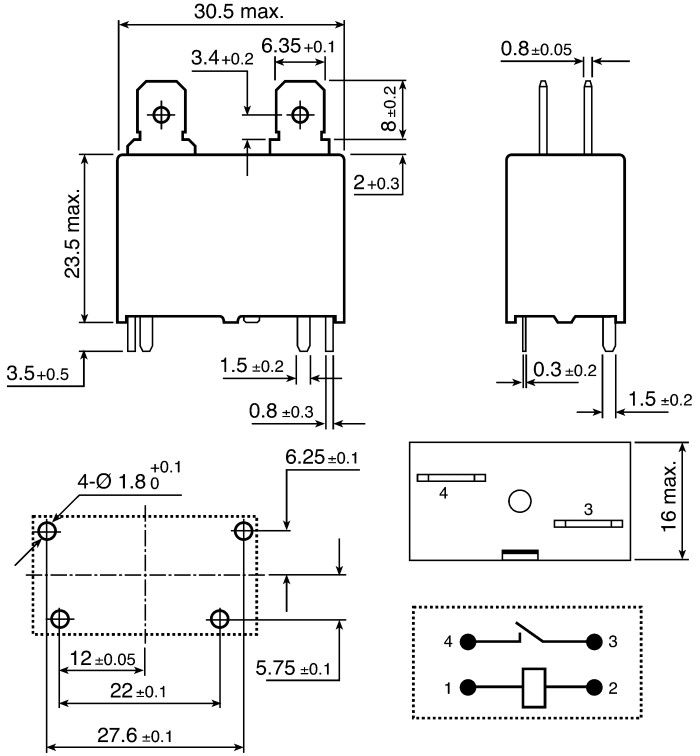

Its compact dimensions of 30.5mm length, 16mm width, and 23.5mm height enable convenient PCB mounting, supported by solder terminal connections for secure installation. The relay offers high dielectric strength of 4.5kV between coil and contacts, assuring electrical safety and insulation integrity.

Capable of withstanding inrush currents as high as 80A, this relay suits heavy load applications up to 5000VA. The flux proof construction adds durability for long-term use. It meets international safety standards with certifications including UL file no. E134517, CQC, and VDE, providing assurance of quality and compliance.

This PCB mounted power relay has an SPST (Single Pole Single Throw) contact configuration. Designed for use with switching power up to 6.3kVA and switching AC voltage of 250V AC. The coil resistance is 27.8 ohms with a power rating of 900mW for efficient coil operation.

Operates reliably in temperatures ranging from -25°C to 85°C for industrial and commercial environments. Contact material is silver alloy ensuring low contact resistance of 100mΩ for improved conductivity. Compact dimensions with length 30.5mm, width 16mm, and height 23.5mm optimize PCB space usage.

Mounting type is PCB with solder terminals for secure electrical connections. High dielectric strength of 4.5kV between coil and contacts provides excellent insulation. Suitable for high inrush current applications up to 80A, ideal for motor switching and heavy loads up to 5000VA.

Constructed for durability with flux proof housing and complies with UL, CQC, and VDE approvals.

This RS PRO power relay is ideal for industrial, automation, manufacturing, and electrical control applications requiring reliable high power switching on circuit boards. It allows efficient integration in control panels and machines, improving operational safety and efficiency.
