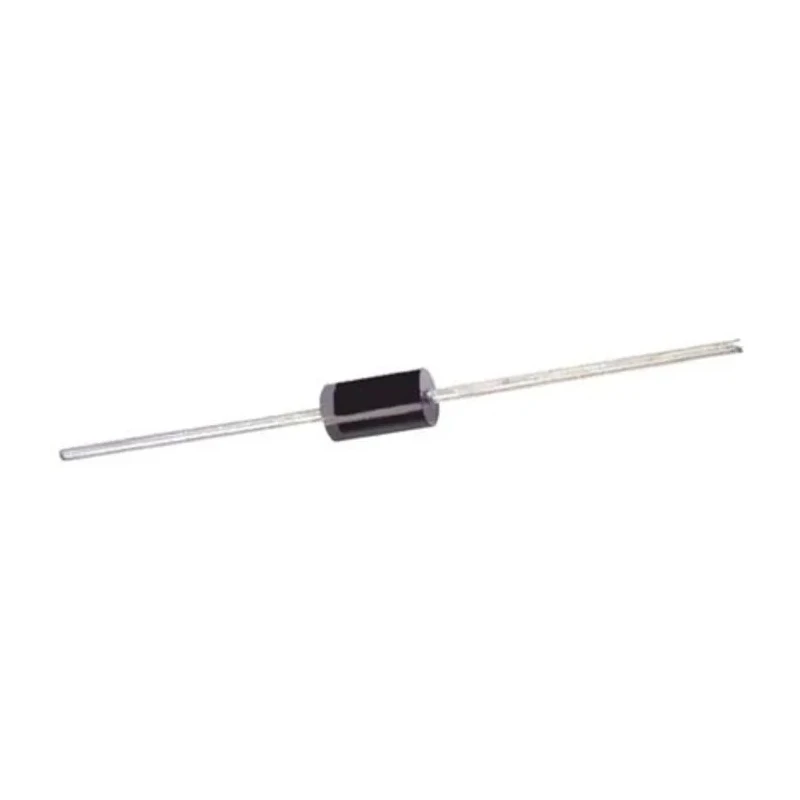

onsemi 6.8 V 5 W Voltage Regulator Zener Diode, Through Hole 2-Pin DO-15 1N5342BRLG
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5342BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 175mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 6.8V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
Key Features
- This diode features a single axial lead configuration optimized for voltage regulation.
- It supports a nominal Zener voltage of 6.8 V with ±5% tolerance.
- Maximum power dissipation is rated at 5 W, suitable for industrial applications.
- Package type DO-15 ensures robust mechanical protection with corrosion resistance.
- Operating temperature range spans from -65°C to 200°C, ensuring reliability in harsh conditions.
- Test current (It) is 175 mA with maximum zener impedance of 1 ohm.
- The maximum reverse leakage current is low at 10 μA for efficient operation.
- Ideal for use in industrial voltage regulation circuits requiring stable performance.
Product Description
onsemi 1N5342BRLG is a 6.8 V nominal Zener diode designed for voltage regulation applications, housed in a durable 2-pin Through Hole DO-15 package rated for 5 W power dissipation. This single-element diode features a molded thermosetting plastic package with corrosion resistant external surfaces and readily solderable leads, ensuring longevity and reliable performance in industrial and commercial environments.
Its nominal Zener voltage of 6.8 V with a tolerance of ±5% provides precise voltage regulation, suitable for power supplies, voltage reference, and protected electronic circuits. The diode operates efficiently at test current of 175 mA, with a maximum zener impedance of 1 ohm, ensuring minimal voltage variation under load. The device withstands a broad temperature range from -65°C to 200°C, making it ideal for rugged industrial applications.
Mechanical dimensions include an 8.89 mm length and a 3.68 mm height, compact enough for many PCB layout requirements. The 2-pin DO-15 package design facilitates through hole mounting, enhancing stability and heat dissipation.
This diode is part of the 1N53 series, characterizing ON Semiconductor's Surmetic™ line of axial-leaded 5 W Zener diodes with void-free transfer-molded packages, ensuring high quality and consistent manufacturing standards.
Single axial lead diode configuration. Nominal voltage regulation at 6.8 V with ±5% tolerance. Maximum power dissipation of 5 W. Through hole mount with DO-15 package. Operating temperature range: -65°C to 200°C. Low maximum reverse leakage current of 10 μA.
Test current rating of 175 mA. Compact dimensions for PCB integration. Reliable corrosion resistance and solderable leads. Manufactured in China to industry standards.
This product is well-suited for industrial voltage regulation, power management, and electronic circuit protection applications including manufacturing, industrial equipment, and electronic instrumentation. Browse the comprehensive range of Zener Diodes at EnvMart for high-quality semiconductor components.
