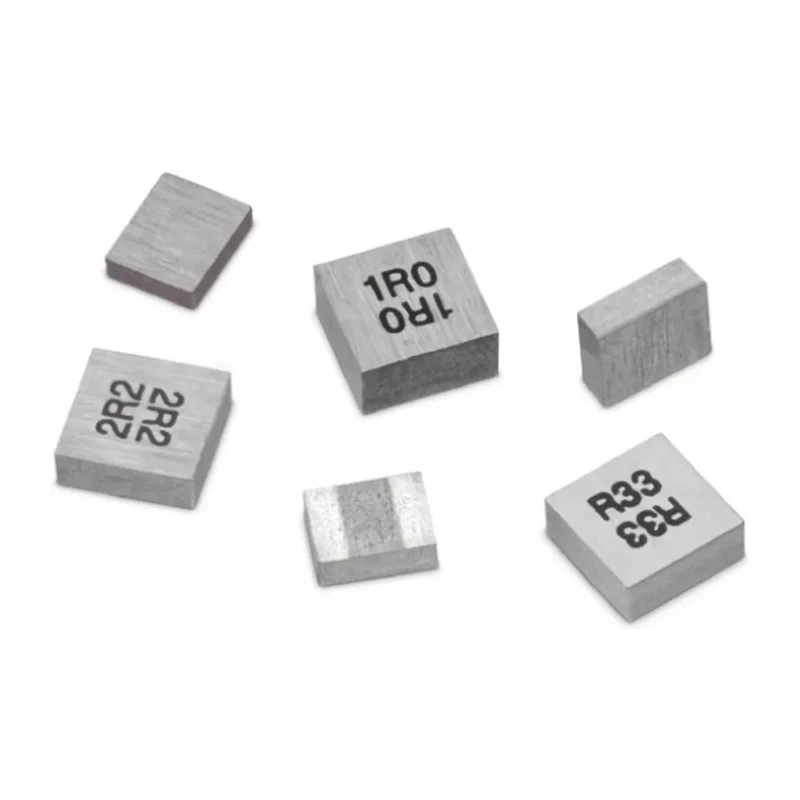

Wurth Elektronik WE-MAPI 3015 Wirewound Surface Mount Inductor with Composite Iron Powder Core 22 μH ±20 % 74438335220

Wurth Elektronik 74438335220 WE-MAPI 3015 Wirewound Surface Mount Inductor is engineered with a composite iron powder core providing 22 μH inductance with ±20 % tolerance. This inductor is moulded and designed for efficient handling of currents up to 600 mA DC, making it ideal for power electronics applications such as DC/DC converters in portable devices and communication equipment.

The 3015 package has dimensions of 3 mm length, 1.5 mm height, and 3 mm depth, ensuring a compact footprint on printed circuit boards. It features a surface mount termination style, facilitating automated, high-speed manufacturing assembly.

This component complies with the AEC-Q200 automotive standard, demonstrating its suitability for automotive and industrial environments. It withstands a wide operating temperature range from -40°C to 125°C, ensuring high reliability under varying thermal conditions. The maximum DC resistance of 1.04 Ω contributes to low power losses, while the maximum self-resonant frequency of 12 MHz supports applications requiring high frequency operation.

The WE-MAPI series inductors are designed to provide low acoustic noise and minimal leakage flux noise, enhancing overall device performance. Typical applications include DC/DC converters for power supplies, FPGA-based circuits, POL converters, portable electronics such as PDAs, digital cameras, smartphones, and tablets, as well as graphic cards and mainboards.

These inductors come supplied on tape and reel packaging, which is suitable for high volume manufacturing environments, optimizing production efficiency and reducing handling issues. The component is manufactured in Korea, Republic Of.

Constructed with a moulded composite iron powder core for improved performance. Rated maximum DC current of 600 mA suitable for power supply circuits. Compact 3015 package with dimensions 3 mm length, 1.5 mm height, and 3 mm depth.

Features AEC-Q200 automotive standard compliance and IPC/JEDEC J-STD-020D approvals. Operating temperature range from -40°C to 125°C ensures reliability in harsh environments. Maximum DC resistance of 1.04 Ω reduces power loss and improves efficiency.

Termination style is surface mount suitable for automated assembly processes. Maximum self-resonant frequency of 12 MHz supports high frequency circuit designs. Supplied in tape and reel packaging ideal for high volume manufacturing.
