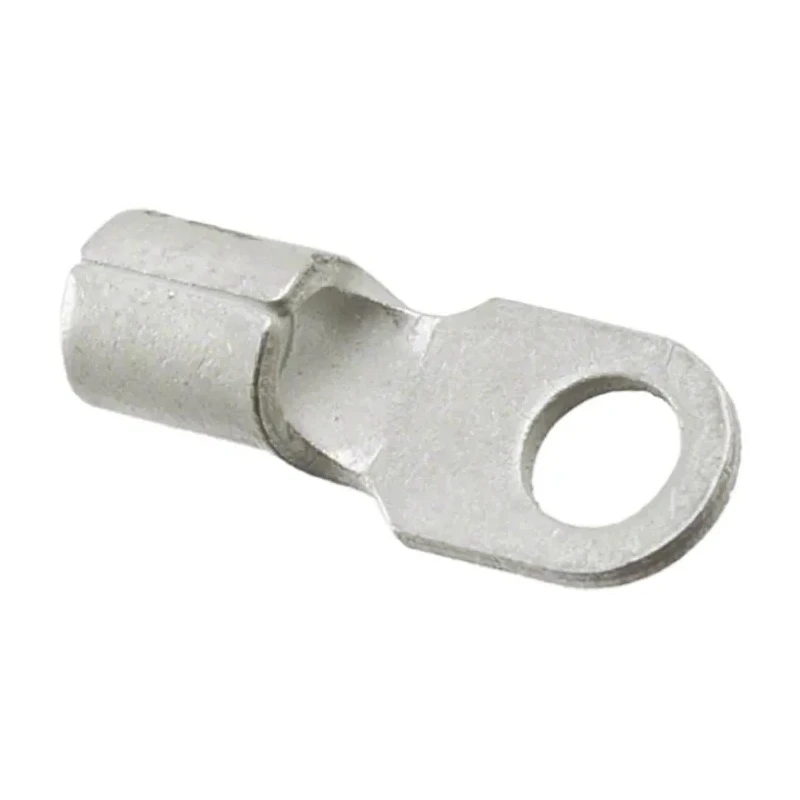

Molex Versakrimp Uninsulated Ring Terminal M4 Stud Size 14 AWG to 10 AWG Wire Size Grey 19323-0012
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 1.02mm |
| Insulation | Uninsulated |
| Overall Length | 15.2mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | +149°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 7.16mm |
| Inner Ring Diameter | 4.39mm |
| Stud Size | M4 |
Key Features
- Made from copper alloy with tin-plated contacts for reliable electrical connection.
- Uninsulated with grey outer color for clear identification.
- Outer ring diameter is 7.16 mm and inner ring diameter is 4.39 mm.
- Overall terminal length is 15.2 mm with 1.02 mm thickness.
- Fits wire sizes from 2.5 mm² (14 AWG) up to 6 mm² (10 AWG).
- Maximum operating temperature is +149°C and minimum operating temperature is -55°C.
- Designed for vibration resistance with seamless barrel for easy crimping.
- Ideal for industrial and electrical power connector applications requiring robust wire termination.
Product Description
Molex 19323-0012 Versakrimp Uninsulated Ring Terminal is engineered to provide a secure and reliable termination for electrical wiring in industrial, laboratory, construction, and manufacturing applications. This uninsulated Ring Terminal is designed to fit M4 stud sizes and accommodate wire sizes from 14 AWG to 10 AWG (2.5 mm² to 6 mm²).
Constructed from a copper alloy with tin plating, the terminal ensures excellent electrical conductivity and corrosion resistance. Its grey color facilitates easy identification in complex wiring setups. The seamless barrel design enables the barrel to rotate in crimping jaws, simplifying the crimping process and improving quality consistency.
The overall length of the terminal is 15.2 mm, with an outer ring diameter of 7.16 mm and an inner ring diameter of 4.39 mm, suitable for M4 studs commonly used in power connectors. Its thickness is 1.02 mm, providing robustness for heavy-duty applications. The terminal withstands operating temperatures from -55°C to +149°C, making it suitable for demanding environmental conditions.
This terminal's uninsulated design and durability make it ideal for electrical connections that require vibration resistance and mechanical stability. Applications include power supply wiring, industrial control panels, HVAC systems, and other demanding electronic or electrical equipment installations.
Made from copper alloy with tin plating for corrosion resistance. Uninsulated with grey identification. Fits M4 stud size with outer ring diameter of 7.16 mm. Supports wire sizes from 14 AWG to 10 AWG. Seamless barrel design for consistent crimping.
Operational temperature range from -55°C to +149°C. Provides vibration resistance for stable connections. Suitable for industrial and commercial electrical wiring. Manufactured in the United States by Molex. Explore the wide selection of electrical connectors and wire terminals at EnvMart for enhanced production efficiency and superior product quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal accommodates wire sizes from 14 AWG to 10 AWG, or 2.5 mm² to 6 mm².
The terminal can operate within a temperature range of -55°C to +149°C, making it suitable for demanding environmental conditions.
The outer ring diameter is 7.16 mm, while the inner ring diameter is 4.39 mm.
It is constructed from copper alloy with tin plating, ensuring good electrical conductivity and corrosion resistance.
The overall length of the terminal is 15.2 mm, and its thickness is 1.02 mm.
This terminal is designed to fit M4 stud sizes, which are commonly used in power connectors.
The seamless barrel design allows the barrel to rotate in crimping jaws, simplifying the crimping process and improving quality consistency.
The terminal is grey in color, which facilitates easy identification in complex wiring setups.
It is ideal for applications such as power supply wiring, industrial control panels, and HVAC systems.
This model is uninsulated, making it suitable for applications where insulation is not required.
It is manufactured in the United States by Molex.
The tin plating on the contacts provides corrosion resistance, enhancing the reliability of the electrical connection.
