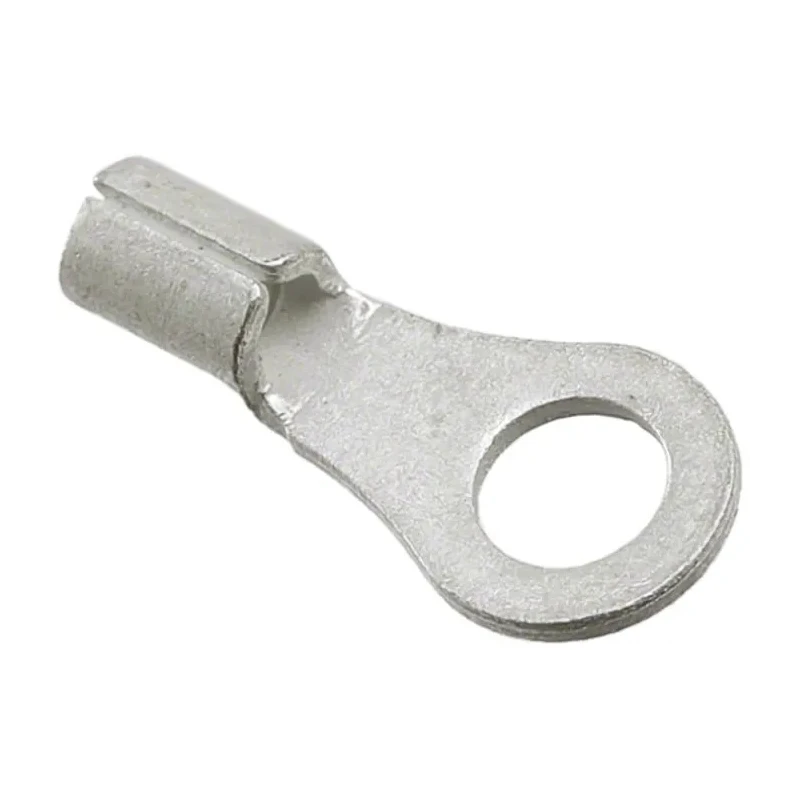

Molex Versakrimp Uninsulated Ring Terminal M3.5 Stud Size 22 AWG to 18 AWG Wire Size Grey 19323-0003
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 0.71mm |
| Insulation | Uninsulated |
| Overall Length | 11.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 6.45mm |
| Inner Ring Diameter | 3.79mm |
| Stud Size | M3.5 |
Key Features
- The ring terminal has an outer ring diameter of 6.45 mm and an inner ring diameter of 3.79 mm.
- It features an overall length of 11.5 mm and a thickness of 0.71 mm providing robust electrical connection.
- Constructed with copper alloy contact material and tin plating for excellent conductivity and corrosion resistance.
- This terminal supports a maximum wire size of 18 AWG and minimum wire size of 22 AWG, compatible with 1 mm² max and 0.5 mm² min wire cross-section.
- Operating temperature range is from -55°C to 105°C, suitable for demanding electronic and electrical applications.
- The product is uninsulated, enabling direct and secure connections in circuits.
- These ring terminals are ideal for use in industrial, electronic, and power connector applications requiring reliable ring connectors.
- Manufactured in the United States ensuring high-quality standards and materials.
Product Description
Molex 19323-0003 Versakrimp Uninsulated Ring Terminal is engineered for reliable electrical connections in electronic and industrial settings. Designed for an M3.5 stud size, this terminal accommodates wire sizes between 22 AWG and 18 AWG, making it versatile for various wiring applications.
Its grey, uninsulated design exposes the copper alloy contact plated with tin, enhancing conductivity and preventing corrosion. With a total length of 11.5 mm and thickness of 0.71 mm, it ensures sturdy mechanical and electrical performance.
The ring terminal features precise dimensions with an outer diameter of 6.45 mm and inner diameter of 3.79 mm to fit securely on studs and posts. Capable of withstanding temperatures from -55°C to 105°C, it can operate effectively in harsh industrial and electronic environments.
Constructed with a seamless barrel for efficient crimping, the Molex VersaKrimp technology supports strong vibration resistance and long-lasting durability in power and connector assemblies.
This product is especially useful in manufacturing, HVAC, electrical wiring, and laboratory instrumentation requiring dependable low-voltage connections. The ring terminal dimensions are optimized for compact wire terminal applications.
The seamless barrel design facilitates easy and secure crimp termination. Copper alloy with tin plating enhances electrical conductivity and corrosion resistance. Suitable for use in power connectors and electronic assemblies with specified wire gauges.
Uninsulated terminal offers direct connection options where insulation is not needed. Country of Origin is United States, confirming premium manufacturing standards and compliance. EnvMart offers this Molex 19323-0003 Ring Terminal for electrical professionals and industrial users requiring trusted wire terminal solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal supports a maximum wire size of 18 AWG and a minimum wire size of 22 AWG.
The ring terminal has an overall length of 11.5 mm, an outer ring diameter of 6.45 mm, an inner ring diameter of 3.79 mm, and a thickness of 0.71 mm.
It operates effectively within a temperature range of -55°C to 105°C, making it suitable for various environments.
The contact material is a copper alloy, which is plated with tin to enhance conductivity and corrosion resistance.
No, this model is uninsulated, allowing for direct connections in electrical circuits where insulation is not required.
This terminal is designed for an M3.5 stud size, ensuring a secure fit on compatible studs.
It is ideal for use in industrial, electronic, and power connector applications that require reliable ring connectors.
The thickness of this ring terminal is 0.71 mm.
The seamless barrel design facilitates easy and secure crimp termination, enhancing the mechanical connection.
This product is manufactured in the United States, ensuring compliance with high-quality standards.
The minimum wire size supported by this terminal is 0.5 mm².
The outer ring diameter of this terminal is 6.45 mm.
