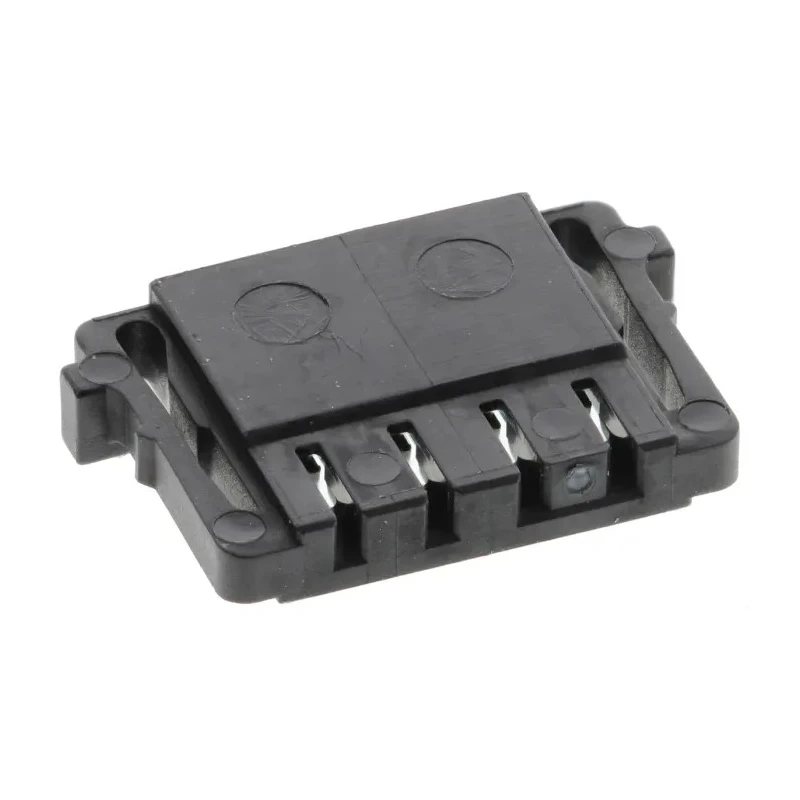

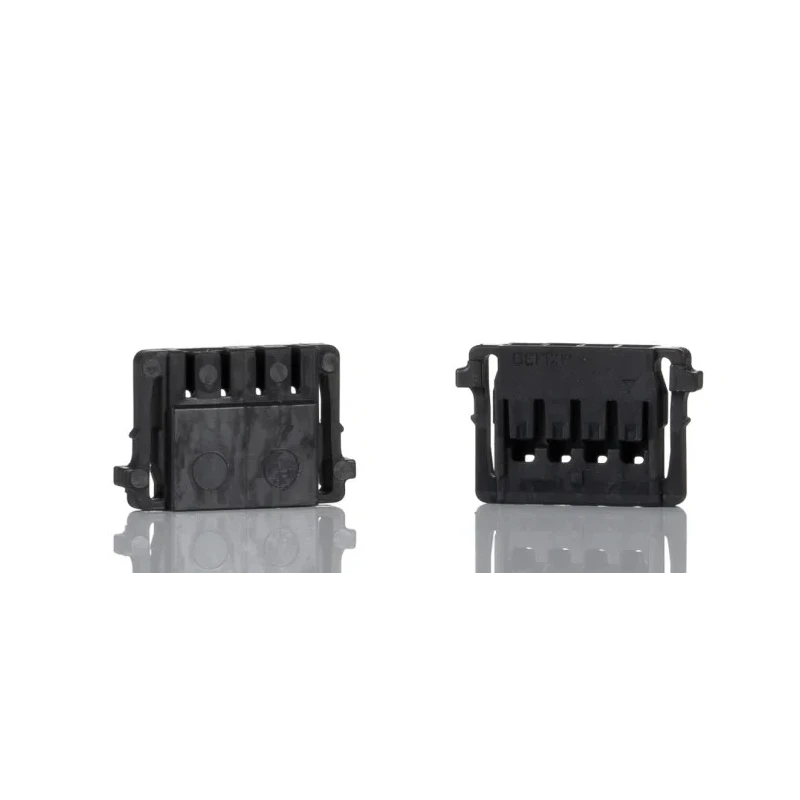

Molex Pico-Lock Female Connector Housing 1.5 mm Pitch 4 Way 1 Row Straight 504051-0401

Molex 504051-0401 is a high-quality Pico-Lock Female Connector Housing with 1.5 mm pitch and 4-way 1-row straight layout. It offers a reliable solution for cable-mounted SMT wire-to-board connections with a focus on compactness, security, and durability.

Constructed from high-temperature thermoplastic material, this housing operates safely within a temperature range of -25°C to +85°C, suitable for various industrial environments. The connector's polarized-to-mating design ensures alignment accuracy and prevents damage caused by incorrect connections.

The integrated lock-to-mating feature maintains a robust grip to withstand vibrations, making it ideal for HVAC systems, robotics, and electrical engineering sectors where reliability is critical. Its compact external dimensions of 9.95 mm length, 1.92 mm width, and 6.4 mm depth enable use in miniature PCB assemblies with limited space.

The Molex Pico-Lock 504051 Series includes multiple assurances for mechanical stability such as top friction locks and wide solder tabs that shape over the housing. Visual mating confirmations, polarization ribs, and fool-proof mating slots further enhance usability and reliability. Additionally, the housing meets RoHS and low-halogen compliance requirements supporting environmental safety.

High-temperature thermoplastic construction ensures durability. Operating temperature range from -25°C to +85°C. 4-position single-row contact arrangement for multiple circuits. Compact size ideal for space-constrained PCB designs.

Positive locking and polarization to avoid misalignment. Suitable for HVAC, robotics, and electrical engineering applications. Environmental compliance with RoHS and low halogen standards. Mechanical stability enhanced by locking mechanisms and solder tab design.

Visual and physical mating confirmations improve assembly accuracy.

The Molex 504051-0401 housing is designed to be used with Molex 1.5 mm pitch Pico-Lock 504052 Series crimp terminals, allowing seamless integration into wire-to-board connection systems. This product supports efficient and secure electrical circuit assemblies in industrial and commercial environments.
