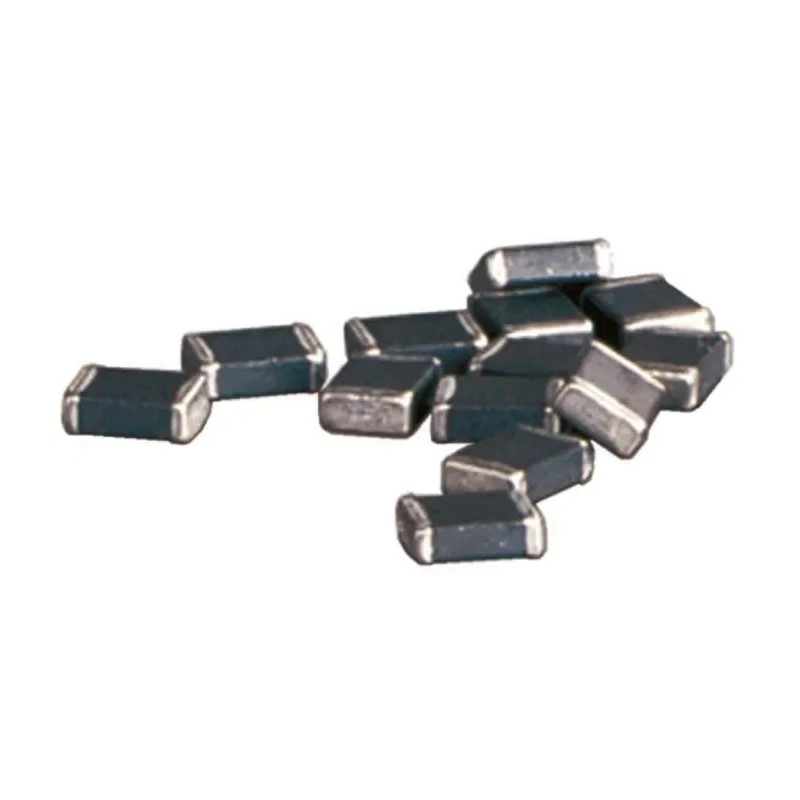

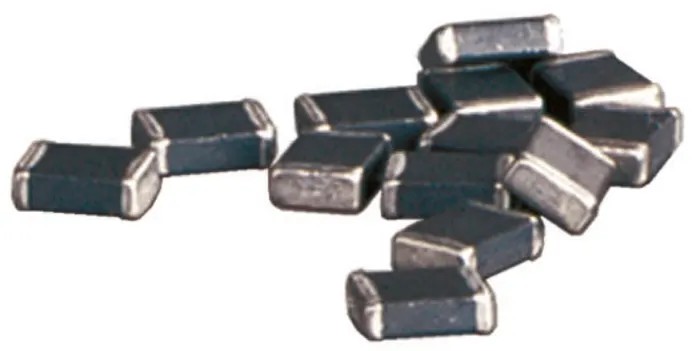

Wurth Elektronik WE-CBF HF 0402 Unshielded Multilayer Surface Mount Inductor with Ferrite Core 500mA 742843122
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.5mm |
| Length | 1mm |
| Depth | 0.5mm |
| Packaging | Tape & Reel |
| Series | WE-CBF HF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | RoHS |
| Package/Case | 0402 |
| Maximum DC Current | 500mA |
| Maximum DC Resistance | 380mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
| Fast data lines | CPU, highspeed bus systems, HDD |
Key Features

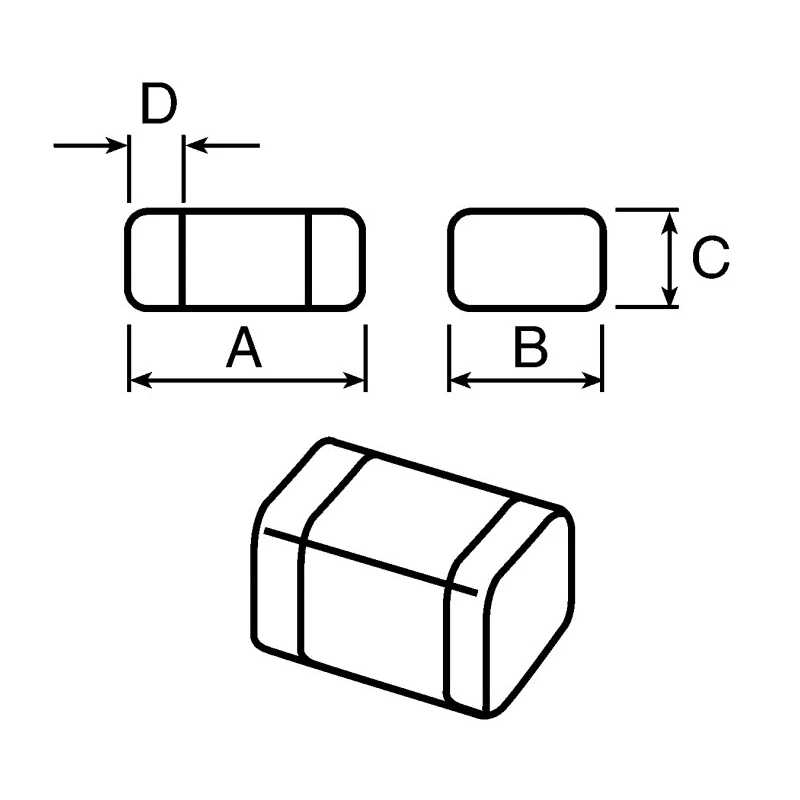

- This multilayer inductor has a 0402 package size with a length of 1mm and height and depth of 0.5mm.
- The inductor supports a maximum DC current of 500mA with a low maximum DC resistance of 380mΩ.
- It features an inductance tolerance of ±25% and complies with AEC-Q200 automotive standards.
- The component operates reliably across a temperature range of -55°C to 125°C and is RoHS compliant.
- Designed for high-speed data lines such as CPU buses and hard disk drives, it offers excellent anti-EMI properties.
- The WE-CBF HF series provides triple the impedance at 1GHz compared to the standard WE-CBF series.
- Packaging is provided in tape and reel format, suited for automated assembly processes.
Product Description
Wurth Elektronik 742843122 WE-CBF HF 0402 unshielded multilayer surface mount inductor with a ferrite core is a compact and high-performance component engineered for suppression of high-frequency signals in intricate electronic circuits.
This inductor features a multilayer construction with a ferrite core material, ensuring low DC resistance of 380 milliohms and a maximum DC current capacity of 500mA. Its compact 0402 package (1mm length x 0.5mm height x 0.5mm depth) allows for efficient surface mounting in densely populated printed circuit boards.
The product is designed to operate reliably in harsh automotive environments, conforming to AEC-Q200 standards, and supporting a wide operating temperature range from -55°C to 125°C. The inductance tolerance is ±25%, suitable for applications requiring stable performance under varying conditions.
Key applications include high-speed data lines such as CPU interfaces, high-speed bus systems, and hard disk drives, where suppression of electromagnetic interference is critical. Compared with the standard WE-CBF series, this high-frequency version provides three times greater impedance at 1 GHz, enhancing EMI suppression efficiency.
Provided in tape and reel packaging, this inductor is ideal for automated surface mount technology assembly lines, improving manufacturing throughput and consistency. This multilayer inductor uses a ferrite core for effective high-frequency performance.
The 0402 package size enables compact PCB designs with minimal footprint. It supports a maximum DC current of 500mA with low DC resistance to minimize power loss. Compliance with AEC-Q200 automotive standard ensures reliability in critical applications.
Suitable for high-speed data line EMI suppression such as CPUs and hard drives. Operates over a wide temperature range from -55°C to 125°C. Manufactured in China and RoHS compliant. This component is widely used in electronics, automotive, communications, and computing industries for electromagnetic interference management in sensitive circuits.
Explore more Surface Mount Inductors and other electronic components on EnvMart to suit your industrial and manufacturing needs.
