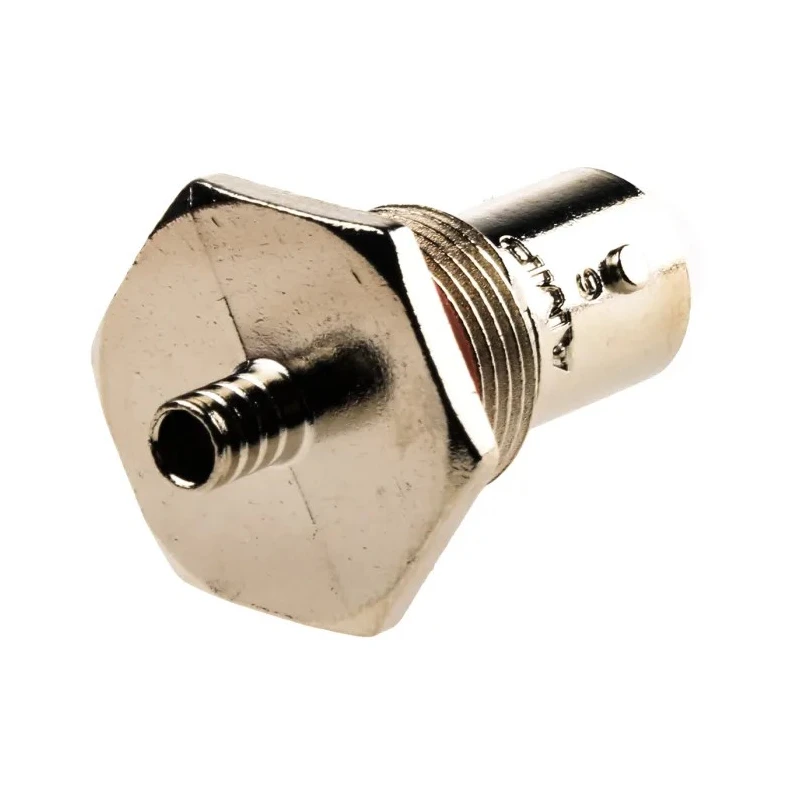

TE Connectivity BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body Crimp 5228980-7
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG-174U, RG188/U, RG316/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Panel mount type with straight body orientation for easy installation.
- Compatible with RG-174U, RG188/U, and RG316/U cables.
- Terminated via crimp method ensuring secure connection.
- Nickel plated brass body for durable corrosion resistance.
- Gold over nickel plated beryllium copper contact for excellent conductivity.
- Operates reliably in temperatures from -55°C to 85°C.
- Supports operating frequency up to 4 GHz.

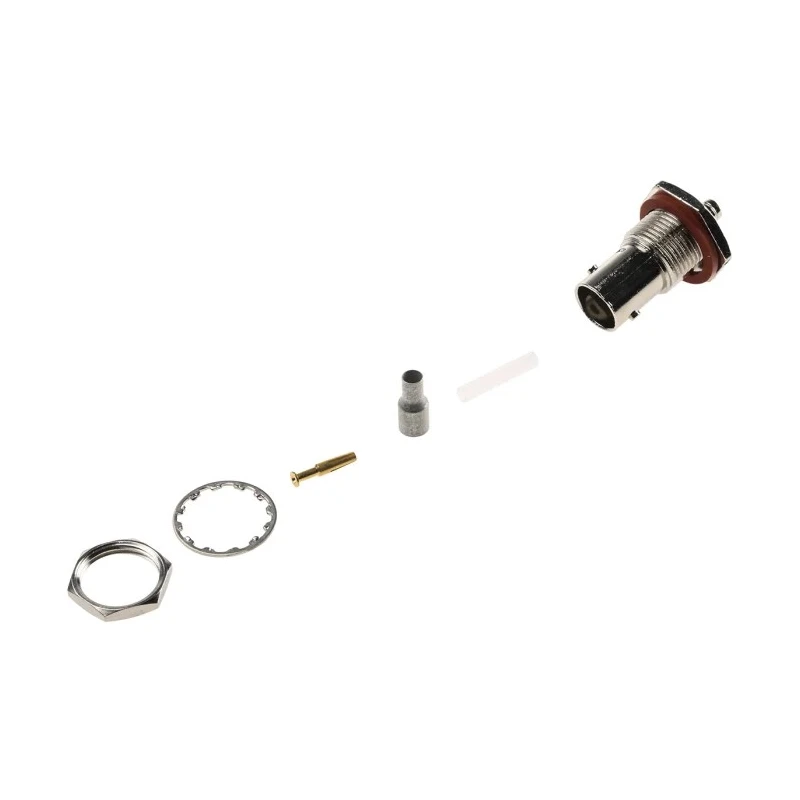

- Includes bulkhead mounting with jam nut, lockwasher, and gasket.
Product Description
TE Connectivity 5228980-7 BNC Series Coaxial Connector is a high-quality panel mount female coaxial connector engineered for RF applications requiring 50 Ω impedance.
This connector features a straight body crimp termination method and is compatible with cables such as RG-174U, RG188/U, and RG316/U. Its nickel plated brass body offers robust mechanical strength and corrosion resistance, while the contact is constructed from gold plated beryllium copper for superior electrical performance.
Designed for operation in harsh environments, it withstands temperatures ranging from -55°C to 85°C and supports frequencies up to 4 GHz, making it suitable for telecommunications, networking, and electronic test equipment.
The panel mount design includes a bulkhead with jam nut, lockwasher, and gasket for secure and reliable installation. The female connector with normal polarity ensures standard interfacing with male counterparts.
Applications include industrial electronics, communication systems, laboratory equipment, and infrastructure installations requiring high fidelity signal transmission. Panel mount female BNC coaxial connector. Nickel plated brass body with gold over nickel plated contact.
Crimp termination compatible with multiple coaxial cable types. Operating frequency up to 4 GHz and temperature range -55°C to 85°C. Bulkhead mounting with secure fastening hardware. Ideal for RF, electronic components, and telecommunications.
Explore more Coaxial Connectors and related components at EnvMart for your industrial and laboratory connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, making it suitable for various RF applications.
It is compatible with RG-174U, RG188/U, and RG316/U coaxial cables, allowing for versatile connectivity options.
The connector operates reliably in temperatures ranging from -55°C to 85°C, suitable for harsh environments.
The body is made of nickel plated brass for corrosion resistance, while the contact is gold over nickel plated beryllium copper for excellent conductivity.
It uses a crimp termination method, ensuring a secure connection with compatible coaxial cables.
This model features a panel mount design, which includes bulkhead mounting with a jam nut, lockwasher, and gasket for secure installation.
The connector has an impedance of 50 Ω, which is standard for RF applications.
This is a female connector, designed for standard interfacing with male counterparts.
The connector features a straight body orientation, facilitating easy installation.
The country of origin for this connector is India.
It is suitable for use in industrial electronics, communication systems, laboratory equipment, and infrastructure installations requiring high fidelity signal transmission.
The body is nickel plated, providing corrosion resistance and mechanical strength.
