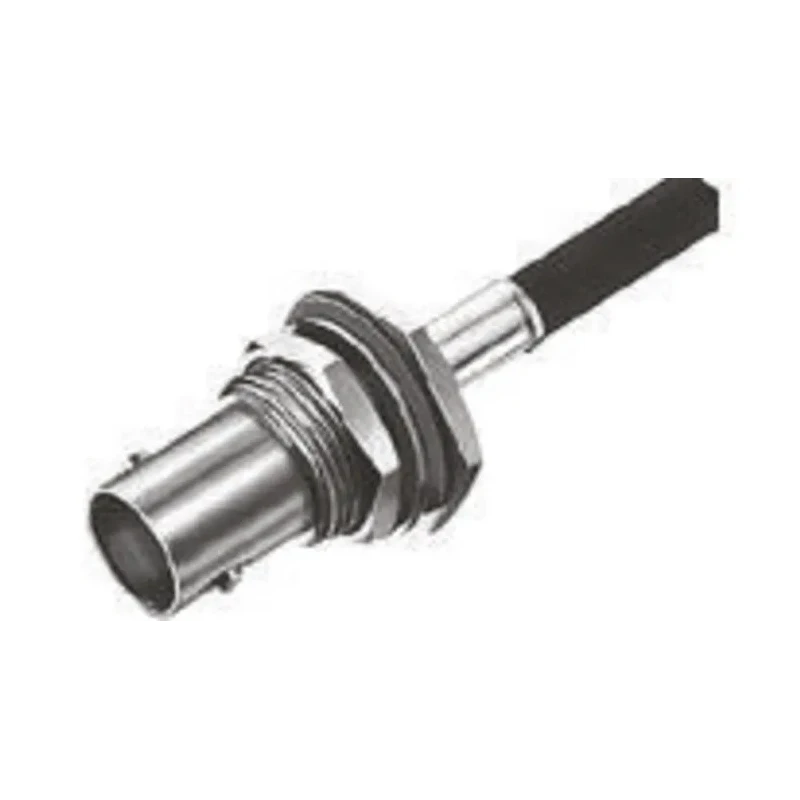

TE Connectivity BNC Series Coaxial Connector Panel Mount Female, 75 Ω, Straight Body Crimp 1-1337435-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 2GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG140/U, RG210/U, RG59B/U, RG62A/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- High-quality brass contact with gold plating ensures excellent conductivity and corrosion resistance.
- Nickel-plated body provides durability and protection against environmental factors.
- Supports cable types RG140/U, RG210/U, RG59B/U, and RG62A/U for versatile connectivity.
- Suitable for operating temperatures from -65°C to 165°C, ensuring reliable performance in harsh conditions.
- Standard size with bulkhead mounting facilitates secure panel installation.
- Designed with normal polarity and crimp termination for secure cable connection.
- Ideal for use in electronic components, power, and RF coaxial connectors applications.
Product Description
TE Connectivity 1-1337435-0 BNC Series Coaxial Connector Panel Mount Female model offers superior performance for RF coaxial connections in industrial and electronic applications. This connector features a 75 Ω impedance and a straight body design optimized for precision signal transmission up to 2 GHz frequency range.
The connector’s brass contacts with gold plating guarantee excellent electrical conductivity and resistance to corrosion, while the nickel-plated body enhances durability and environmental protection. It supports several common coaxial cable types including RG140/U, RG210/U, RG59B/U, and RG62A/U.
Operating within a broad temperature range of -65°C to 165°C, this connector is built to withstand extreme environments, making it suitable for various industrial, laboratory, and manufacturing applications where reliable RF connections are critical.
Mounting is facilitated via a bulkhead panel mount method, ensuring stable and secure installation in electronic equipment assemblies. The crimp termination type ensures a firm and reliable cable connection suitable for high-frequency signals.
High-quality brass contacts with gold plating provide superior conductivity. Durable nickel-plated body for enhanced corrosion resistance. Supports multiple coaxial cable types for versatile applications. Wide operating temperature range ensures performance under harsh conditions.
Panel mount design with bulkhead for secure installation. Crimp termination and normal polarity for reliable connection integrity.
This coaxial connector is suitable for use in telecommunications, industrial equipment, HVAC systems, aerospace electronics, and other sectors requiring stable RF signal connections. Its robust construction and precise specifications make it a dependable choice for engineers and technicians.
Explore the complete range of TE Connectivity RF Coaxial Connectors at EnvMart for your specialized electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 2 GHz, making it suitable for high-frequency signal transmission.
It supports several coaxial cable types including RG140/U, RG210/U, RG59B/U, and RG62A/U for versatile connectivity.
This connector can operate within a temperature range of -65°C to 165°C, ensuring reliable performance in extreme conditions.
The contact material is brass, which is plated with gold to ensure excellent electrical conductivity and corrosion resistance.
It features a crimp termination type, providing a secure and reliable connection for high-frequency signals.
The impedance of this connector is 75 Ω, which is standard for many RF applications.
The body of this connector is nickel-plated, enhancing its durability and protection against environmental factors.
This model utilizes a panel mount design, allowing for secure installation in electronic equipment assemblies.
It is designed with normal polarity, ensuring compatibility with standard RF connections.
The country of origin for this model is India.
It is suitable for use in telecommunications, industrial equipment, HVAC systems, and aerospace electronics, among other sectors requiring stable RF signal connections.
This connector is classified as a standard size, facilitating compatibility with various installations.
