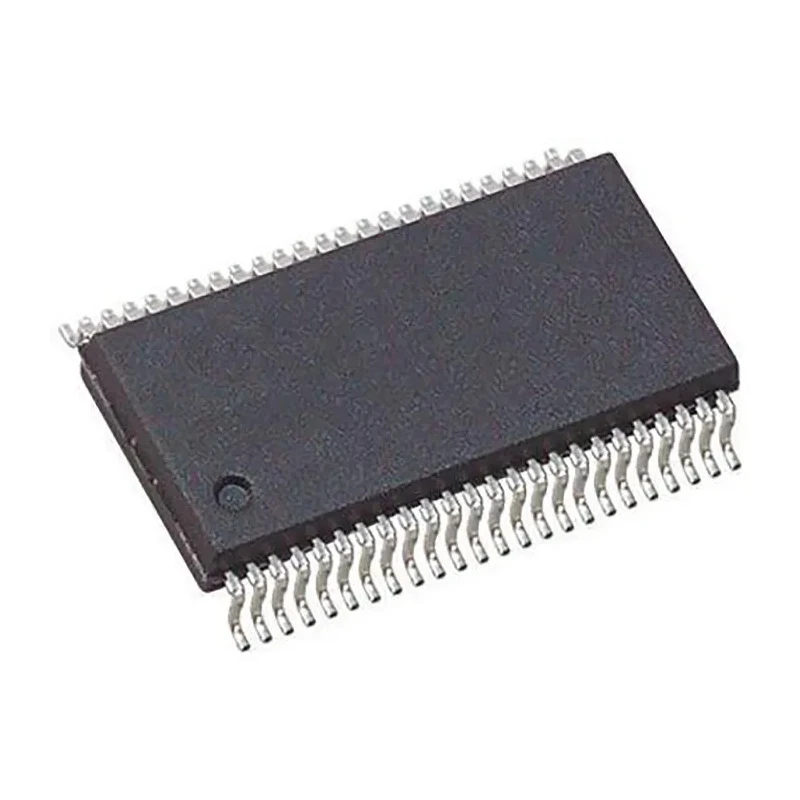

Nexperia 16-Bit Non-Inverting TTL Bus Transceiver, 48-Pin TSSOP, 2.7-3.6V Supply 74LVT16245BDGG,118

The Nexperia 74LVT16245BDGG,118 is a high-performance 16-bit non-inverting bus transceiver IC designed for electronic applications requiring efficient data transfer and bus interfacing. Supplied in a 48-pin TSSOP surface mount package, it operates at a supply voltage range of 2.7 to 3.6 volts, leveraging low-voltage BiCMOS technology to deliver low power consumption and high switching speeds.

This bus transceiver accommodates 16 channels, supports TTL input and output levels, and features non-inverting polarity with a three-state output type to facilitate bus sharing without signal contention. Its maximum propagation delay time of 3.3 nanoseconds at the specified load capacitance ensures fast data transmission suitable for advanced digital systems.

Physically compact, the device measures 12.6 mm in length and 1.05 mm in height, making it ideal for dense PCB layouts in embedded, industrial, and communication equipment. It sustains reliable operation across a wide temperature range from -40°C to 85°C, catering to harsh environmental conditions commonly encountered in industrial and automotive electronics.

This component provides a maximum high-level output current of -32mA and a low-level output current of 64mA, enabling robust driving capabilities for interfacing with multiple logic devices. Its surface mount technology package supports automated assembly lines and high-volume manufacturing.

Typical use cases include industrial controls, digital data buses, automotive communication interfaces, embedded systems, and other electronic equipment where reliable and fast bus transceiver functionality is critical.

Features low-voltage BiCMOS technology for efficient logic performance. Operates with LVTTL/TTL input compatibility and TTL output levels. Has a maximum propagation delay time of 3.3ns at CL for fast signal transmission.

Supports 16 channels with non-inverting polarity and 3-state output type. Compact surface mount TSSOP package with 48 pins and dimensions of 12.6mm length and 1.05mm height. Wide operating temperature range from -40°C to 85°C suitable for industrial applications.

Maximum high level output current of -32mA and low level output current of 64mA. Designed for use in logic IC bus transceiver applications requiring reliable data communication. Explore the range of semiconductor Bus Transceivers and logic ICs in the EnvMart catalog for comprehensive solutions meeting your electronic design needs.
