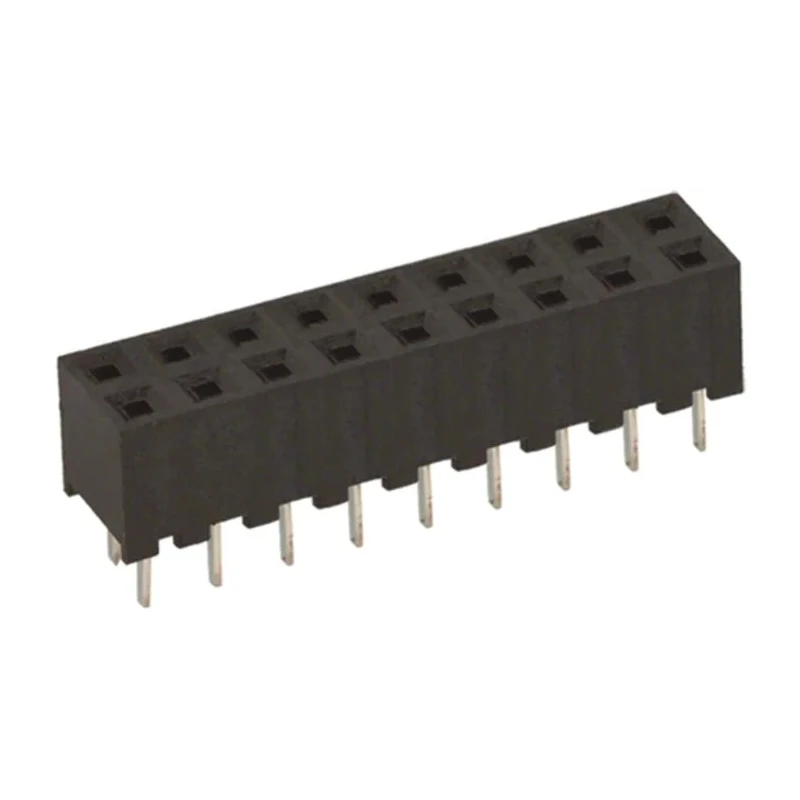

Hirose A3C Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2 mm Pitch, 12A, 200V A3C-18DA-2DSA(71)

Free Delivery in India | Lowest Global Shipping Charges

Hirose A3C Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2 mm Pitch, 12A, 200V A3C-18DA-2DSA(71)

Name: Hirose A3C Series Straight Through Hole PCB Socket, 18-Contact, 2 Row, 2 mm Pitch, 12A, 200V A3C-18DA-2DSA(71)
Brand: Hirose
SKU: 369132
Price: 2.28 USD
Availability: InStock



Category PCB Socket Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	200V
Brand	Hirose
Orientation	Straight
Current	12A
Model	A3C-18DA-2DSA(71)
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	A3C
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Wire-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	18
Contact Gender	Female
Stacking Height	5.1mm

Key Features

Miniature 2 mm pitch through-hole socket suitable for high-density PCB applications.
Provides 18 female contacts arranged in 2 rows for versatile connectivity.
Constructed with bronze contacts plated in gold for enhanced conductivity and corrosion resistance.
Polybutylene terephthalate housing ensures durability and electrical insulation.
Rated for continuous current of 12A and voltage of 200V AC, suitable for demanding electronic environments.
Operates reliably within a temperature range of -55°C to +85°C for robust performance.
Lead length of 3 mm ensures secure soldering connections to the PCB.
Straight orientation and through-hole mounting provide stable mechanical fixation.

Product Description

Hirose A3C-18DA-2DSA(71) is a miniature 2 mm pitch straight through-hole PCB socket designed by Hirose for industrial and commercial electronic applications. This 18-contact, 2 row socket is rated for 12A current and 200V voltage, ideally suited for wire-to-board connections requiring reliability and precision.

Manufactured using polybutylene terephthalate (PBT), the housing offers high durability, electrical insulation, and resistance to environmental factors. The contacts are made from bronze, plated in gold to ensure optimal conductivity and long service life.

The socket features a stacking height of 5.1 mm and a lead length of 3 mm for secure solder mounting on PCB boards. It operates under a broad temperature range from -55°C to +85°C, making it suitable for harsh industrial environments.

This connector is widely used in video and communication equipment, test rigs, and other electronics requiring high-density, miniature yet robust connection solutions. The straight orientation and through-hole mount type provide mechanical stability and ease of assembly in automated production lines.

Miniature 2 mm pitch through-hole design supports high-density PCB mounting. Eighteen female contacts arranged in two rows for diverse wiring needs. Constructed with bronze contacts and gold plating for durability and conductivity.

Polybutylene terephthalate housing for electrical insulation and mechanical strength. Rated for 12A current and 200V AC voltage. Operating temperature range from -55°C to 85°C ensures performance in varied environments. 3 mm lead length for reliable solder connections.

Straight orientation and through-hole mounting for mechanical stability. Compact stacking height of 5.1 mm supports space-efficient PCB designs. Perfect for industrial, laboratory, communications, and test equipment applications.
