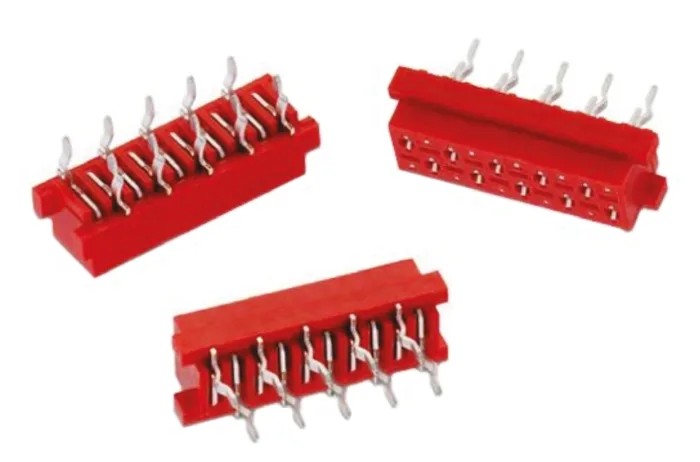

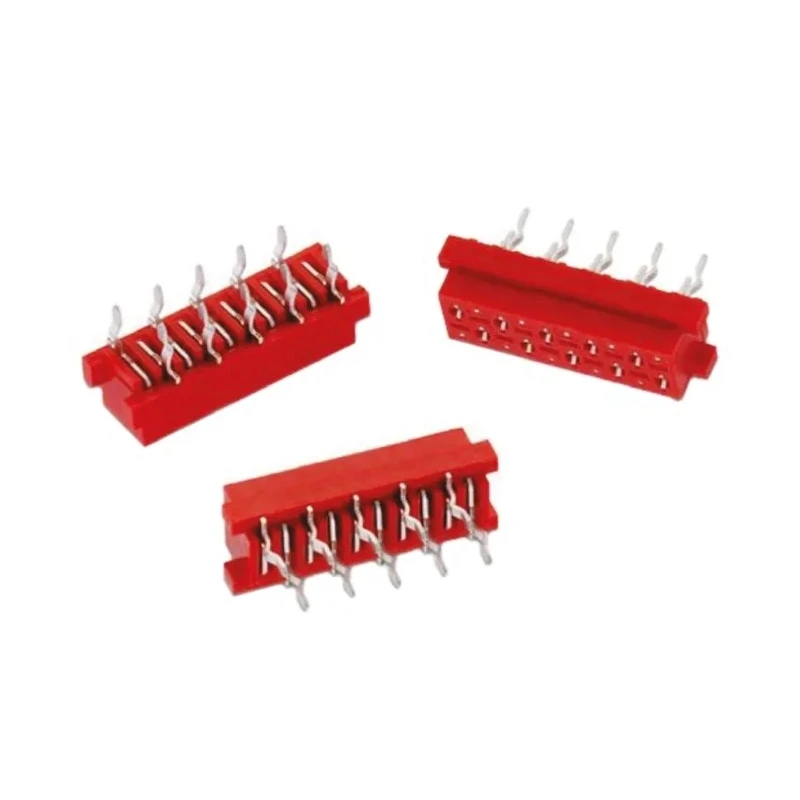

Wurth Elektronik PCB Socket 12-Contact 2 Row 2.54 mm Pitch Through Hole Mount 100V 1.5A 690367181272

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik PCB Socket 12-Contact 2 Row 2.54 mm Pitch Through Hole Mount 100V 1.5A 690367181272

Name: Wurth Elektronik PCB Socket 12-Contact 2 Row 2.54 mm Pitch Through Hole Mount 100V 1.5A 690367181272
Brand: Wurth Elektronik
SKU: 367781
Price: 1.25 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	Wurth Elektronik
Orientation	Straight
Current	1.5A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Bronze
Series	6903
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Female
Connector System	Board-to-Board

Key Features

This PCB socket features 12 female contacts arranged in 2 rows.
The connector pitch is 2.54 mm, suitable for standard PCB layouts.
Contact material is bronze with gold plating for improved conductivity and corrosion resistance.
Housing is made of Polybutylene Terephthalate (PBT) providing UL94-V0 flame retardant properties.
Operates reliably between -40°C and 105°C operating temperatures.
Mount type is through-hole with a straight orientation for secure and stable connectivity.
Supports board-to-board connector system applications.
Compact and durable connector meeting industrial electronic component standards.

Product Description

Wurth Elektronik 690367181272 PCB Socket is a 12-contact, 2-row, straight through-hole connector designed for board-to-board applications. It features a 2.54 mm pitch and is rated for 1.5A current and 100V voltage, ensuring reliable electrical performance. The socket uses bronze contacts with gold plating to maximize conductivity and minimize corrosion.

The housing is constructed from flame-retardant Polybutylene Terephthalate (PBT), ensuring durability and safety with UL94-V0 certification. It operates efficiently within a temperature range of -40°C to 105°C, making it suitable for various industrial and electronic environments.

This Wurth Elektronik 6903 series socket provides robust mechanical stability through its through-hole mount and straight orientation, facilitating secure connections in compact PCB assemblies. The connector system supports board-to-board interfacing, widely used in industrial electronics, telecommunications, instrumentation, and manufacturing sectors.

With no specific standards or approvals indicated, this socket is ideal for general electronic manufacturing needs requiring a quality PCB connector with proven material and electrical specifications.

This PCB socket features 12 female contacts arranged in 2 rows. The connector pitch is 2.54 mm, suitable for standard PCB layouts. Contact material is bronze with gold plating for improved conductivity and corrosion resistance.

Housing is made of Polybutylene Terephthalate (PBT) providing UL94-V0 flame retardant properties. Operates reliably between -40°C and 105°C operating temperatures. Mount type is through-hole with a straight orientation for secure and stable connectivity.

Supports board-to-board connector system applications. Compact and durable connector meeting industrial electronic component standards. Manufactured to comply with high-quality electrical specifications, suitable for demanding environments.

This connector is highly suitable for industrial, laboratory, manufacturing, and commercial electronic applications requiring reliable PCB connections. Explore more products from Wurth Elektronik in the PCB Sockets category on EnvMart for complementary connectors and components.
