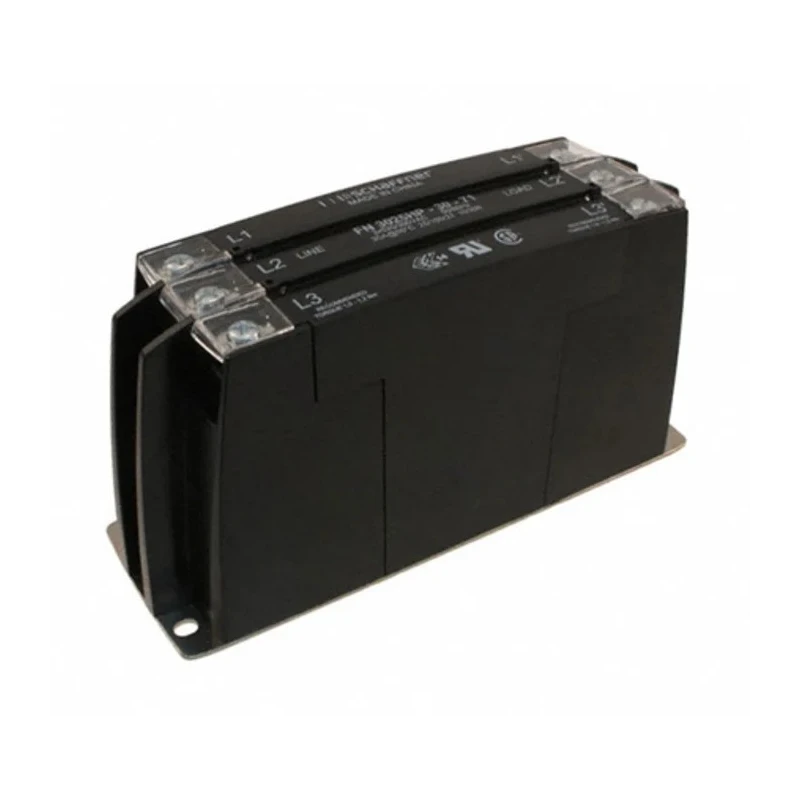

Schaffner 30 A 520V AC 60Hz Chassis Mount EMC Filter Screw Termination 3 Phase FN3025
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schaffner |
| Height | 78mm |
| Length | 150mm |
| Model | FN3025 |
| Depth | 50mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3025 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 30A |
| Number of Phases | 3 |
| Leakage Current | 2.5mA |
| Maximum Voltage | 520V ac |
| Termination Style | Screw |
| Power Loss | 7W |
Key Features
- The filter features a compact lightweight plastic enclosure for ease of installation.
- It includes a metal ground plate and hinged safety covers with embedded terminals.
- Designed for chassis or T35 DIN rail mounting with screw termination style.
- Operates effectively across temperatures from -25°C to 100°C with minimized leakage current of 2.5mA.
- Power loss under operation is approximately 7 watts.
- The filter complies with no specific certifications and is manufactured in China.
- Suitable for EMI suppression in industrial, electronic, and power management applications.
Product Description
Schaffner FN3025 model is a high-quality chassis mount EMC filter designed for industrial and electronic applications requiring power line filtering at 520V AC voltage and 60Hz operating frequency. It is rated for a maximum current of 30 amperes and is structured to support three-phase electrical systems with one stage filtering.
The filter assembly comes housed in a compact state-of-the-art lightweight plastic enclosure that incorporates a metal ground plate to ensure reliable grounding and enhanced safety. Its design includes hinged safety covers embedded with terminals that allow secure screw termination, providing robust electrical contacts suitable for chassis or T35 DIN rail mounting.
This EMC filter functions with a leakage current minimized to 2.5 milliamps and has an operational temperature range from -25°C to 100°C, making it reliable in varied environmental conditions. The power loss is approximately 7 watts, ensuring energy-efficient operation.
The physical dimensions of the unit are 150mm in length, 78mm in height, and 50mm in depth, enabling compatibility with compact chassis mount setups. It does not hold any special approval standards and is manufactured in China.
This filter is ideal for use in power line filtering applications in numerous sectors including industrial machinery, electronic instrumentation, manufacturing environments, and power distribution systems where EMI suppression and noise reduction are critical to reliable equipment performance.
The compact plastic enclosure facilitates easy integration into existing systems. Metal ground plate provides improved safety and grounding. Hinged safety covers with embedded terminals ensure secure connections. Supports chassis or T35 DIN rail mounting with screw termination.
Operates at temperatures from -25°C to 100°C with low leakage current. Rated for 30A maximum current at 520V AC and 60Hz frequency. Power loss is limited to 7 watts for efficiency. Explore the full range of Schaffner power line filters for industrial and electrical component needs at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This EMC filter is rated for a maximum current of 30 amperes.
It operates at a maximum voltage of 520V AC and a frequency of 60Hz.
The filter operates effectively across a temperature range from -25°C to 100°C.
The leakage current is minimized to 2.5 milliamps.
The dimensions are 150mm in length, 78mm in height, and 50mm in depth.
It is designed for chassis or T35 DIN rail mounting with a screw termination style.
The filter features a compact lightweight plastic enclosure and includes a metal ground plate.
The power loss under operation is approximately 7 watts.
This filter is structured to support one stage of filtering.
It is suitable for EMI suppression in industrial, electronic, and power management applications.
The filter complies with no specific certifications.
This EMC filter is manufactured in China.
