Nexperia High-Speed CMOS Logic Gate 1 2-Input NAND 5-Pin TSSOP 2-6V 74HC1G00GW,125

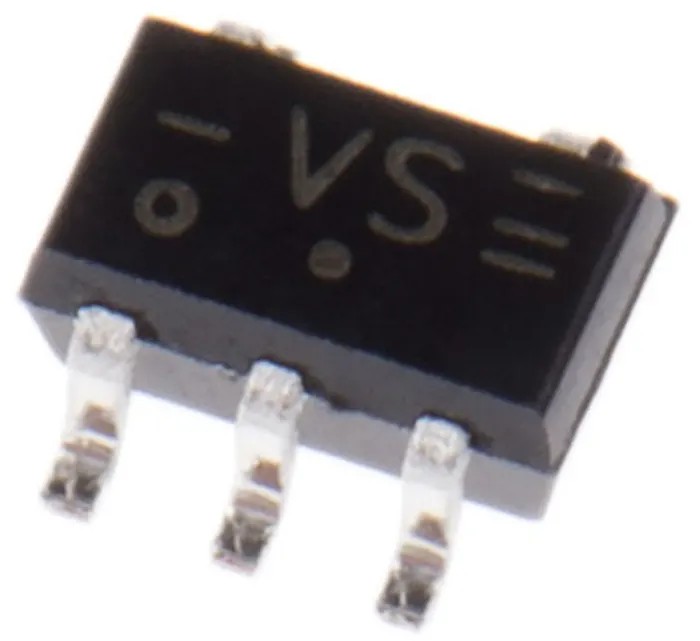

Nexperia 74HC1G00GW,125 is a high-speed CMOS NAND logic gate integrated circuit designed for digital electronic applications. It is housed in a 5-pin Thin Shrink Small Outline Package (TSSOP) suitable for surface mount technology (SMT), offering a compact footprint for modern circuit layouts.

This 1 gate device features 2 inputs with CMOS input and output compatibility, enabling seamless interfacing with other CMOS circuits typical in industrial, consumer electronics, and embedded systems.

Operating voltage ranges from 2V to 6V, making it versatile across various power configurations. The device reliably operates in extreme temperature conditions from -40°C to 125°C, fulfilling requirements for automotive, industrial, and commercial electronics.

The maximum propagation delay time of 23 nanoseconds ensures that it supports fast logic switching performance required in timing-sensitive digital systems. With a pin count of 5 and compact dimensions (2.25mm x 1mm), the logic gate is optimized for space-constrained PCB designs.

This Logic Gate performs the NAND function with 2 inputs per gate, ideal for various logic circuit designs. Surface mount TSSOP package facilitates automated assembly and efficient use of PCB area. Wide operating temperature range enables deployment in harsh environments.

CMOS logic family ensures low power consumption and high noise immunity. Compatible with other CMOS inputs and outputs for flexible circuit design.

Applications include industrial automation, consumer electronics, automotive digital controls, communication devices, and embedded logic solutions where reliable and compact NAND gates are required.
