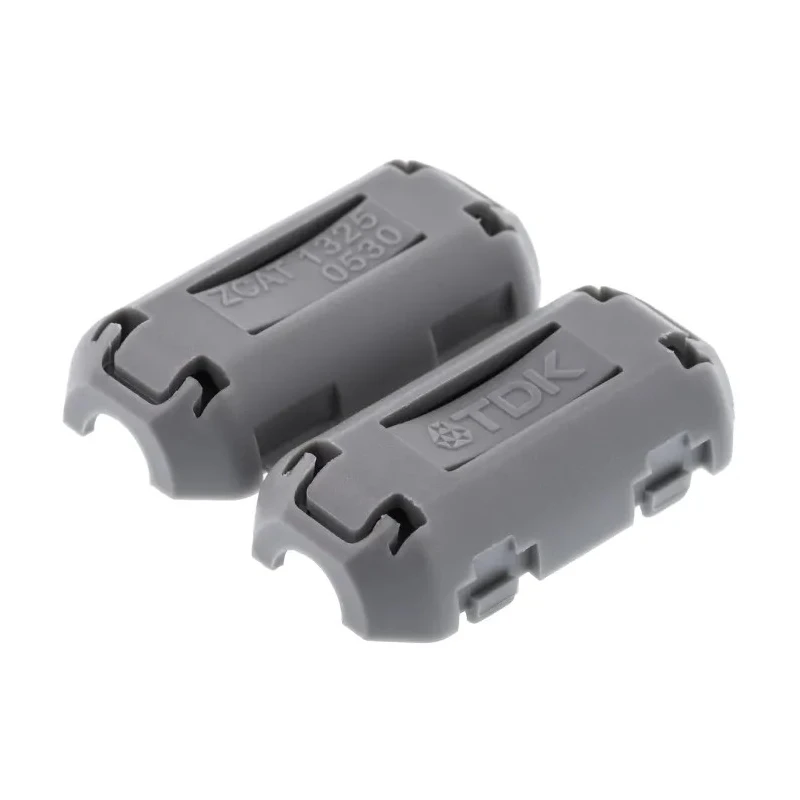

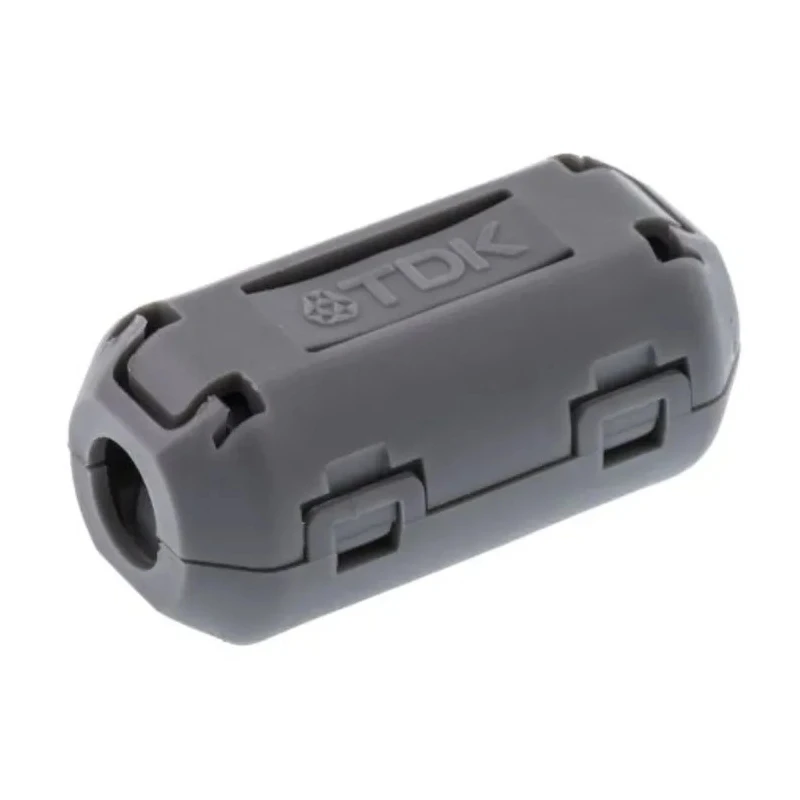

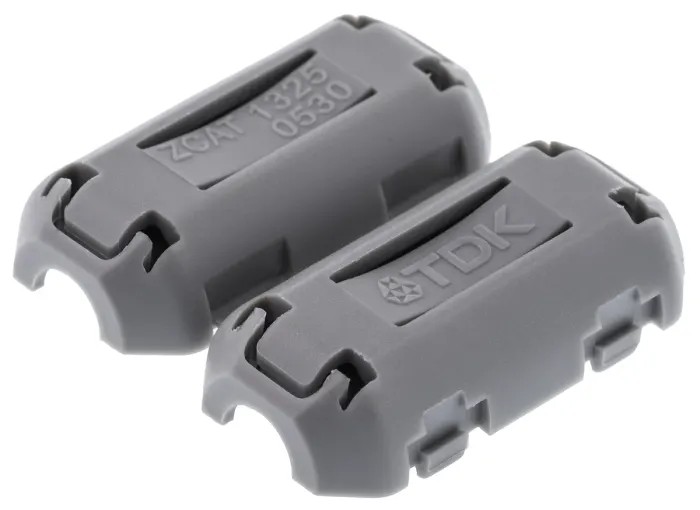

TDK Openable Ferrite Sleeve, Diameter 5 mm, Aperture 12.8 x 11.2 x 25 mm, Suppression Components ZCAT1325-0530A
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT1325-0530A |
| Series | ZCAT |
| Aperture diameter | 5mm |
| Sub Type | Ferrite Core |
| External Width | 25mm |
| External Depth | 12.8mm |
| External Height | 11.2mm |
| Standards/Approvals | REACH, RoHS |
| Impedance at 25 MHz | 50Ω |
| Number of Apertures | 1 |
| Impedance at 300 MHz | 100Ω |
| TDK Openable, Diameter 5 mm Ferrite Sleeve, Apertures | 1 12.8 mm 11.2 mm 25 mm, For Suppression Components |
| RS PRO Openable, Diameter 5 mm Ferrite Clamp, Apertures | 1 25.5 mm 11.8 mm 13 mm, For Monitor, Computer Peripherals,RS Stock No.: 123-2482Brand: RS PRO |
| Essentra Openable, Diameter 5 mm Ferrite Sleeve, Apertures | 1 14.3 mm 13.2 mm, For EMI SuppressionBrand: Essentra |
Key Features
- The sleeve features a snap-on plastic housing for easy installation and secure cable holding.
- Provides attenuation of electromagnetic interference (EMI) at frequencies from 25 MHz up to 500 MHz.
- Has a single aperture of 5 mm diameter for cable pass-through.
- Constructed from 30 Material ferrite core ensuring high absorption of high-frequency EMC noise.
- Complies with REACH and RoHS standards for environmental safety.
- Ideal for use in applications like personal computers, monitors, hard disk drives, and audio devices.
- Designed to counteract common mode EMC while preserving signal integrity.
- External dimensions are 12.8 mm depth, 25 mm width, and 11.2 mm height.
Product Description
TDK ZCAT1325-0530A is an openable ferrite sleeve with a diameter of 5 mm and aperture dimensions of 12.8 mm depth, 11.2 mm height, and 25 mm width, specifically engineered for suppression of electromagnetic interference in electronic components.

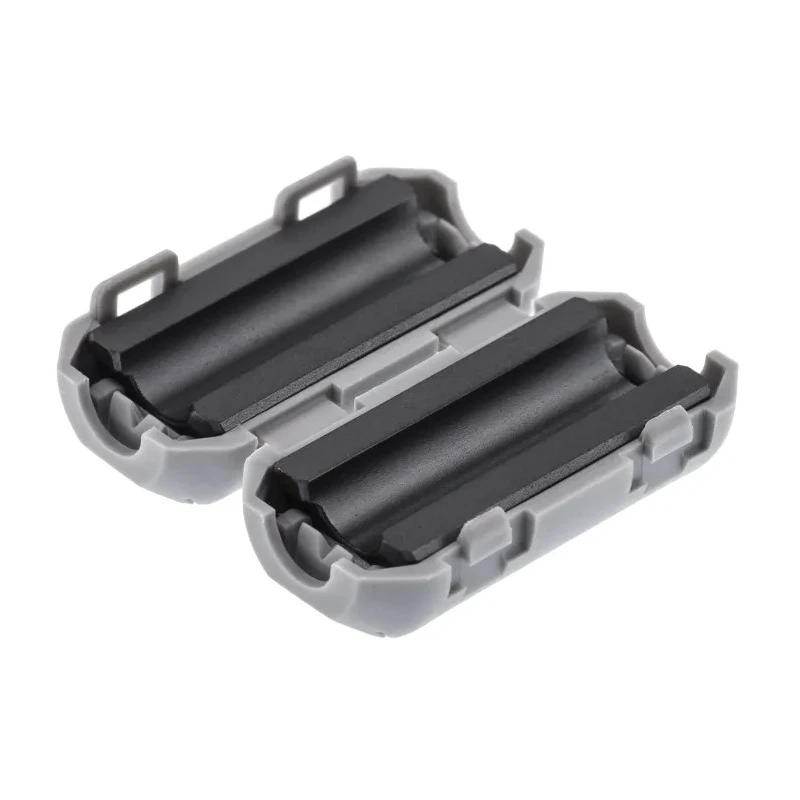

This product features a unique plastic snap housing that facilitates quick and convenient installation onto cables, ensuring a firm hold without slippage. The ferrite core material provides excellent high-frequency EMC absorption, making it highly effective in reducing common mode electromagnetic disturbances without compromising signal quality.
The sleeve is compliant with environmental standards REACH and RoHS, underscoring its suitability for industrial and commercial use.
Typical applications include use in personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video games, copiers, facsimiles, and other electronic equipment where EMI suppression is critical.
The external dimensioning of 12.8 mm depth by 25 mm width and 11.2 mm height allows for broad compatibility with cables requiring a 5 mm diameter aperture. The sleeve includes a snap-lock mechanism for secure and simple cable attachment.
Attenuation of EMI is effective across a frequency range from 25 MHz to 500 MHz. Constructed from high-quality 30 Material ferrite ensuring durability and performance. Designed for use in demanding industrial, office, and consumer electronics environments.
Facilitates noise reduction while maintaining operational signal integrity. Complies with both REACH and RoHS directives ensuring environmental compliance. Provides a reliable solution for suppression components in various electronic circuits.
This product is especially recommended for engineers and technicians working in EMC management across a wide spectrum of electronic and electrical manufacturing applications. For further selections, explore the Ferrite Sleeve category on EnvMart for additional compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides attenuation of electromagnetic interference (EMI) at frequencies from 25 MHz up to 500 MHz.
The external dimensions are 12.8 mm in depth, 25 mm in width, and 11.2 mm in height.
The aperture diameter is 5 mm, designed for cable pass-through.
It is constructed from 30 Material ferrite, which ensures high absorption of high-frequency EMC noise.
The snap-on plastic housing allows for easy installation and secure cable holding, ensuring a firm grip without slippage.
It complies with REACH and RoHS standards for environmental safety.
Typical applications include personal computers, monitors, hard disk drives, and audio devices, where EMI suppression is critical.
The impedance is 50Ω at 25 MHz and 100Ω at 300 MHz.
This model features a single aperture for cable pass-through.
The ferrite core provides excellent high-frequency EMC absorption, effectively reducing common mode electromagnetic disturbances without compromising signal quality.
It is manufactured in China.
It is designed to counteract common mode EMC while preserving signal integrity in various electronic circuits.
