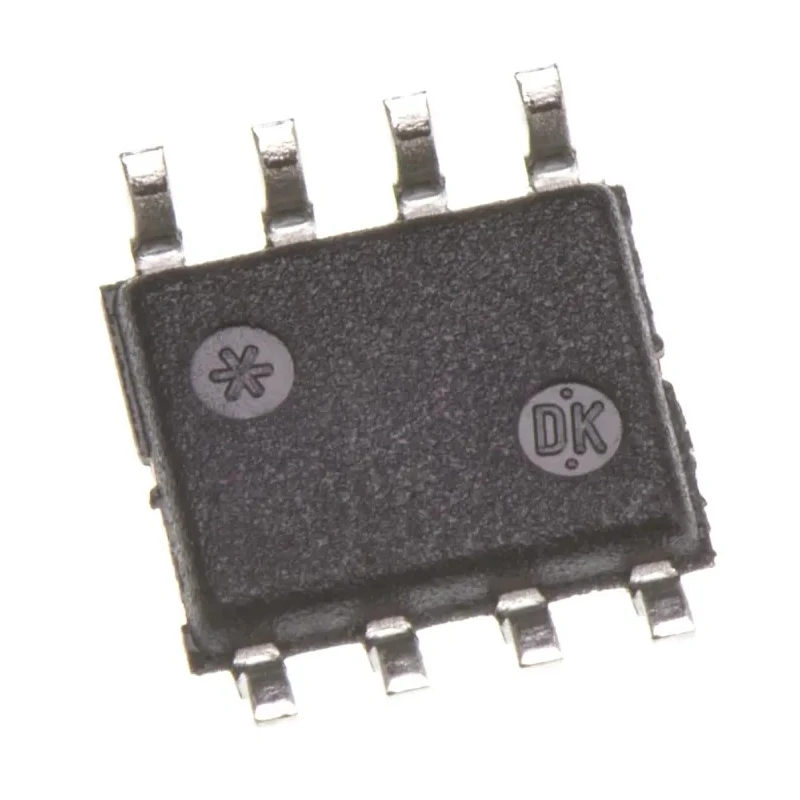

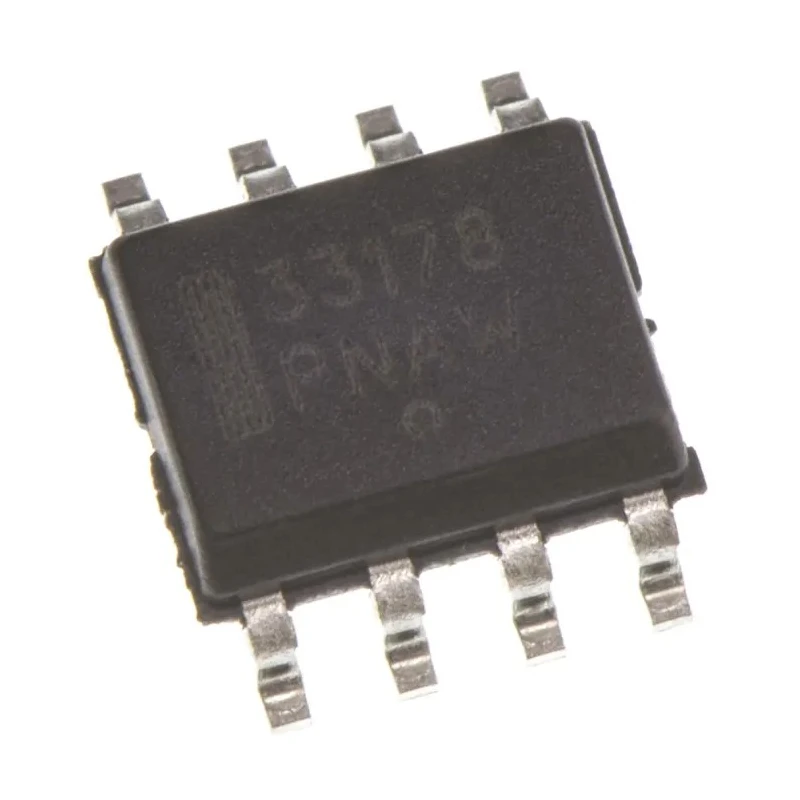

onsemi Operational Amplifier Dual Channel 5 MHz Gain Bandwidth, 8-Pin SOIC 36V MC33178DR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Operational Amplifier Dual Channel 5 MHz Gain Bandwidth, 8-Pin SOIC 36V MC33178DR2G

Name: onsemi Operational Amplifier Dual Channel 5 MHz Gain Bandwidth, 8-Pin SOIC 36V MC33178DR2G
Brand: onsemi
SKU: 368314
Price: 0.4 USD
Availability: InStock



Category Operational Amplifier Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	5mm
Model	MC33178DR2G
Width	4mm
Mount Type	Surface
Series	MC33178
Output Current	80mA
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	8
Maximum Supply Voltage	36V
Minimum Supply Voltage	1V
GBP - Gain Bandwidth Product	5MHz
Input Bias Current	500 nA
Vos - Input Offset Voltage	3 mV
Slew Rate	2V/μs
Input Offset Current	50 nA
Low Total Harmonic Distortion	0.0024% (@ 1 kHz, 600 W Load)
Low offset voltage	0.15 mV (Mean)
Dual Supply Operation	±2 V to ±18 V

Key Features

High gain bandwidth of 5 MHz suitable for audio and data signal processing.
Low power consumption with only 420 µA drain current per amplifier.
Dual channels support versatile applications in signal amplification.
Low input offset voltage of 0.15 mV mean ensures precision performance.
High slew rate of 2 V/µs for fast signal response.
Wide operating temperature range from -40°C to 85°C enables reliable industrial use.
Surface mount 8-pin SOIC package offers compact footprint.
Maximum output current of 80 mA suitable for demanding loads.

Product Description

onsemi MC33178DR2G is a dual channel, low power, low noise operational amplifier designed for high quality audio and data signal processing applications. It features a 5 MHz gain bandwidth product and low input offset voltage, making it ideal for precision amplification tasks.

This operational amplifier is housed in a compact 8-pin SOIC surface mount package that supports a wide supply voltage range up to 36 V and a wide temperature range from -40°C to 85°C, ensuring durability in industrial, consumer electronics, and automotive environments.

The device offers high output current capability of up to 80 mA and a high slew rate of 2 V/µs, facilitating rapid signal changes with minimal distortion. Its low total harmonic distortion further supports clear and accurate audio amplification.

The MC33178 series operates efficiently with a low drain current of 420 µA per amplifier, and features electrostatic discharge (ESD) clamps on inputs to protect against damage. Dual supply operation allows flexible voltage configurations between ±2 V and ±18 V.

Applications include industrial audio equipment, data acquisition systems, instrumentation amplifiers, and general-purpose signal conditioning circuits. High gain bandwidth of 5 MHz suitable for audio and data signal processing.

Low power consumption with only 420 µA drain current per amplifier. Dual channels support versatile applications in signal amplification. Low input offset voltage of 0.15 mV mean ensures precision performance. High slew rate of 2 V/µs for fast signal response.

Wide operating temperature range from -40°C to 85°C enables reliable industrial use. Surface mount 8-pin SOIC package offers compact footprint. Maximum output current of 80 mA suitable for demanding loads. Dual supply operation from ±2 V to ±18 V for flexible powering options.

Low total harmonic distortion of 0.0024% at 1 kHz for high fidelity signal. Explore the wide range of Operational Amplifiers and semiconductor components at EnvMart for industrial, laboratory, and manufacturing applications.
