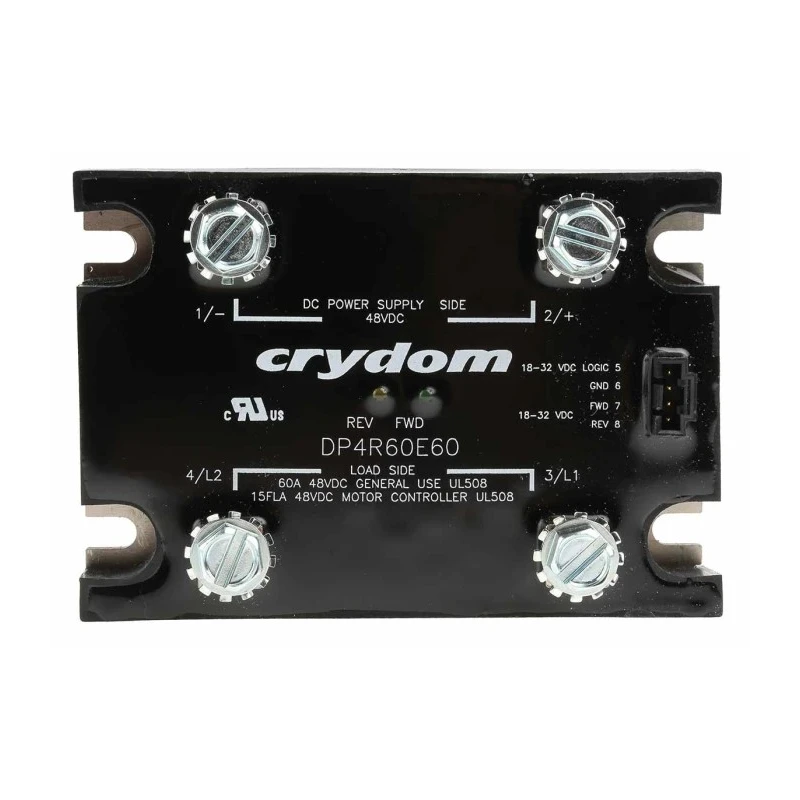

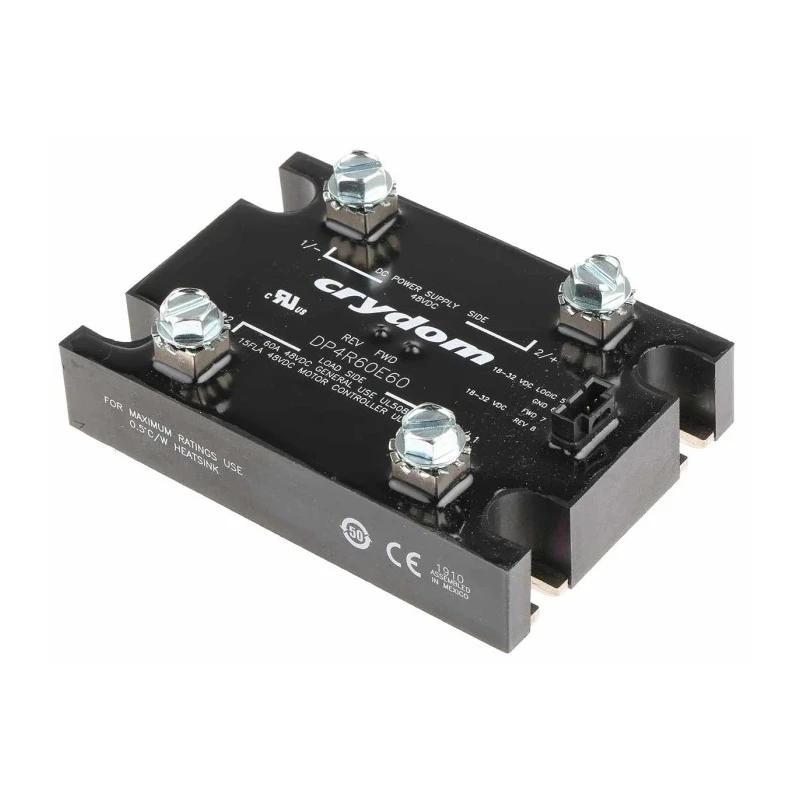

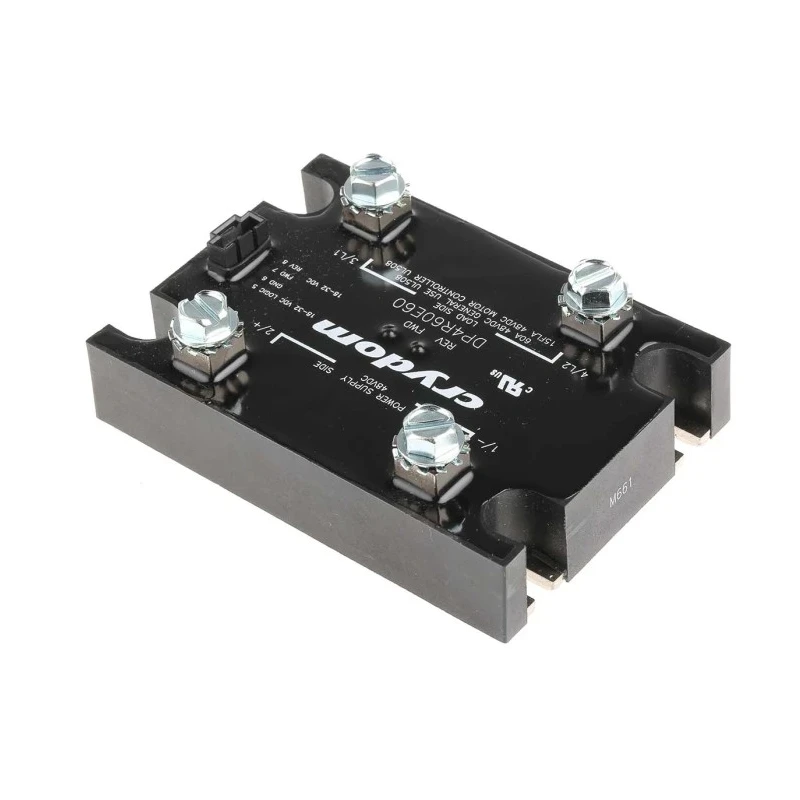

Crydom DP Series Solid State Relay, Panel Mount, 60 A Load, 48 V DC Load, 32 V DC Control DP4R60E60
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 20mm |
| Length | 104mm |
| Model | DP4R60E60 |
| IP Rating | IP20 |
| Width | 20mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | DP |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 3PST |
| Capacitance | 10pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | DC Switching |
| Maximum Load Current | 60A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 48V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 18V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 20μA |
| On State Resistance | 15Ω |
Key Features
- This relay supports a maximum load voltage of 48 V DC and a minimum load voltage of 1 V DC.
- The control voltage ranges between 18 V DC minimum and 32 V DC maximum.
- Equipped with a 3PST contact configuration for reliable switching.
- Features MOSFET output type with 15Ω on-state resistance ensuring efficient conduction.
- Panel mount type with screw terminal connections for secure installation.
- Compact dimensions of 104 mm length, 20 mm width, and 20 mm height.
- Operating temperature range from -30°C to 80°C suitable for harsh environments.
- Designed with IP20 rating providing basic protection against solid objects.
Product Description
The Crydom DP4R60E60 solid state relay from the DP Series is a high-performance, panel mount device designed for DC load switching applications up to 60 A and 48 V DC load voltage. It incorporates MOSFET output technology ensuring low on-state resistance of 15Ω and features a 3PST contact configuration for precise control.
Housed in a compact 104 x 20 x 20 mm panel mount package, this relay is built to withstand harsh operating conditions with a temperature range from -30°C to 80°C and an IP20 rating for protection against solid ingress. The screw terminal connections provide secure wiring installation.
The DP series relay employs four optically isolated low dissipation FET outputs configured in an H-Bridge, enabling easy polarity reversal, soft start and stop ramping, braking functions, and built-in forward/reverse interlock for operational safety. This ensures reliable and quiet switching for various industrial and automation control use cases.
Capacitance is minimal at 10 pF with an off-state leakage current of 20 μA, making this relay suitable for sensitive DC switching operations. It is RoHS compliant and made in Mexico, reflecting quality and environmental standards.
The relay’s panel mount design simplifies integration into control panels and automation systems. Soft start/ramp up and soft stop/ramp down functions ensure reduced electrical stress in loads. LED status indicators (not included in spec but typical for DP series) aid operational diagnostics.
Ideal for use in industrial machinery, automotive control systems, and electrical panels. Compatible with signal conditioning and relay control setups requiring DC switching. Explore the Crydom brand and similar Solid State Relay products in EnvMart’s electronics and electrical components category for reliable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 60 A.
The control voltage range is from 18 V DC minimum to 32 V DC maximum.
This model features a MOSFET output type.
The operating temperature range is from -30°C to 80°C.
The dimensions of the relay are 104 mm in length, 20 mm in width, and 20 mm in height.
It uses screw terminal connections for secure installation.
The IP rating of this relay is IP20, providing basic protection against solid objects.
The on-state resistance is 15Ω.
The minimum load voltage is 1 V DC and the maximum load voltage is 48 V DC.
The capacitance is minimal at 10 pF.
It features a 3PST contact configuration for reliable switching.
Yes, this relay is RoHS compliant, reflecting quality and environmental standards.
