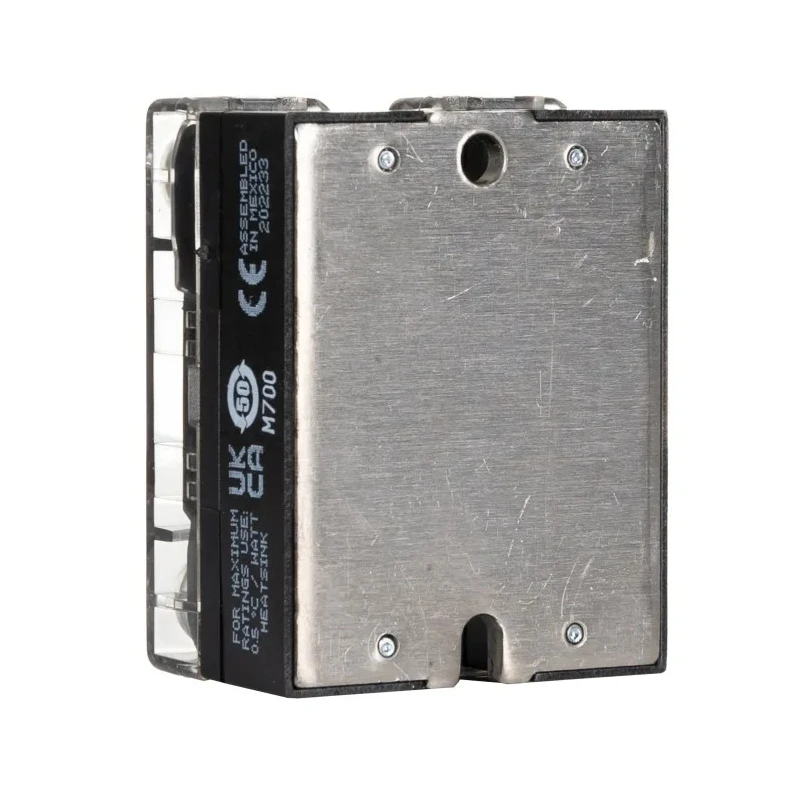

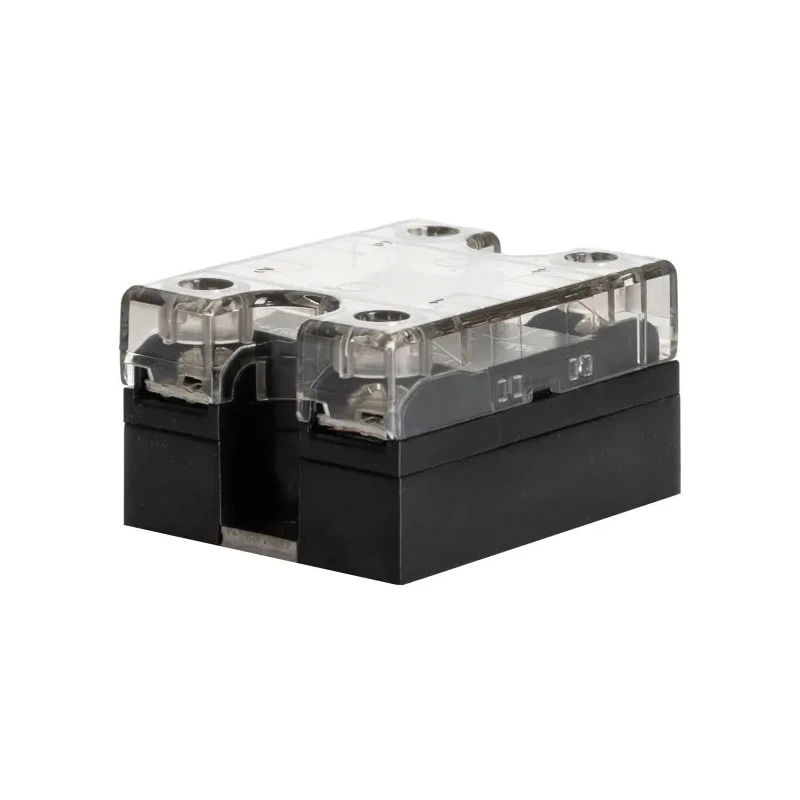

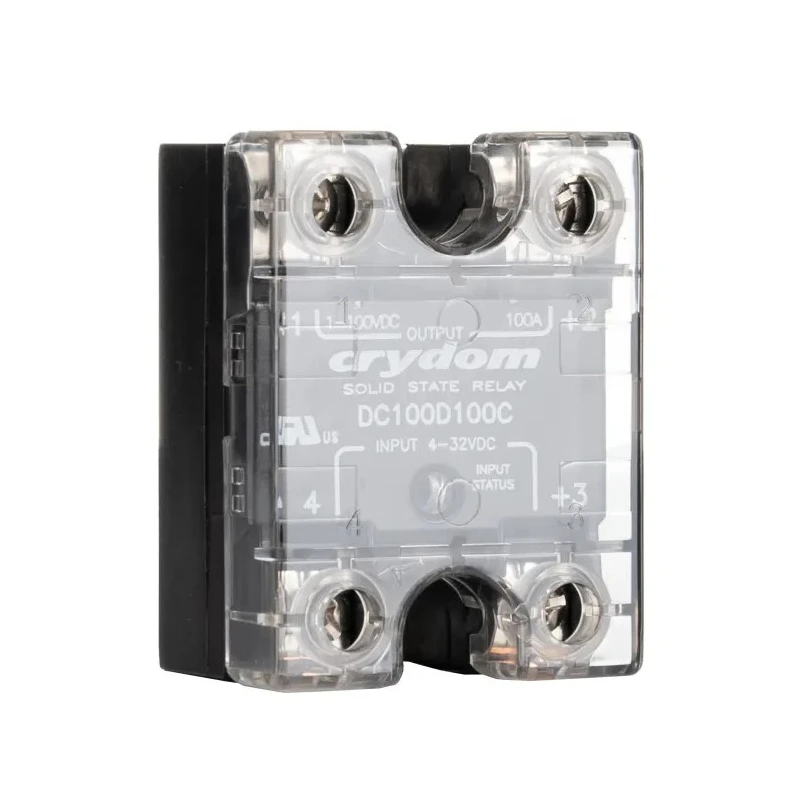

Crydom DC Series Solid State Relay Panel Mount 100A Load 72V DC Load 32V DC Control DC100D100C
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 32.9mm |
| Length | 58.2mm |
| Model | DC100D100C |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | DC |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Instantaneous Switching |
| Maximum Load Current | 100A |
| Standards/Approvals | UL, CE, RoHS |
| Maximum Load Voltage | 72V dc |
| Minimum Load Voltage | 1V dc |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.15mA |
| On State Resistance | 15Ω |
Key Features
- Supports a maximum load current of 100 amperes for high power applications.
- Designed for panel mounting with secure screw terminal connections.
- Operates within a load voltage range of 1V to 72V DC for versatile use.
- Control voltage range spans 4V to 32V DC for flexible control options.
- Instantaneous switching function delivers fast and reliable circuit control.
- Robust construction with IP20 rated cover providing protection against touch and large objects.
- Wide operating temperature range from -30°C to 80°C suitable for diverse environments.
- Low off-state leakage current of 0.15mA minimizes energy loss during operation.
Product Description
Crydom DC Series Solid State Relay model DC100D100C is a high-performance panel mount relay designed for precise and rapid switching of DC circuits. It supports a maximum load current of 100 amperes and a load voltage up to 72V DC, making it ideal for industrial and automation control applications.
This relay features an instantaneous switching function with fast turn-on and turn-off times, ensuring efficient circuit operation in demanding environments. The screw terminal design ensures secure and stable electrical connections while its IP20 rated cover protects the device from accidental contact and foreign objects larger than 12mm.
Operating reliably within a temperature range from -30°C to 80°C, the relay suits a wide variety of industrial, automation, and communication system uses. Its low off-state leakage current of 0.15mA contributes to energy efficiency, while the MOSFET output offers durable and effective switching capability.
Additional technical features include on-state resistance of 15Ω and capacitance of 8pF, making it a precise and dependable component for DC switching tasks. The compact physical dimensions facilitate easy integration into control panels and systems with limited space.
Maximum load current of 100A for handling large currents safely. Panel mount installation with screw terminals for secure wiring. Operating voltage range for control inputs from 4V to 32V DC. Instantaneous switching function suitable for rapid and frequent switching tasks.
Wide operating temperature range supports usage in extreme environments. Low leakage current reduces energy waste during off states.
This Crydom DC Series relay is manufactured in Mexico and conforms to UL, CE, and RoHS standards, assuring quality and compliance for industrial applications. Ideal for electronics, electrical control systems, automation, and communication equipment requiring reliable DC switching solutions.
Explore more Solid State Relays and related products in the Electronics & Electricals category at EnvMart for comprehensive industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 100 amperes, making it suitable for high power applications.
It operates within a load voltage range of 1V to 72V DC, providing versatility for various applications.
The control voltage range for this relay spans from 4V to 32V DC, allowing for flexible control options.
This relay features an instantaneous switching function, which enables fast and reliable circuit control.
The relay measures 58.2mm in length, 22.6mm in width, and 32.9mm in height.
It has an IP20 rated cover, providing protection against touch and large objects larger than 12mm.
The relay operates reliably within a temperature range of -30°C to 80°C, suitable for diverse environments.
This model features screw terminals for secure and stable electrical connections.
The off-state leakage current is 0.15mA, which helps minimize energy loss during operation.
It conforms to UL, CE, and RoHS standards, ensuring quality and compliance for industrial applications.
This model utilizes a MOSFET output type, providing effective switching capabilities.
The on-state resistance is 15Ω, contributing to its performance in DC switching tasks.
