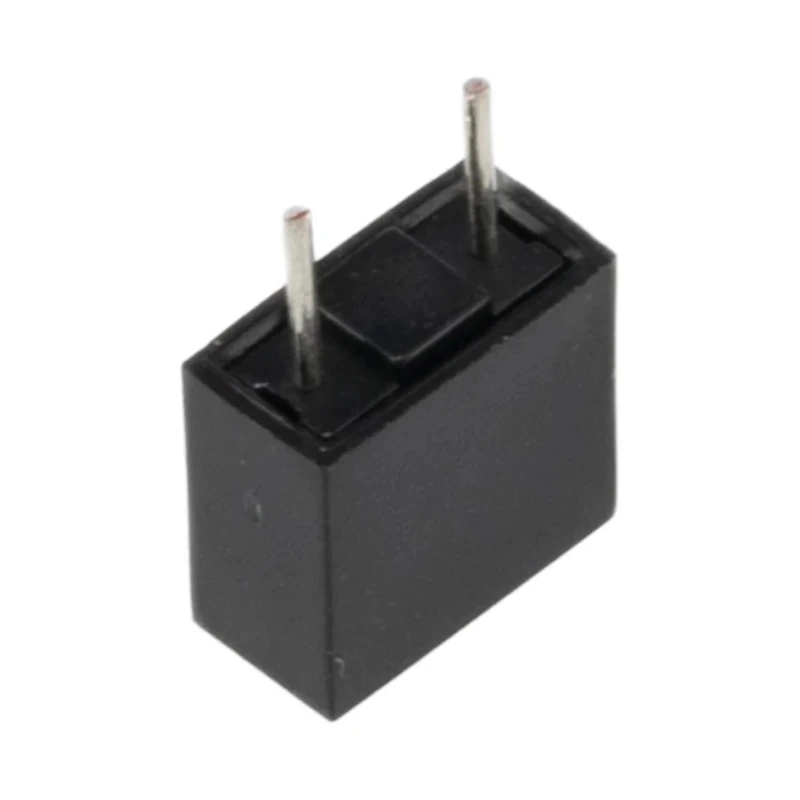

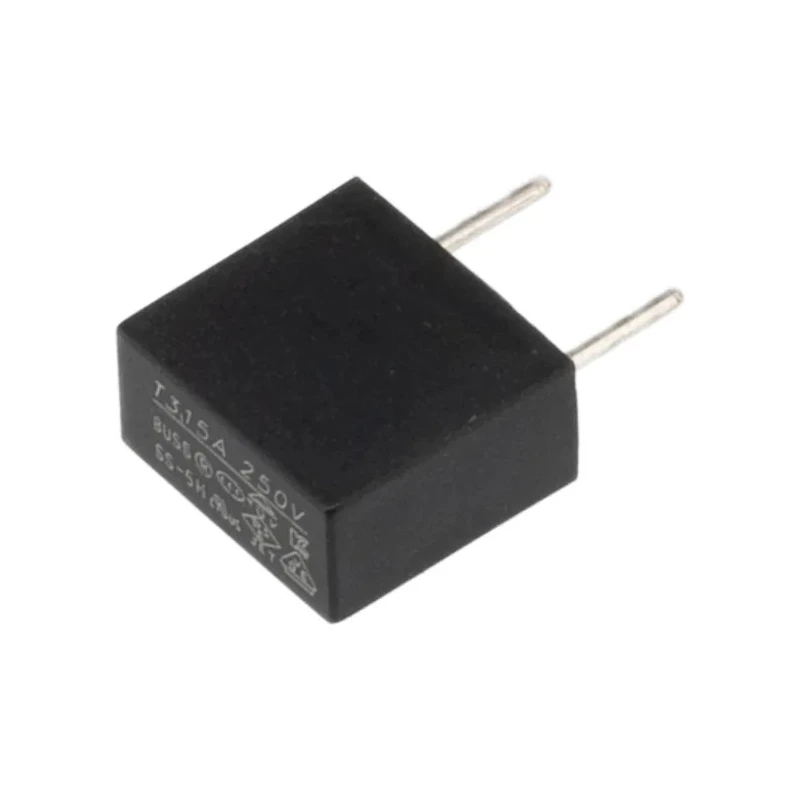

Eaton Radial Fuse 3.15A 250V AC Time Delay Plastic Body SS-5H-3-15A-BK

Free Delivery in India | Lowest Global Shipping Charges

Eaton Radial Fuse 3.15A 250V AC Time Delay Plastic Body SS-5H-3-15A-BK

Name: Eaton Radial Fuse 3.15A 250V AC Time Delay Plastic Body SS-5H-3-15A-BK
Brand: Eaton
SKU: 367251
Price: 0.5 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Diameter	0.6mm
Brand	Eaton
Body Material	Plastic
Height	8.35mm
Length	8.5mm
Model	SS-5H-3-15A-BK
Width	4.3mm
Current Rating	3.15A
Series	SS-5H
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-40°C
Lead Length	4.3mm
Breaking Capacity	100A
Standards/Approvals	PSE, KCMark, UL 94V0, MILSTD0F, VDE, IEC 6017, TUV, IEC60174, RoHS
Fuse Characteristics	Time Delay
Lead Orientation	Radial

Key Features

Time delay (slow-blow) characteristic provides tolerance to transient current surges.
Plastic body construction offers reliable electrical insulation at elevated temperatures.
Radial leads with 0.6mm diameter and 4.3mm length enable through-hole PCB mounting.
High breaking capacity of 100A limits fault energy and protects circuits effectively.
Wide operating temperature range from -40°C up to +125°C supports use in harsh environments.
Suitable for protecting power supplies and control panels with high inrush currents.
Designed for use on AC systems up to 250V voltage rating.
Compact physical dimensions facilitate integration into tight electronic assemblies.

Product Description

The Eaton SS-5H-3-15A-BK is a high-quality radial fuse designed to provide reliable circuit protection at 3.15A current and 250V AC voltage. It features a time-delay, or slow-blow, characteristic that allows transient surges and inrush currents to pass without nuisance opening, making it ideal for power supplies and sensitive electronics.

Its plastic body ensures excellent electrical insulation even at elevated temperatures up to +125°C. Radial leads have a standard diameter of 0.6mm and length of 4.3mm, facilitating easy through-hole mounting on printed circuit boards.

The fuse has a breaking capacity of 100A, effectively limiting fault energy to prevent damage in overload scenarios. Its physical dimensions are compact with length 8.5mm, width 4.3mm, and height 8.35mm, allowing seamless incorporation into varied electrical assemblies. The product operates reliably over a wide temperature range from -40°C to +125°C, suitable for harsh industrial and commercial environments.

This non-resettable fuse is well suited for safeguarding automation control panels, providing current-limiting protection for small AC mains circuits, and protecting sensitive electronic modules that require slow-blow characteristics for tolerance against power surges.

Time delay characteristic tolerant of inrush currents. High breaking capacity of 100A for fault energy limitation. Plastic body for electrical insulation at high temperature. Radial 0.6mm diameter leads enable through-hole PCB installation.

Wide operating temperature range from -40°C to +125°C. Compact dimensions allow use in space-constrained circuits. Supports protection of power supplies and sensitive electronics. Designed for AC voltage application up to 250V.

It is designed for use in industrial, commercial, and electrical automation applications. Explore the wide range of non-resettable Fuses at EnvMart for reliable circuit protection solutions from trusted brands like Eaton.
