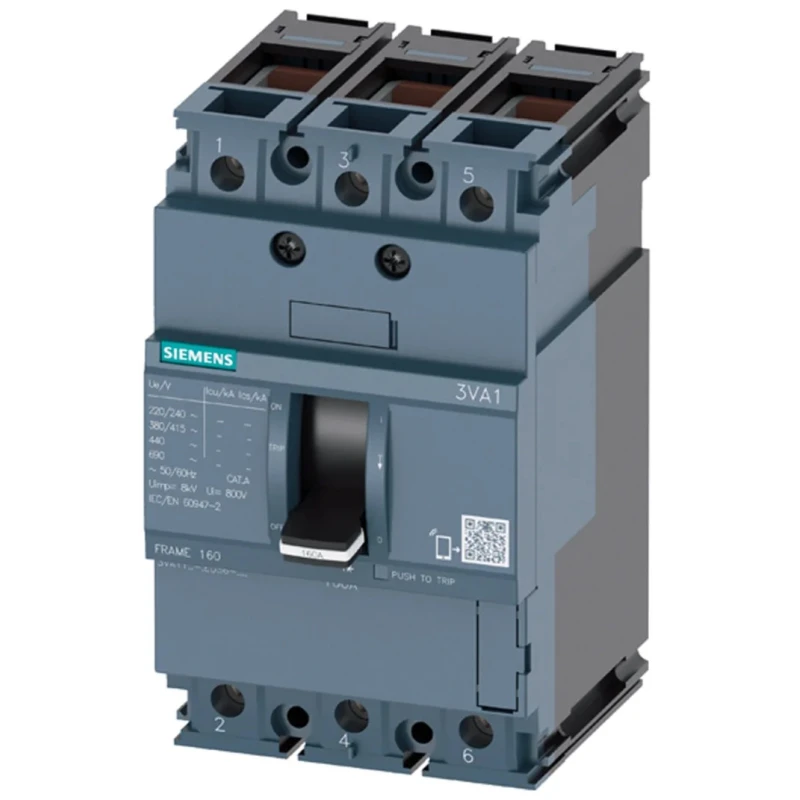

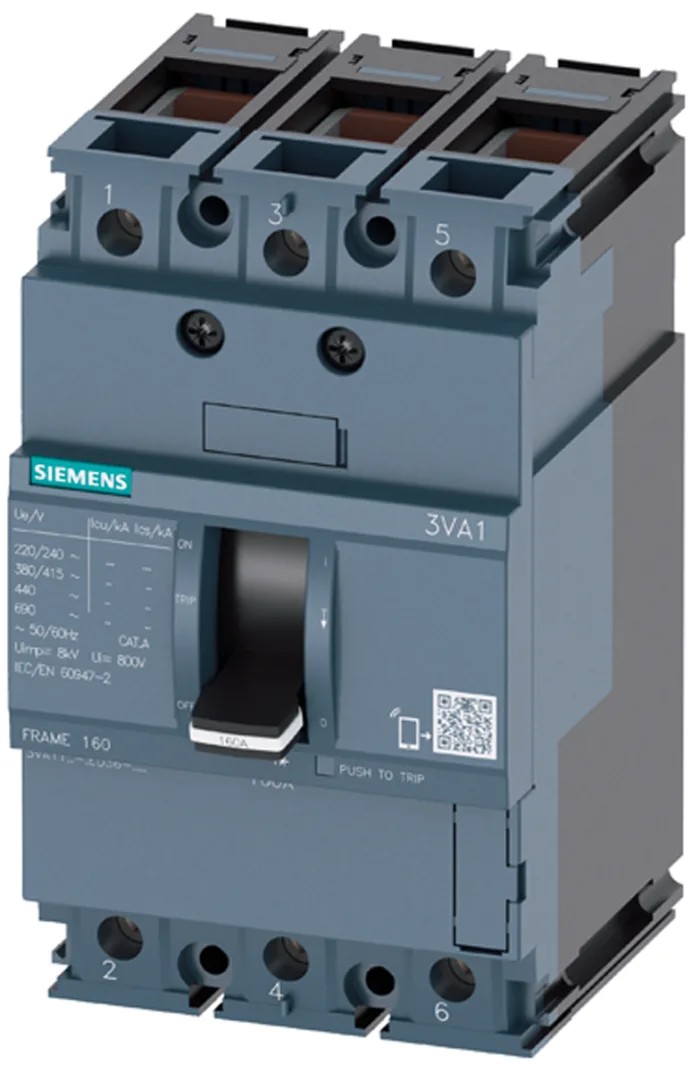

Siemens SENTRON Molded Case Circuit Breaker 3-Pole 16A Breaking Capacity 25 kA Fixed 3VA1196-3ED36-0AA0

Free Delivery in India | Lowest Global Shipping Charges

Siemens SENTRON Molded Case Circuit Breaker 3-Pole 16A Breaking Capacity 25 kA Fixed 3VA1196-3ED36-0AA0

Name: Siemens SENTRON Molded Case Circuit Breaker 3-Pole 16A Breaking Capacity 25 kA Fixed 3VA1196-3ED36-0AA0
Brand: Siemens
SKU: 383555
Price: 390.32 USD
Availability: InStock



Category Molded Case Circuit Breaker Brand Siemens Condition New

Specifications

Country of Origin	Czech Republic
Range	SENTRON
Brand	Siemens
Height	130mm
Model	3VA1196-3ED36-0AA0
Depth	88mm
Width	130mm
Mount Type	Fixed
Current Rating	16A
Series	SENTRON
Breaking Capacity	25kA
Number of Poles	3
Standards/Approvals	CE
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Extended Product Life, Saves Energy
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Mount Hole Size	4.2 mm
Break Time	Instantaneous

Key Features

Rated current of 16 amperes suitable for low to medium power applications.
Breaking capacity of 25 kiloamperes ensures safety during fault conditions.
Designed for fixed mounting with a compact 3-pole configuration.
Thermal-magnetic tripping mechanism provides precise instantaneous and overload protection.
Suitable for AC voltage ratings up to 690V and DC voltage up to 500V.
Features a toggle switch for manual reset after tripping events.
Compact dimensions of 130mm height, width, and 88mm depth facilitate efficient panel installation.
Complies with CE standards, ensuring quality and safety compliance.

Product Description

Siemens 3VA1196-3ED36-0AA0 Molded Case Circuit Breaker (MCCB) with 3 poles and 16A current rating is engineered for reliable and robust electrical protection.

This SENTRON series MCCB provides effective line protection for industrial, commercial, and automation applications by combining compact design with high breaking capacity and dependable thermal-magnetic tripping technology.

Rated for 690V AC and 500V DC systems, it supports both alternating and direct current networks without derating up to 50 °C ambient temperature. Key functional features include instantaneous break time for fault interruption and easy manual reset via toggle switch actuator, ensuring rapid recovery after faults.

The 3VA1 series devices are suited for fixed mount installations in distribution panels and machine engineering setups. Their design ensures compliance with CE approvals and promotes sustainability with extended product life and energy savings.

16A current rating for low and medium current circuits. 25 kA breaking capacity for high fault tolerance. Thermal-magnetic trip unit for accurate overload and short-circuit protection. Fixed mounting type ideal for secure installation.

690V AC and 500V DC voltage ratings covering wide industrial applications. Compact size of 130mm height, 130mm width, and 88mm depth allows for space-efficient panel mounting. CE compliant for quality assurance. Better World product emphasizing sustainability and energy efficiency.

Manufactured in Czech Republic under stringent quality standards.

This Siemens SENTRON MCCB is optimal for use in electrical distribution boards, automation control panels, and industrial machinery protection. Its robust construction and precise tripping mechanisms provide enhanced safety and reliability in diverse AC/DC environments.
