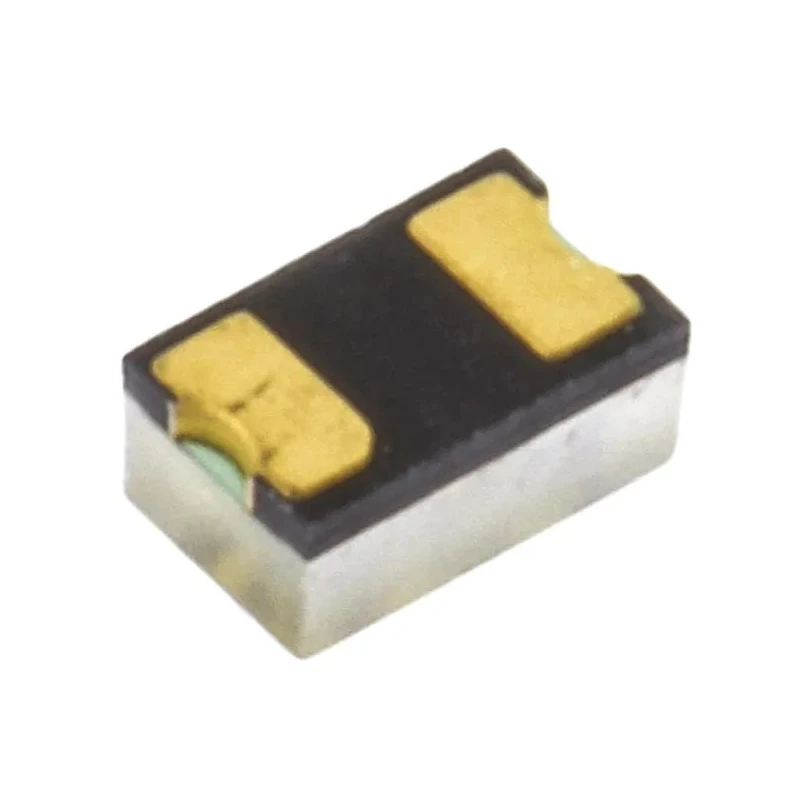

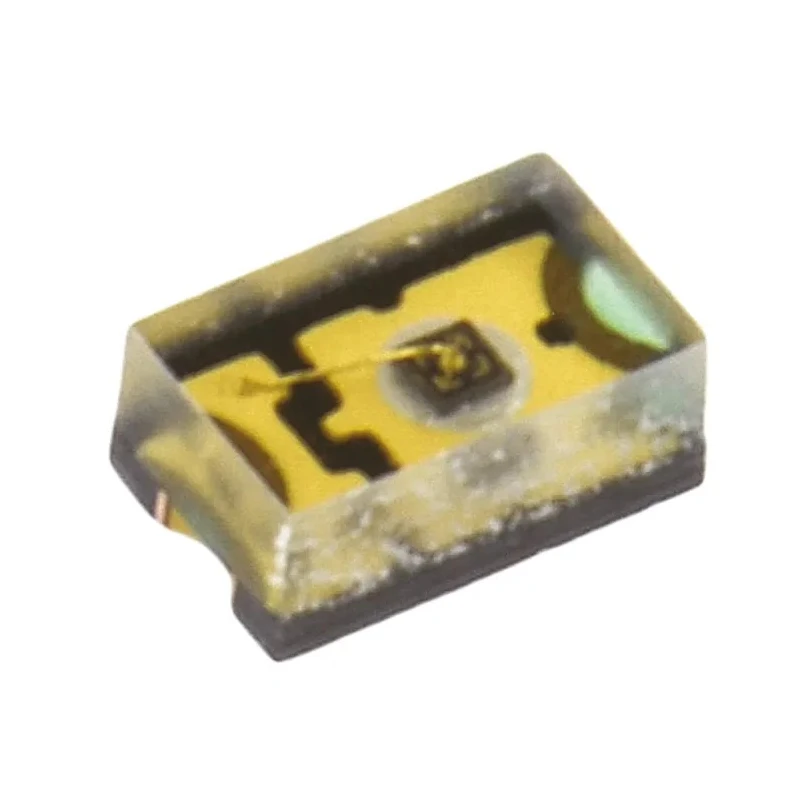

Vishay Surflight 850 nm Infrared LED 2012 Surface Mount Package VSMY1850X01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Dimensions | 2 x 1.25 x 0.85 |
| Model | VSMY1850X01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Surflight |
| Beam angle | 120° |
| Number Of Leds | 1 |
| Package Type | 2012 |
| Standards/Approvals | JEDEC |
| Number of Pins | 2 |
| Lens Shape | Rectangular |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 850nm |
| Radiant Flux | 50mW |
| LED Material | GaAlAs |
| Angle of half intensity | 60° |
| Radiant Intensity | 10mW/sr |
| ams OSRAM Chip LED 860 nm IR LED 0402 Surface packageBrand | ams OSRAM |
Key Features
- Equipped with SurfLight™ technology for enhanced top emission intensity.
- Features a clear, flat top lens with surface mount 0805 size (2 x 1.25 x 0.85 mm).
- High radiant flux of 50 mW and radiant intensity of 10 mW/sr for strong IR output.
- Beam angle of 120° with angle of half intensity at 60° for wide coverage.
- Manufactured using GaAlAs LED material ensuring high reliability and performance.
- Suitable for IR data transmission, photointerrupters, optical switches, and proximity sensors.
- Complies with JEDEC standards and automotive AEC-Q101 for quality assurance.
- Package supplied on tape and reel for efficient automated PCB assembly.
Product Description
Vishay VSMY1850X01 is a high-speed infrared (IR) emitting diode designed for surface-mount technology applications. Its compact 2012 (0805) package with dimensions of 2 x 1.25 x 0.85 mm incorporates SurfLight™ technology that directs maximum IR emission through the top lens, enhancing intensity output compared to traditional IR emitters.
This device operates at a peak wavelength of 850 nm, making it ideal for applications including Infrared Data Association (IrDA) compatible data transmission, miniature light barriers, photointerrupters, optical switches, proximity sensors, touch panels, IR flash, and 3D television synchronization. The LED exhibits a radiant flux of 50 mW and radiant intensity of 10 mW/sr, delivering powerful infrared emission with a wide beam angle of 120° and half intensity angle of 60° for efficient area coverage.
Constructed with gallium aluminum arsenide (GaAlAs) LED material, the VSMY1850X01 ensures high reliability, durability, and excellent performance. The device conforms to JEDEC standards and the automotive-grade AEC-Q101 qualification, further supporting its use in automotive, industrial, and security camera IR illumination contexts.
The product's surface mount package includes a clear, untinted flat rectangular lens configured with two pins for easy PCB integration. It is supplied on tape and reel packaging to support mass production environments and automated pick-and-place assembly processes.
Applications include industrial machine vision, automotive IR sensor systems, security and surveillance IR illumination, optical communication devices, and consumer electronics requiring IR LED sources. The SurfLight™ technology reduces the number of IR emitters required in design by increasing light output intensity.
High speed infrared emitter for data transmission and sensing. Compact 2012 surface mount design suitable for automated assembly. Robust construction meeting automotive and JEDEC standards. Enhanced beam control and high radiant power output.
Versatile for industrial, automotive, and consumer IR applications. Explore Vishay electronic components and infrared emitting diodes in the EnvMart catalog for reliable, high-quality semiconductor solutions.
Explore more products in our Infrared LED category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the VSMY1850X01 infrared LED is 850 nm.
This model has dimensions of 2 x 1.25 x 0.85 mm, following the 2012 surface mount package standard.
The radiant flux output of the VSMY1850X01 is 50 mW, providing strong infrared emission.
It has a beam angle of 120°, with an angle of half intensity at 60° for effective coverage.
The VSMY1850X01 is supplied on tape and reel packaging, which supports automated PCB assembly.
This infrared LED complies with JEDEC standards and the automotive AEC-Q101 qualification.
The radiant intensity of the VSMY1850X01 is 10 mW/sr, ensuring powerful infrared output.
The LED is constructed using gallium aluminum arsenide (GaAlAs) material, which contributes to its performance.
This infrared LED features 2 pins for easy integration into PCB designs.
It is suitable for applications such as IR data transmission, photointerrupters, optical switches, and proximity sensors.
The VSMY1850X01 supports surface mounting, making it suitable for various electronic applications.
This model is part of the Surflight series, which is known for enhanced top emission intensity.
