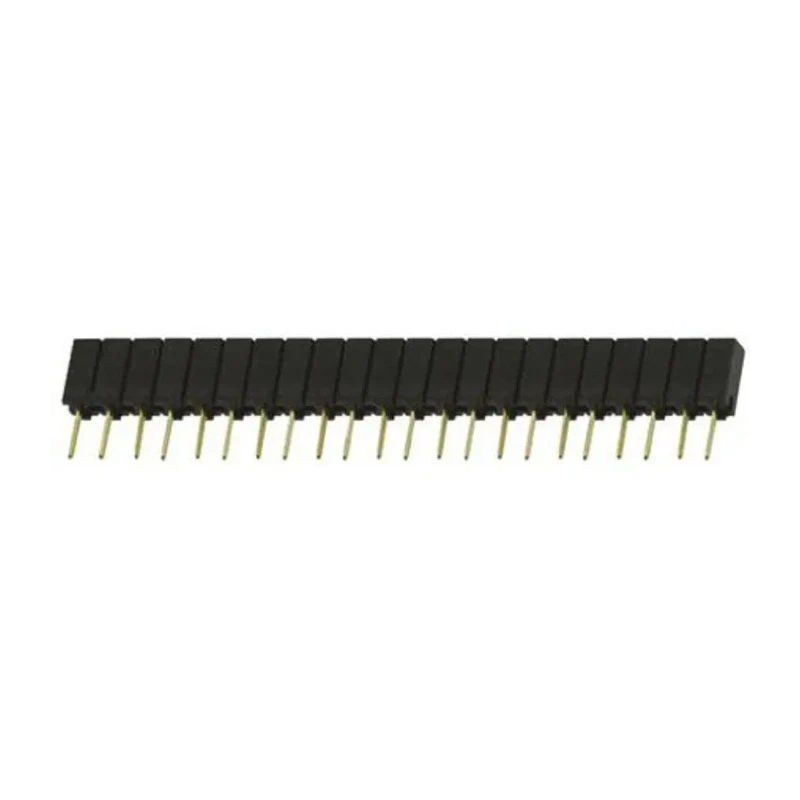

Samtec SSA Series Straight Through Hole PCB Socket, 22-Contact, 1 Row, 2.54 mm Pitch, 12A, 1kV, Gold Plated SSA-122-S-G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SSA-122-S-G |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | SSA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Single row, straight through hole mounting socket designed for PCB applications.
- Durable gold-plated bronze contacts ensure excellent conductivity and corrosion resistance.
- Rated for 12A current and 1kV voltage for high-performance electronic circuits.
- Housing made of high temperature black PET polyester with UL 94 V-O rating.
- Operating temperature range from -55°C to 125°C suitable for harsh environments.
- Female contact gender with snap strip feature and standoffs for secure insertion.
- Compatible with various Samtec TS, BBS, and BBL series terminal and stacking strips.
- Low cost and widely used board-to-board connector with 2.54 mm pitch.
Product Description
Samtec SSA-122-S-G is a high-quality board-to-board PCB socket designed for through hole mounting applications. It features 22 female contacts arranged in a single row with a pitch of 2.54 mm, enabling reliable straight through hole connections. The socket body is constructed from UL rated 94 V-O high temperature black PET polyester, ensuring durability and flame resistance. The contacts are made from phosphor bronze with a 0.25 μm gold plating for excellent conductivity and corrosion protection. This socket is rated for 12A current and can withstand voltage up to 1kV, making it suitable for a wide range of electronic circuit applications.
The operating temperature of this connector ranges from -55°C to 125°C, allowing it to perform reliably under demanding environmental conditions. Its design incorporates a snap strip feature and standoffs for secure mounting and ease of automated assembly. The SSA series PCB sockets are known for low cost and compatibility with other Samtec connectors such as TS series screw machine terminal strips and BBS, BBL board stacking strips.
This PCB socket is widely used in industrial electronics, manufacturing automation, communication systems, and various power and control applications requiring robust board-to-board connections. The through hole mount ensures mechanical stability and firm electrical contact.
Single row, 22-contact design with 2.54 mm pitch. High temperature resistant polyester housing rated UL 94 V-O. Gold plated phosphor bronze contacts provide reliable conductivity. Operating temperature range from -55°C to 125°C.
Rated current 12A and voltage 1kV for industrial applications. Through hole mounting for secure PCB connection and automation friendly. Compatible with Samtec TS, BBS, and BBL series connectors. Ideal for use in electronics manufacturing, control systems, and communication equipment.
Explore the full range of PCB Sockets and connectors at EnvMart for your industrial and electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a maximum current of 12A.
The SSA-122-S-G is rated for a maximum voltage of 1kV.
The contacts in this model are arranged with a pitch of 2.54 mm.
The contacts are made from phosphor bronze and are gold plated for improved conductivity.
It operates within a temperature range of -55°C to 125°C.
This model features 22 female contacts arranged in a single row.
The SSA-122-S-G is designed for through hole mounting.
The housing is made from high temperature black PET polyester, rated UL 94 V-O.
It is compatible with various Samtec TS, BBS, and BBL series terminal and stacking strips.
The termination type for the contacts is solder.
This PCB socket is widely used in industrial electronics, manufacturing automation, and communication systems.
This model has a straight orientation for its contacts.
