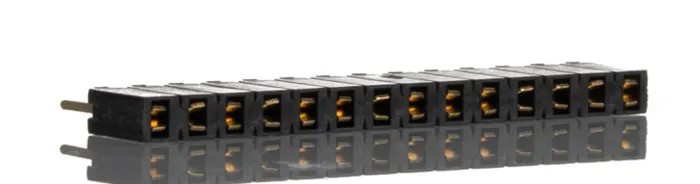

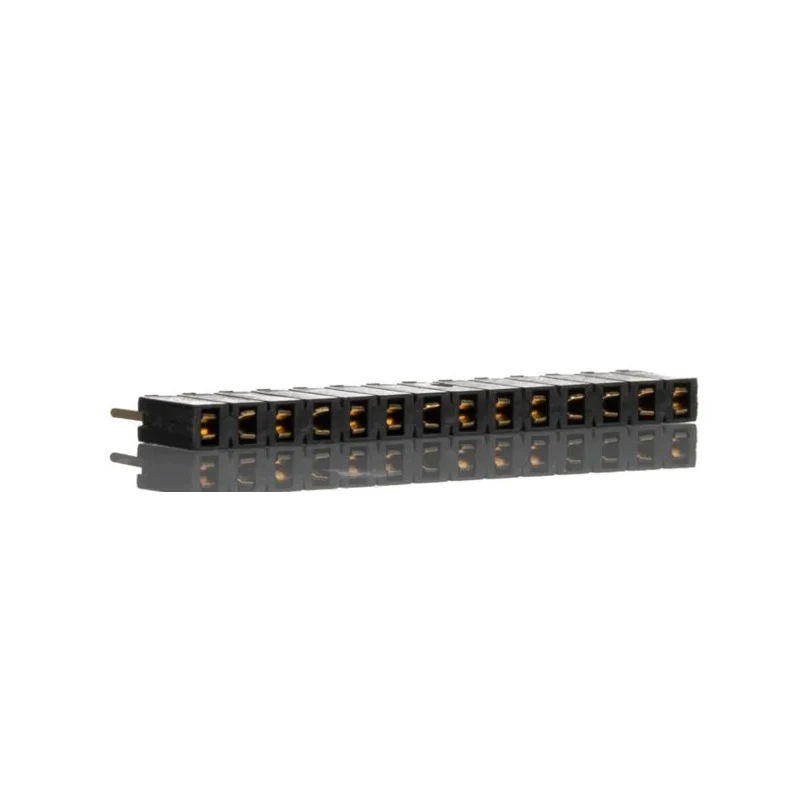

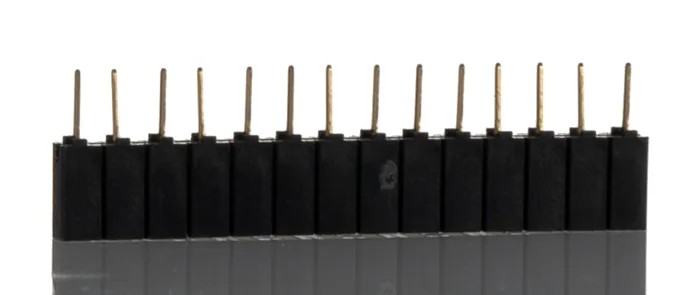

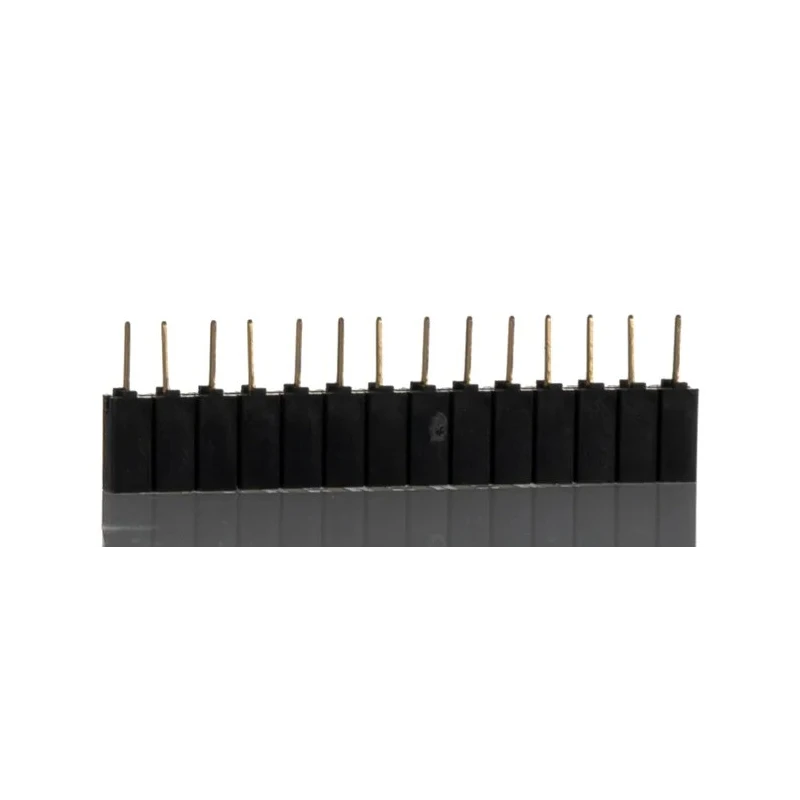

Samtec SSA Series PCB Socket 14 Contacts 1 Row 2.54 mm Pitch Through Hole Mount Solder Termination SSA-114-S-G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SSA-114-S-G |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | SSA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed with gold-plated phosphor bronze contacts for excellent conductivity and durability.
- Supports a high current rating of 12A for dependable power delivery.
- Operates reliably within a temperature range from -55°C to 125°C.
- Constructed with durable polyester housing ensuring robust mechanical protection.
- Features a straight orientation with solder termination for secure PCB mounting.
- Offers minimum contact resistance of 10 mΩ ensuring efficient signal transmission.
- Has insulation resistance of at least 5000 MΩ for superior electrical isolation.
- Compatible with various Samtec connectors for flexible system integration.
Product Description
Samtec SSA-114-S-G is a high-quality PCB socket designed for reliable electrical connections in industrial, electronic, and prototyping applications. It features 14 female contacts arranged in a single row with a 2.54 mm pitch providing precision alignment for board-to-board interfacing.
The socket ensures exceptional performance with phosphor bronze contacts plated in gold which deliver low contact resistance of 10 mΩ and high conductivity. Rated for a current of 12A and voltage of 1 kV, the SSA series socket supports demanding electrical environments.
Constructed with rugged polyester housing, this through-hole mount socket is designed for durability and stability on printed circuit boards. It accommodates a wide operating temperature range from -55°C up to 125°C, ensuring performance across harsh environmental conditions encountered in industrial, mechanical, and consumer electronics sectors.
The SSA-114-S-G delivers excellent insulation resistance of 5000 MΩ minimum, enhancing safety and signal integrity. Its straight connector orientation and solder termination type provide easy assembly and robust mounting, facilitating efficient manufacturing workflows.
Applications include connecting circuits in automation systems, electrical and mechanical industries, and various consumer electronics devices. The socket is also ideal for prototyping and production environments requiring high reliability and repeatability.
Gold plating on contacts enhances durability and conductivity. High current and voltage ratings improve wide applicability. Robust polyester housing protects against mechanical stress. Suitable for harsh industrial temperature ranges.
Minimizes contact resistance for superior signal quality. Compatible with broad Samtec connector series. Explore our selection of PCB Sockets and related power connectors for your industrial and electronics needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SSA-114-S-G socket has a current rating of 12A, allowing for dependable power delivery in various applications.
This model is rated for a voltage of 1 kV, making it suitable for demanding electrical environments.
The contacts in the SSA-114-S-G socket are arranged with a pitch of 2.54 mm, ensuring precise alignment for board-to-board interfacing.
The contacts are made of phosphor bronze and are gold-plated, which enhances conductivity and durability.
It operates reliably within a temperature range from -55°C to 125°C, suitable for harsh environmental conditions.
This socket features 14 female contacts arranged in a single row.
The SSA-114-S-G uses a solder termination type for secure PCB mounting.
It has a minimum insulation resistance of 5000 MΩ, providing superior electrical isolation.
The housing is constructed from durable polyester, ensuring robust mechanical protection.
The socket features a straight orientation, facilitating easy assembly on printed circuit boards.
Yes, it is compatible with various Samtec connectors, allowing for flexible system integration.
This socket is suitable for connecting circuits in automation systems, electrical and mechanical industries, and consumer electronics devices.
