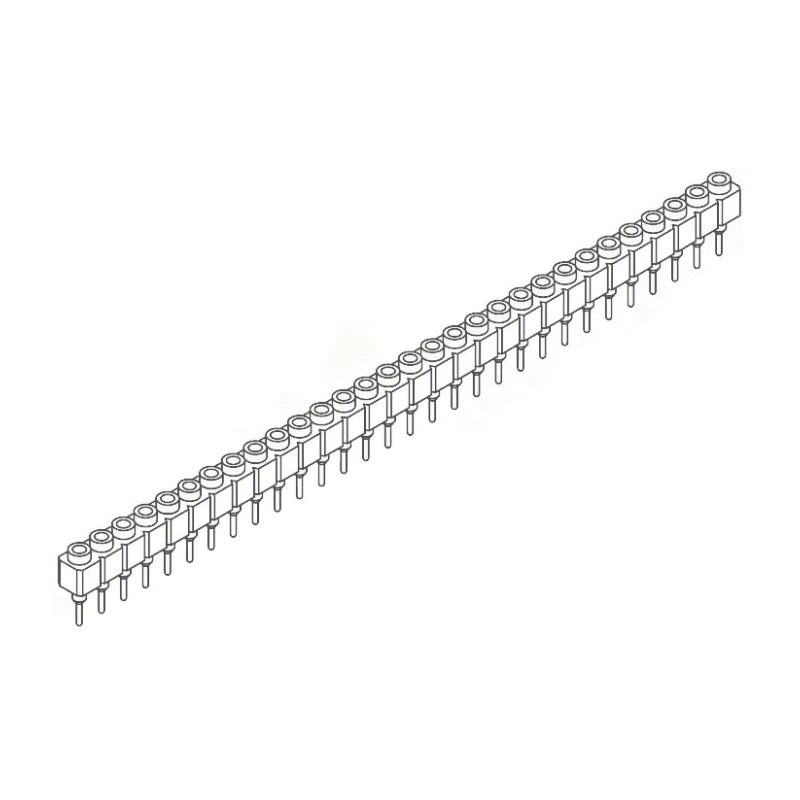

Samtec SS Series Straight Through Hole PCB Socket 30-Contact 1 Row 2.54 mm Pitch Solder SS-130-T-2-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SS-130-T-2-N |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Offers robust performance with beryllium copper alloy contacts plated in gold for excellent conductivity.
- Features a black glass-filled polyester housing ensuring durability under operating temperatures ranging from -55°C to 125°C.
- Designed for through hole mounting with a straight orientation for secure PCB connections.
- Rated for a current carrying capacity of 12A, suitable for various electronic industrial applications.
- Complies with RoHS standards, ensuring environmental compliance and safety.
- Compatible with TS, BBS, and BBL series machined terminal and stacking strips for flexible board assembly.
- Ideal for industrial, electronics manufacturing, laboratory, and HVAC equipment requiring reliable board connectors.
Product Description
Samtec SS-130-T-2-N SS Series Straight Through Hole PCB Socket is a high-precision screw machined socket strip featuring 30 female contacts arranged in a single row. The socket strip has a 2.54 mm pitch and solder termination type, designed for board-to-board connector systems.
The housing is crafted from durable black glass-filled polyester (liquid crystal polymer), providing resilience under harsh conditions with an operational temperature range from -55°C to 125°C. Contacts are made from beryllium copper alloy with gold plating of 0.76μm thickness, ensuring optimal electrical conductivity and corrosion resistance.
Rated to carry 12A current, this through hole mount connector with a straight orientation suits a wide array of electronic applications including manufacturing equipment, instrumentation, and industrial electronics that demand reliable signal and power connectivity on PCBs.
The SS series sockets mate perfectly with related Samtec TS series precision machined terminal strips, as well as BBS and BBL machine board stacking strips, offering versatility in complex board assembly layouts.
Provides precision screw machined contacts for consistent connection quality. Utilizes beryllium copper alloy contacts with gold plating for durability and conductivity. Black glass filled polyester housing ensures mechanical stability and temperature tolerance.
Meets RoHS compliance, supporting environmental and safety standards. Designed for through hole mounting with a 2.54 mm pitch, compatible with standard PCB layouts. Supports board-to-board connection with a current rating of 12A suitable for industrial use.
Compatible with multiple Samtec accessory series to expand connection options.
This PCB socket supports a wide range of industrial uses including electronics manufacturing, commercial equipment interconnections, laboratory setups, HVAC control boards, and other specialized electronic assemblies. Its robust design allows for reliable performance in demanding environments.
Explore more in Samtec connectors and PCB Sockets at EnvMart for quality industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current carrying capacity of 12A, making it suitable for various electronic industrial applications.
The contacts in this socket are arranged with a pitch of 2.54 mm, which is standard for many PCB layouts.
The contacts are made from beryllium copper alloy with gold plating, while the housing is crafted from black glass-filled polyester (liquid crystal polymer).
It operates effectively within a temperature range of -55°C to 125°C, suitable for harsh environments.
This unit is designed for through hole mounting, allowing for secure connections on printed circuit boards.
The SS-130-T-2-N features a solder termination type, ensuring a reliable electrical connection.
It is compatible with Samtec TS, BBS, and BBL series machined terminal and stacking strips for flexible board assembly.
This model features 30 female contacts arranged in a single row, providing ample connectivity options.
The socket complies with RoHS standards, ensuring it meets environmental compliance and safety requirements.
This PCB socket is suitable for a wide range of applications including electronics manufacturing, laboratory setups, and HVAC control boards.
The contacts in this model are oriented straight, which is designed for secure PCB connections.
The SS-130-T-2-N is manufactured in India.
