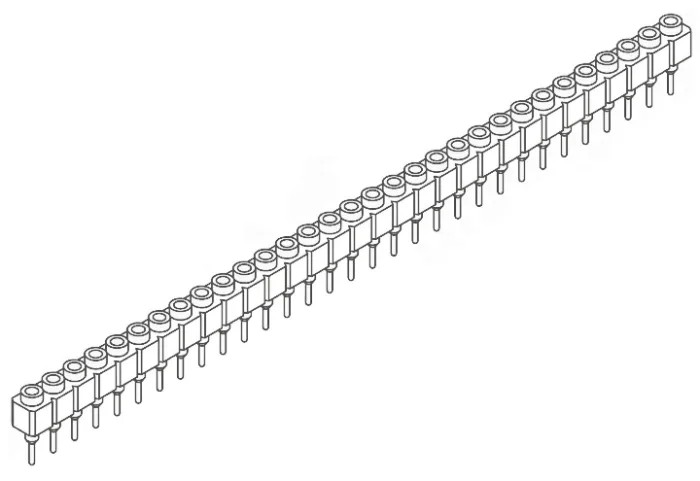

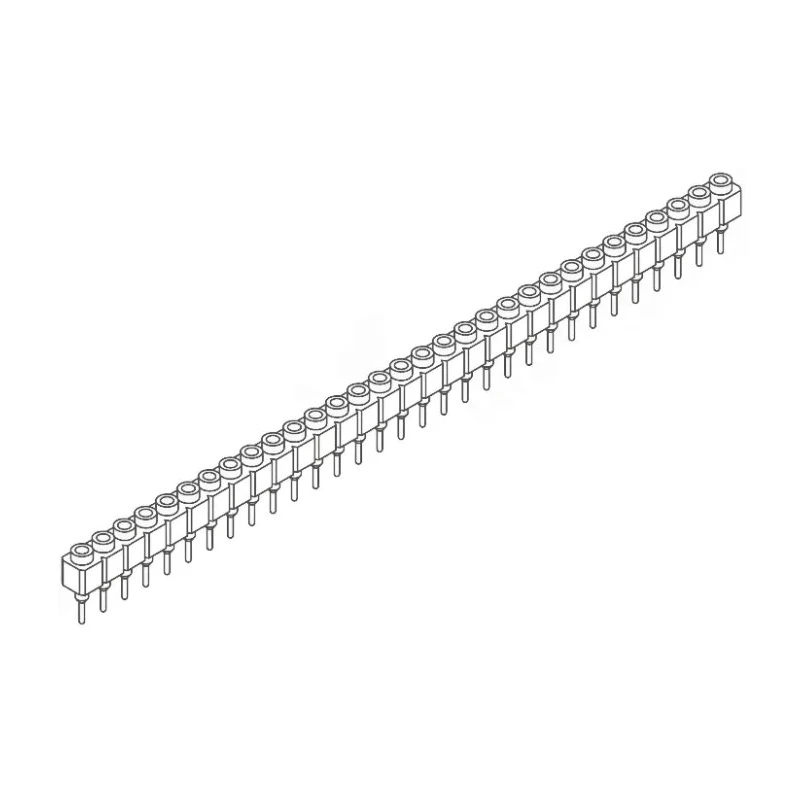

Samtec SS Series Straight Through Hole PCB Socket 32-Contact, 1 Row, 2.54 mm Pitch Solder SS-132-T-2-N

Samtec SS Series Straight Through Hole PCB Socket SS-132-T-2-N is a specialized 32-contact, single-row, 2.54 mm pitch solder termination connector designed for board-to-board applications. Manufactured with precision screw machined contacts made from beryllium copper alloy and plated with gold, the socket ensures high conductivity and corrosion resistance. The socket body is made of black glass filled liquid crystal polymer which provides strength and heat resistance, suitable for demanding industrial environments.

This PCB socket supports a maximum current rating of 12A and operates reliably across a broad temperature range from -55°C to 125°C. Its design includes a non-flush style with 3.18 mm tail length for through hole mounting, enabling stable mechanical and electrical connections.

The SS-132-T-2-N model is fully RoHS compliant, ensuring it meets environmental and safety standards required in modern electronic manufacturing. It is versatile for use in industrial, manufacturing, electronics assembly, and laboratory applications requiring reliable board stacking and connections.

This connector mates with several other Samtec series terminal and stacking strips, such as the TS, BBS, and BBL series, enhancing modular design flexibility. The precise screw machined socket strips facilitate ease of assembly and production efficiency in electronics manufacturing environments.

Gold-plated beryllium copper alloy contacts guarantee excellent electrical performance. Robust liquid crystal polymer housing withstands mechanical and thermal stress effectively. 12A current rating supports high power applications without compromise.

Wide operational temperature tolerance from -55°C to 125°C. Through hole mount type with solder termination ensures secure PCB attachment. Single row with 32 contacts and 2.54 mm pitch provides compact connectivity. RoHS compliant, ideal for environmentally sensitive applications.

Explore more from the Samtec SS Series PCB Sockets in the Electronics & Electricals category on EnvMart for your industrial, manufacturing, and electronic design needs.
