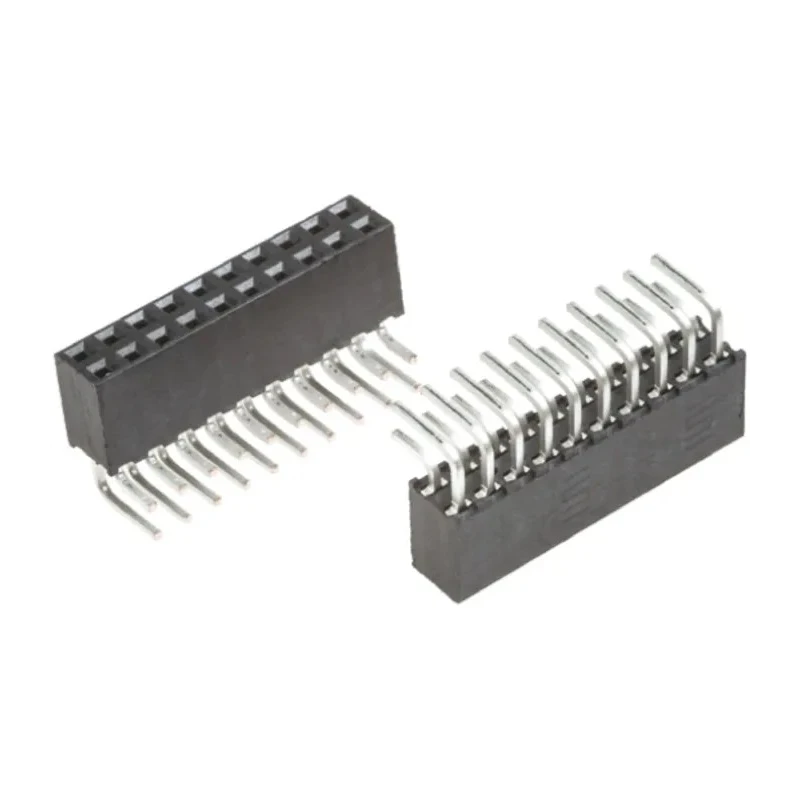

Samtec SQT Series Right Angle Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder SQT-110-01-L-D-RA

Name: Samtec SQT Series Right Angle Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder SQT-110-01-L-D-RA
Brand: Samtec
SKU: 366843
Price: 4.61 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	450V
Brand	Samtec
Orientation	Right Angle
Current	5.5A
Temperature range	-55 → 125 °C
Model	SQT-110-01-L-D-RA
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Current Rating	5.5 A at 20 °C
Series	SQT
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board
Insulator Material	Black LCP
SQT-1xx-01-L-S	single row vertical
SQT-1xx-01-L-x-RA	horizontal
SQT-1xx-01-L-D	double row vertical

Key Features

The socket uses liquid crystal polymer housing for enhanced durability.
Gold-plated bronze contacts provide reliable electrical performance.
It supports a current rating of 5.5 A at 20 °C with operating voltage up to 450 V.
Designed for through-hole mounting with right angle orientation.
Operating temperature range from -55 °C to 125 °C ensures performance in harsh environments.
This PCB socket is part of the rugged SQT series with a 2 mm pitch and dual row layout.
The contact mating gender is female with 0.25 μm gold plating on contact areas.
Ideal for industrial electronics, manufacturing, and PCB assembly applications.

Product Description

Samtec SQT-110-01-L-D-RA is a high-quality right angle through-hole PCB socket designed for board-to-board connections with a 2 mm pitch and 20 contacts arranged in 2 rows.

The socket features a robust liquid crystal polymer housing (Black LCP) and bronze contacts with gold plating, ensuring excellent conductivity and corrosion resistance. It is rated for a current capacity of 5.5 A at 20 °C and can operate over a wide temperature range from -55 °C to 125 °C.

The connector system is board-to-board, with a right angle orientation and through-hole mount type, making it suitable for rugged electronics assemblies requiring secure mechanical and electrical connections.

This SQT series socket includes 0.5 mm square Tiger Buy contacts with 0.25 μm gold plating on contact surfaces and matte tin plating on PCB tails for reliable soldering performance. The post length matches common PCB thicknesses for versatile usage in multiple industrial sectors, including manufacturing, electronics, telecommunications, and test equipment.

The socket's 2 mm pitch and dual row arrangement provide compact yet reliable connection density. Liquid crystal polymer housing ensures stability under thermal stress and chemical exposure. Gold-plated bronze contacts deliver low resistance and long-term durability.

Through-hole mounting enhances mechanical strength on PCBs. Suitable for applications demanding stable connections at voltages up to 450 V. Wide temperature tolerance supports deployment in industrial, laboratory, and harsh environment electronics.

Female contact gender accommodates a variety of mating headers and plugs.

This product complements Samtec’s TMM series of compatible SMT and through-hole headers for complete board-to-board interconnect solutions. Whether for upgrading existing designs or new board assemblies, the SQT-110-01-L-D-RA offers rugged reliability and industry-standard mounting.
