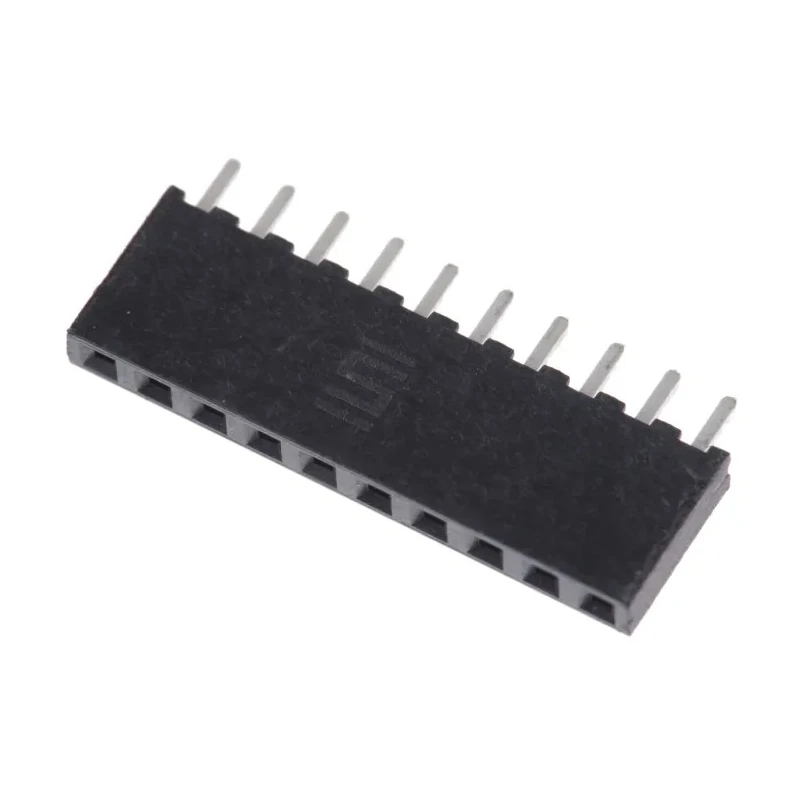

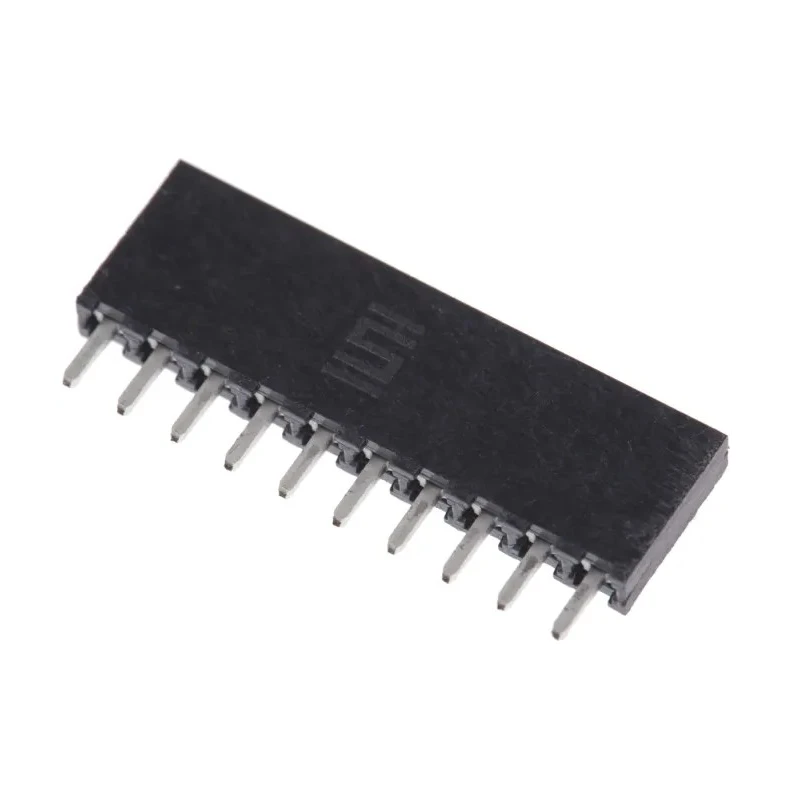

Samtec 10-Contact 1 Row 2 mm Pitch Board-to-Board Straight Through Hole PCB Socket SQT-110-01-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Temperature range | -55 → 125 °C |
| Model | SQT-110-01-L-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Current Rating | 5.5 A at 20 °C |
| Series | SQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
| SQT-1xx-01-L-S | single row vertical |
| SQT-1xx-01-L-x-RA | horizontal |
| SQT-1xx-01-L-D | double row vertical |
Key Features
- This PCB socket supports a 5.5 A current rating at 20 °C for reliable electrical performance.
- It features a solder termination type suitable for through-hole mounting.
- Constructed with a liquid crystal polymer housing and bronze contacts plated with gold for durability.
- Operating temperature ranges from -55 °C to 125 °C for rugged industrial use.
- The contact design ensures female gender connection in a straight orientation for easy assembly.
- Rated for 450 V voltage, meeting typical board-to-board connector requirements.
- Insulator material is black LCP, enhancing insulation and mechanical stability.
- Ideal for electronic component assembly requiring precision and ruggedness.
Product Description
Samtec SQT-110-01-L-S is a straight through hole PCB socket featuring 10 female contacts arranged in a single row with a 2 mm pitch. Constructed with a liquid crystal polymer housing and bronze contacts plated with 0.25 μm gold, this rugged socket ensures high reliability and durability for electronic connections in industrial and commercial applications. The solder termination type and through-hole mount make it suitable for secure board-to-board connections requiring stable electrical performance up to 5.5 A current at 20 °C and rated for 450 V.
The operating temperature range from -55 °C to 125 °C allows use in harsh environments and demanding conditions. The black LCP insulator material provides excellent electrical insulation and mechanical strength, while the straight orientation facilitates efficient assembly and integration. The socket comes with tiger buy 0.5 mm square contacts and features a post length of 2.29 mm ensuring proper board engagement.
This connector is ideal for various industrial electronics use cases including manufacturing, PCB assembly, instrumentation, power distribution, and other board-to-board application needs. The SQT series includes options for vertical, horizontal, and double row configurations making it versatile for multiple mechanical designs.
This PCB socket supports a 5.5 A current rating at 20 °C for reliable electrical performance. Features high-quality bronze contacts with gold plating for corrosion resistance. Made with liquid crystal polymer housing for durability and insulation.
Designed for through-hole mounting with solder termination type. Operating temperature range of -55 °C to 125 °C supports industrial applications. Rated for 450 V voltage to suit board-to-board needs. Black LCP insulator enhances stability and insulation.
Discover more high-performance PCB Sockets in the Samtec product line at EnvMart for demanding electronics and connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 5.5 A at 20 °C.
It is rated for a voltage of 450 V, suitable for board-to-board connections.
The operating temperature range is from -55 °C to 125 °C, allowing for use in harsh environments.
This model features a through-hole mounting type with a solder termination.
It is constructed with a liquid crystal polymer housing and bronze contacts plated with gold.
This PCB socket has 10 female contacts arranged in a single row.
The pitch size of the contacts is 2 mm.
It is designed as a board-to-board connector system.
The contacts are in a straight orientation, facilitating easy assembly.
The insulator material is black liquid crystal polymer (LCP), which enhances insulation and mechanical stability.
It is ideal for electronic component assembly, manufacturing, PCB assembly, instrumentation, and power distribution.
This model belongs to the SQT series, which includes various configurations such as vertical, horizontal, and double row options.
