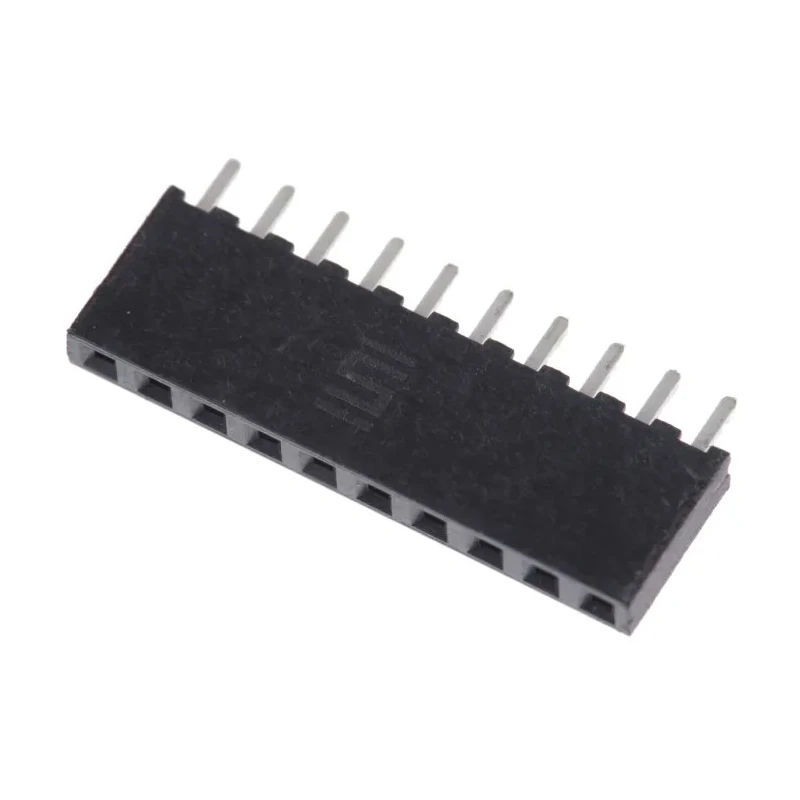

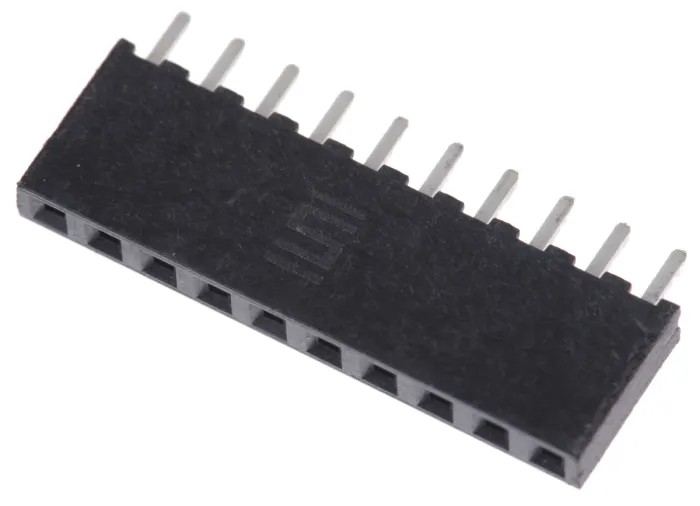

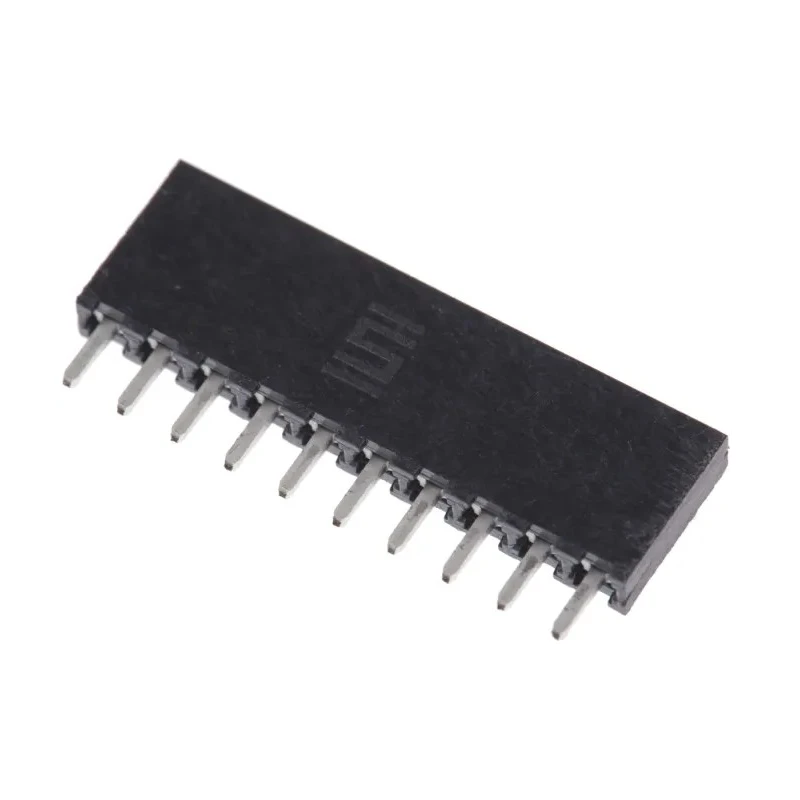

Samtec SQT Series 10-Contact 1 Row Straight Through Hole Board-to-Board PCB Socket 2 mm Pitch Solder SQT-110-01-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Temperature range | -55 → 125 °C |
| Model | SQT-110-01-L-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Current Rating | 5.5 A at 20 °C |
| Series | SQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
| SQT-1xx-01-L-S | single row vertical |
| SQT-1xx-01-L-x-RA | horizontal |
| SQT-1xx-01-L-D | double row vertical |
Key Features
- Features a 2 mm pitch for precise board alignment.
- Has 10 contacts arranged in a single row for compact design.
- Constructed with liquid crystal polymer housing and bronze contacts plated with gold for durability.
- Supports a current rating of 5.5 A at 20 °C and voltage rating of 450 V.
- Operating temperature ranges from -55°C to 125°C suitable for rugged applications.
- Designed for through-hole mount with straight orientation for ease of assembly.
- Offers robust board-to-board connection with Tiger Buy 0.5 mm square contacts and high-quality plating.
- Compatible with TMM SMT and through-hole mating headers for versatile use.
Product Description
Samtec SQT-110-01-L-S is a high-quality SQT Series PCB Socket designed for board-to-board connections with a 2 mm pitch and 10 contacts arranged in a single row. This straight through hole socket is engineered with a liquid crystal polymer black housing and bronze contacts gold plated to ensure reliable electrical performance and corrosion resistance.
With an operating current rating of 5.5 A at 20 °C and a voltage rating of 450 V, this socket is suitable for demanding electronic applications in industrial, electronics manufacturing, and power connector use cases. It operates reliably under temperature extremes from -55 °C to 125 °C, making it ideal for rugged environments requiring stable connections throughout a broad temperature range.
The SQT Series features 0.5 mm square contacts with 0.25 μm gold plating providing excellent conductivity and mechanical durability. The through hole mount style with straight orientation simplifies PCB assembly and integration. This socket is compatible with typical TMM SMT and through-hole headers for flexible design options.
10-contact single row configuration enables compact board-to-board interface design. Black liquid crystal polymer housing provides insulation and mechanical strength. Contact gold plating enhances corrosion resistance and signal integrity.
Rated for 5.5 A current and 450 V voltage ensures high-performance power and data transmission. Wide operating temperature range supports industrial and commercial electronic applications. Straight through hole mount for durable and stable PCB connection.
Compatible with standard mating headers for flexible system designs.
This PCB socket is ideal for use in Electronic Components, Power Connectors, and PCB socket assemblies across industrial and electronics sectors. Its rugged design and reliable performance support applications in manufacturing, testing, and board assembly environments.
Explore additional connectors and PCB socket options to find the ideal fit for your electronics projects and industrial needs with EnvMart’s extensive connector range.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SQT-110-01-L-S PCB socket has a current rating of 5.5 A at 20 °C.
This model has a voltage rating of 450 V.
It operates within a temperature range of -55 °C to 125 °C.
The SQT-110-01-L-S features 10 contacts arranged in a single row.
This socket is designed for through-hole mounting.
It is constructed with a liquid crystal polymer housing and bronze contacts plated with gold.
The contacts in this model have a pitch of 2 mm.
Yes, it is compatible with TMM SMT and through-hole mating headers.
This PCB socket has a straight orientation for ease of assembly.
The SQT-110-01-L-S uses a solder termination type.
The contacts in this PCB socket are female.
This model belongs to the SQT Series.
