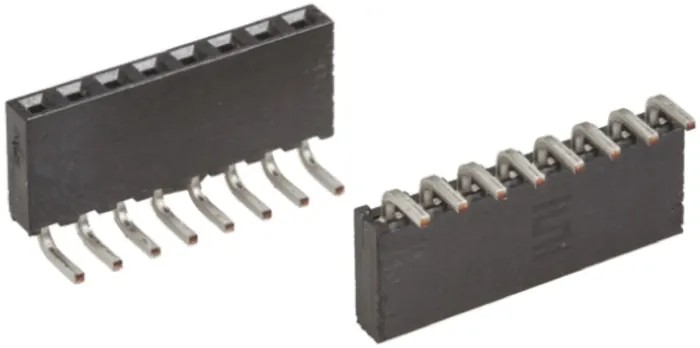

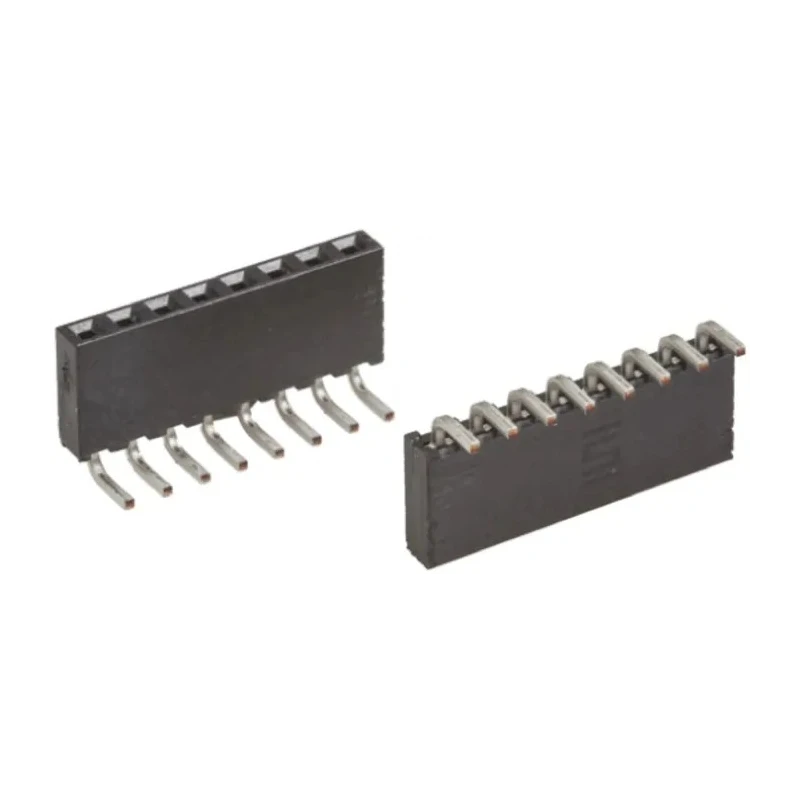

Samtec SQT Series Right Angle Through Hole PCB Socket 6-Contact 1 Row 2 mm Pitch Solder SQT-106-01-L-S-RA

Name: Samtec SQT Series Right Angle Through Hole PCB Socket 6-Contact 1 Row 2 mm Pitch Solder SQT-106-01-L-S-RA
Brand: Samtec
SKU: 366837
Price: 2.09 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	450V
Brand	Samtec
Orientation	Right Angle
Current	5.5A
Temperature range	-55 → 125 °C
Model	SQT-106-01-L-S-RA
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Current Rating	5.5 A at 20 °C
Series	SQT
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Female
Connector System	Board-to-Board
Insulator Material	Black LCP
SQT-1xx-01-L-S	single row vertical
SQT-1xx-01-L-x-RA	horizontal
SQT-1xx-01-L-D	double row vertical

Key Features

Constructed with black Liquid Crystal Polymer housing for durability and insulation.
Rated for 5.5 A current at 20 °C and 450 V voltage for reliable electrical performance.
Utilizes bronze female contacts plated with 0.25 μm gold for superior conductivity and corrosion resistance.
Designed for through-hole right angle mounting suitable for board-to-board connection systems.
Operates reliably in temperature ranges from -55 °C to 125 °C for industrial applications.
Features Tiger Buy 0.5 mm square contacts and matte tin plating on PCB tails for enhanced mechanical stability.
Compatible with mating TMM SMT and through-hole headers for flexible connectivity.

Product Description

Samtec SQT-106-01-L-S-RA is a right angle through hole PCB socket from the SQT Series, designed for secure and reliable board-to-board connections in demanding electronic assemblies.

This model offers a single row of 6 female contacts with a 2 mm pitch and solder termination, facilitating robust electrical and mechanical connection through a through-hole mount.

The socket housing is molded from black Liquid Crystal Polymer (LCP), providing excellent insulation and stability under a broad temperature range from -55 °C to 125 °C, making it ideal for harsh industrial environments.

The bronze contacts are plated with 0.25 μm gold over 0.5 mm square tiger buy contacts, ensuring optimum electrical conductivity and corrosion resistance, rated for 5.5 A current at 20 °C and a voltage of 450 V.

Black Liquid Crystal Polymer housing for high insulation and durability. 6-contact single row layout with 2 mm pitch for precise board-to-board connection. Right angle orientation enables compact PCB designs. Gold-plated bronze contacts enhance conductivity and longevity.

Operating temperature range of -55 °C to 125 °C supports diverse industrial applications. Through hole mounting ensures secure mechanical fitment on PCB. Compatible with mating TMM SMT and through-hole headers for versatile uses.

This PCB socket is commonly used in electronic, industrial, laboratory, and manufacturing settings for reliable electrical interconnections and efficient assembly processes.

Experience enhanced productivity and connection integrity with the Samtec SQT Series PCB Sockets, engineered to meet stringent industrial standards and support high-performance electronic designs.
