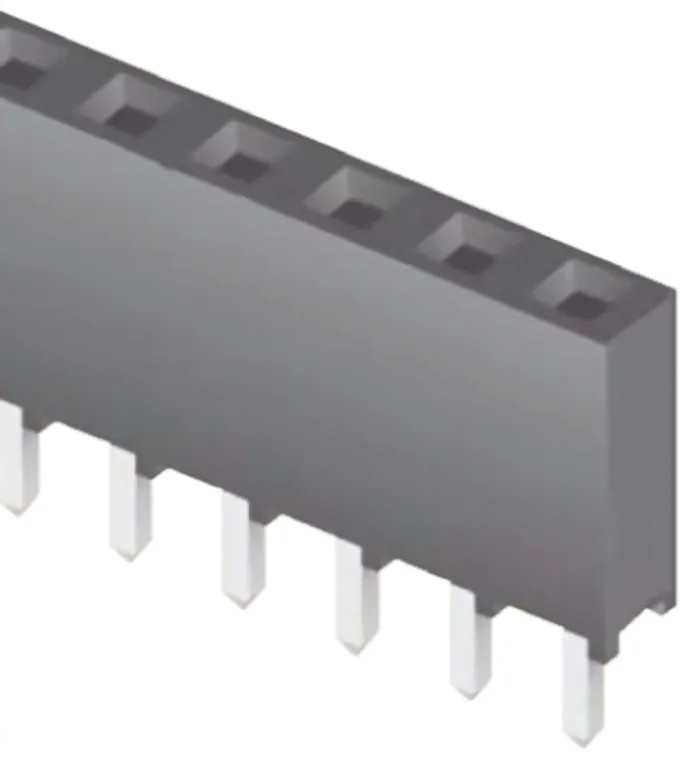

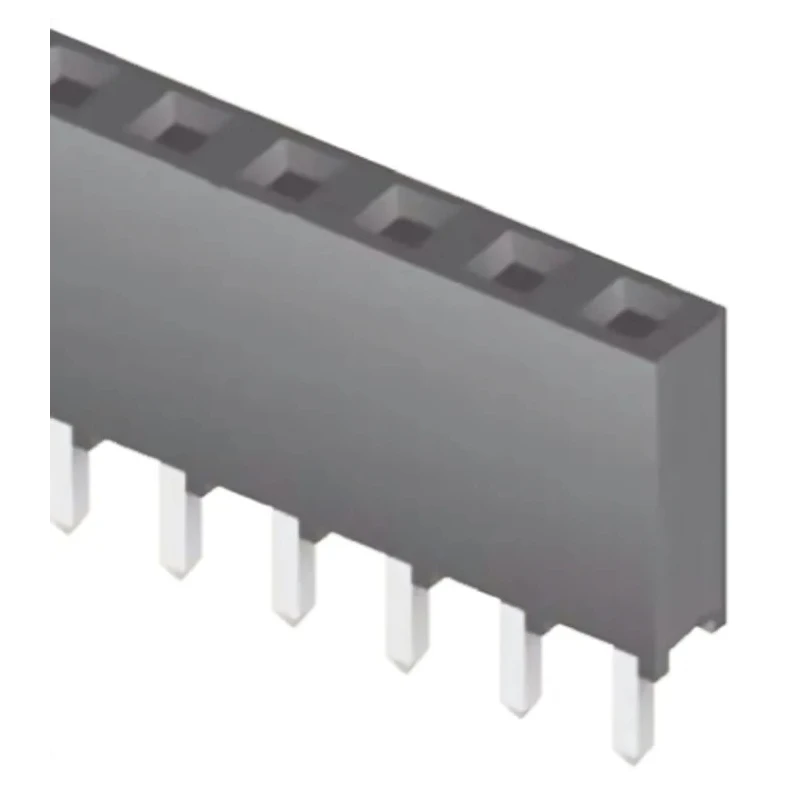

Samtec Straight Through Hole Board-to-Board PCB Socket 5-Contact, 1 Row, 2 mm Pitch, 450V, 5.5A Current Rating SQT-105-01-L-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Temperature range | -55 → 125 °C |
| Model | SQT-105-01-L-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Current Rating | 5.5 A at 20 °C |
| Series | SQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
| SQT-1xx-01-L-S | single row vertical |
| SQT-1xx-01-L-x-RA | horizontal |
| SQT-1xx-01-L-D | double row vertical |
Key Features
- Features a rugged Liquid Crystal Polymer housing for durability.
- Contact material is bronze with gold plating for reliable conductivity.
- Supports operating temperatures from -55°C to 125°C.
- Rated for 5.5 Amp current at 20°C and a voltage of 450V.
- Designed with female contact gender and through-hole mount style.
- Connector orientation is straight for efficient PCB connections.
- Insulator is constructed from black Liquid Crystal Polymer material.
- Post length measures 2.29 mm and above board height is 6.35 mm.
Product Description
Samtec SQT-105-01-L-S is a high-quality straight through hole PCB socket designed for board-to-board connections with a 2 mm pitch. This single row, 5-contact socket offers a current rating of 5.5 A at 20°C and supports voltages up to 450 V, making it suitable for demanding industrial and electronic applications.
The housing is molded from rugged Liquid Crystal Polymer (LCP), ensuring mechanical strength and thermal stability within an operating temperature range of -55°C to 125°C. Contacts are manufactured from bronze with a premium 0.25 μm gold plating on the contact area for excellent corrosion resistance and conductivity, while the PCB tails feature matte tin plating.
Its through-hole mounting type and straight orientation support reliable soldering and durable mechanical fastening on printed circuit boards. The connector system facilitates board-to-board interfacing with female contact gender providing secure engagement with mating components.
The SQT series sockets come with a post length of 2.29 mm and an above board height of 6.35 mm, providing compact yet robust connectivity solutions. This socket is compatible with mating TMM SMT and through-hole headers typically used in commercial and industrial equipment, enhancing versatility and ease of integration.
Applications for this socket include electronic manufacturing, industrial automation, telecommunications equipment, and other uses requiring stable electrical connectors with high reliability under thermal and mechanical stresses.
Features a rugged Liquid Crystal Polymer housing for durability. Contact material is bronze with gold plating for reliable conductivity. Supports operating temperatures from -55°C to 125°C. Rated for 5.5 Amp current at 20°C and a voltage of 450V.
Designed with female contact gender and through-hole mount style. Connector orientation is straight for efficient PCB connections. Insulator is constructed from black Liquid Crystal Polymer material. Post length measures 2.29 mm and above board height is 6.35 mm.
Ideal for industrial electronics requiring strong and precise PCB connections. Compatible with mating TMM SMT and through-hole headers. Explore more PCB Sockets in the Samtec product range for comprehensive connectivity solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5.5 A at 20 °C.
It supports a maximum voltage of 450V.
The operating temperature range is from -55°C to 125°C.
The housing is made from Liquid Crystal Polymer, and the contacts are bronze with gold plating for conductivity.
This socket features 5 contacts in a single row configuration.
It uses a through-hole mounting type for reliable soldering.
The pitch of the contacts is 2 mm.
The above board height measures 6.35 mm.
The post length is 2.29 mm.
It has a straight orientation for efficient PCB connections.
It is suitable for applications in electronic manufacturing, industrial automation, and telecommunications equipment.
Yes, it is compatible with mating TMM SMT and through-hole headers typically used in commercial and industrial equipment.
