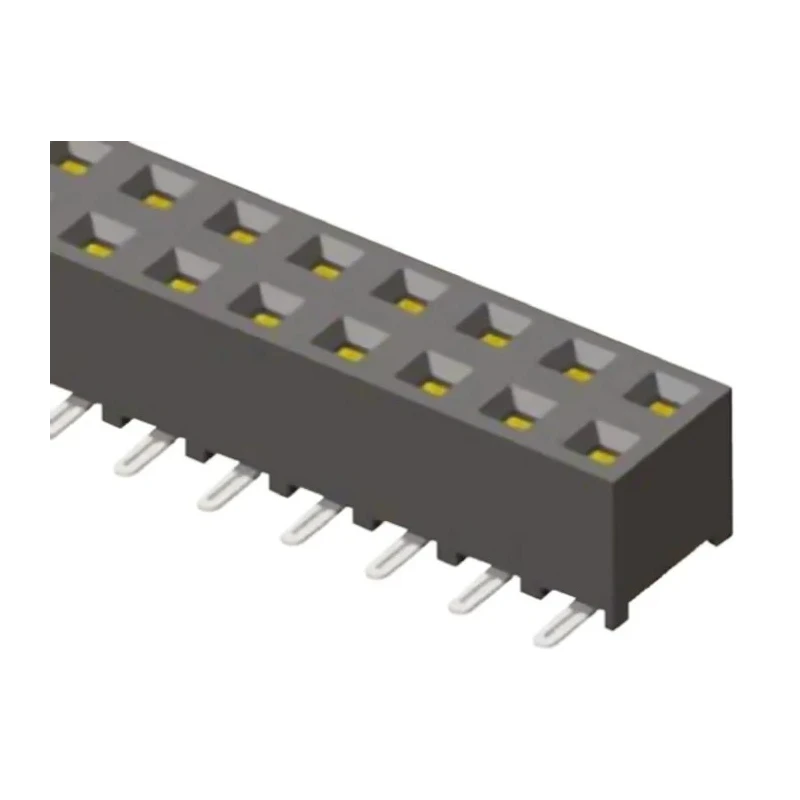

Samtec SMM Series Straight Surface PCB Socket 30-Contact 2 Row 2 mm Pitch Solder SMM-115-02-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.9A |
| Temperature range | -55 → 125 °C |
| Model | SMM-115-02-S-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.27mm |
| Insulator Material | Black LCP |
Key Features
- Constructed with black liquid crystal polymer housing for robust performance.
- Operational temperature range from -55°C to 125°C suits diverse environments.
- Utilizes beryllium copper alloy contacts plated with 0.76 μm gold ensuring reliable conductivity.
- Mount type is surface mount with a straight orientation for board-to-board connections.
- Row pitch measures 1.27 mm, accommodating compact designs.
- Compatible with Samtec TMM SMT headers and through-hole headers for versatile applications.
- Ideal for electronics manufacturing, industrial equipment assembly, and PCB prototyping.
Product Description
Samtec SMM-115-02-S-D is a high-quality straight surface PCB socket equipped with 30 contacts in a 2-row configuration with a 2 mm pitch. It features solder termination and is designed to deliver reliable board-to-board connections with high electrical performance.
The housing is manufactured from durable black liquid crystal polymer, providing excellent mechanical strength and stability. The contacts are made from beryllium copper alloy with a 0.76 μm gold plating on the contact area ensuring low contact resistance and enhanced durability, supported by matte tin plating on the PCB tails for solderability.
This socket supports a maximum operating voltage of 350 V and current rating of 3.9 A. It operates reliably across a wide temperature range of -55°C to 125°C, making it suitable for harsh environmental conditions typically encountered in industrial and commercial electronics applications.
The surface mount housing with a straight orientation facilitates easy assembly in SMT processes. The 1.27 mm row pitch allows for compact, space-saving designs in high-density PCB layouts.
Samtec's SMM series sockets are compatible with mating TMM SMT and through-hole headers, enhancing modularity and flexible design options in electronics manufacturing. Constructed with black liquid crystal polymer housing for durable use.
Rated for 350 V voltage and 3.9 A current for reliable performance. Wide operating temperature range from -55°C to 125°C. Beryllium copper alloy contacts with gold plating for enhanced conductivity. Surface mount, straight orientation supports modern PCB assembly.
2 rows, 30 contacts with 2 mm pitch for precise board connections. Suitable for industrial, commercial, and manufacturing PCB applications.
This product is a vital component for PCB socket needs in industrial and manufacturing environments, improving production efficiency and reliability in electronic assemblies. Explore more Samtec PCB Sockets and connectors on EnvMart for broad connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this model is 350 V.
This socket has a current rating of 3.9 A.
It operates reliably across a temperature range of -55°C to 125°C.
The housing is made from black liquid crystal polymer, and the contacts are constructed from beryllium copper alloy with gold plating.
This model features 30 contacts in a 2-row configuration.
The pitch size is 2 mm, with a row pitch of 1.27 mm.
It utilizes a solder termination type for secure connections.
Yes, it is compatible with Samtec TMM SMT headers and through-hole headers.
This socket has a straight orientation for board-to-board connections.
It is suitable for electronics manufacturing, industrial equipment assembly, and PCB prototyping.
The connector system for this socket is board-to-board.
The country of origin for this product is India.
