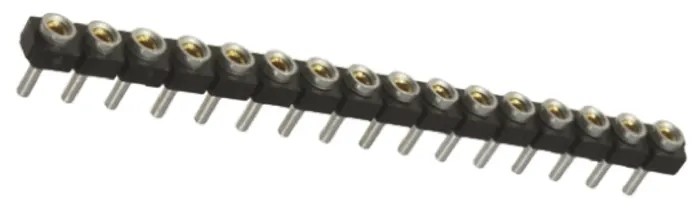

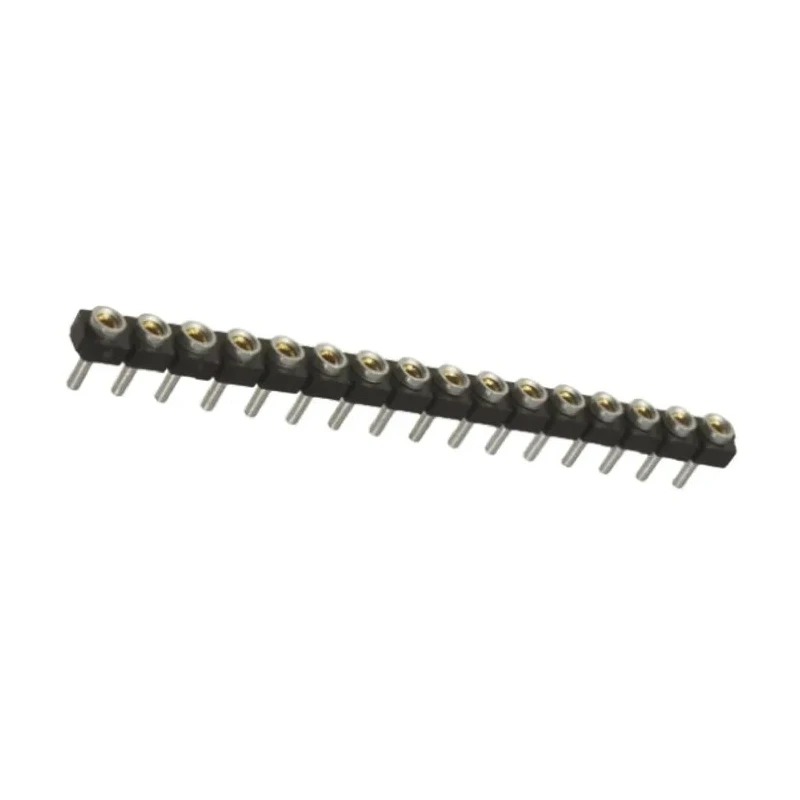

Samtec SL Series Straight Through Hole PCB Socket 16-Contact 1 Row 2.54 mm Pitch Solder SL-116-T-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SL-116-T-10 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| BBL series header terminal strips | see stock number 766-6367 typically |
| BBS series header terminal strips | see stock number 766-6442 typically |
Key Features
- This PCB socket features 16 female contacts in a single row configuration.
- It has a standard 2.54 mm pitch suitable for many design applications.
- The contact material is beryllium copper alloy plated with gold for reliable conductivity.
- The housing is made of liquid crystal polymer ensuring durability and heat resistance.
- The socket supports current rating up to 12A with a temperature range from -55°C to 125°C.
- It mounts using through-hole technique providing strong mechanical stability.
- Compatible with BBL, BBS, and TS series header terminal strips for flexible system integration.
- The low-profile design is ideal for compact PCB assemblies.
Product Description
Samtec SL-116-T-10 SL Series Straight Through Hole PCB Socket is a precision electronic component designed for board-to-board connections with high reliability and performance. Featuring 16 female contacts arranged in a single row with a 2.54 mm pitch, this socket provides secure solder termination via through-hole mounting. It is constructed from robust liquid crystal polymer housing paired with beryllium copper alloy contacts plated in gold to assure excellent conductivity and corrosion resistance.
The socket supports applications carrying currents up to 12 amps and operates effectively in harsh environments with temperatures ranging from -55°C to 125°C. Its low-profile design makes it well suited for compact electronic assemblies where board height is limited. The SL series sockets mate perfectly with BBL, BBS, and TS series header terminal strips, expanding its application versatility.
Manufactured to RoHS standards, this connector is ideal for industrial, manufacturing, commercial, and electronic assembly applications needing reliable interconnect solutions. The product's engineering quality supports use in PCB Sockets requiring durability, electrical performance, and compact form factors.
This PCB socket includes 16 female contacts providing secure board-to-board connection. The 2.54 mm pitch ensures compatibility with common PCB layouts and headers. Gold-plated beryllium copper alloy contacts provide low contact resistance and durability.
Housing of liquid crystal polymer offers thermal and mechanical stability. Forward compatible with multiple header series for system flexibility. Rated for 12A current with wide operational temperature from -55 to 125°C.
Through-hole mount offers rugged mechanical and electrical reliability. Low-profile design supports space-efficient PCB assemblies. Fully RoHS compliant for environmental and safety standards.
Choose this Samtec SL series PCB socket SL-116-T-10 for high-quality and reliable electronic connections in industrial, laboratory, commercial, and manufacturing PCB applications. Explore the Electronics & Electricals category at EnvMart for more connectors and electronic components to meet your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 12A.
It operates effectively within a temperature range of -55°C to 125°C.
The housing is made from liquid crystal polymer, and the contacts are beryllium copper alloy plated with gold.
This PCB socket features 16 female contacts arranged in a single row configuration.
The pitch size for this model is 2.54 mm, making it suitable for various PCB layouts.
It utilizes a through-hole mounting technique, providing strong mechanical stability.
Yes, it is manufactured to be RoHS compliant, meeting environmental and safety standards.
It is compatible with BBL, BBS, and TS series header terminal strips.
The orientation of this socket is straight, designed for board-to-board connections.
The connector system is designed for board-to-board connections, enhancing its application versatility.
It is suitable for industrial, laboratory, commercial, and manufacturing PCB applications requiring reliable interconnect solutions.
The specific weight and dimensions of this model are not provided in the available data.
