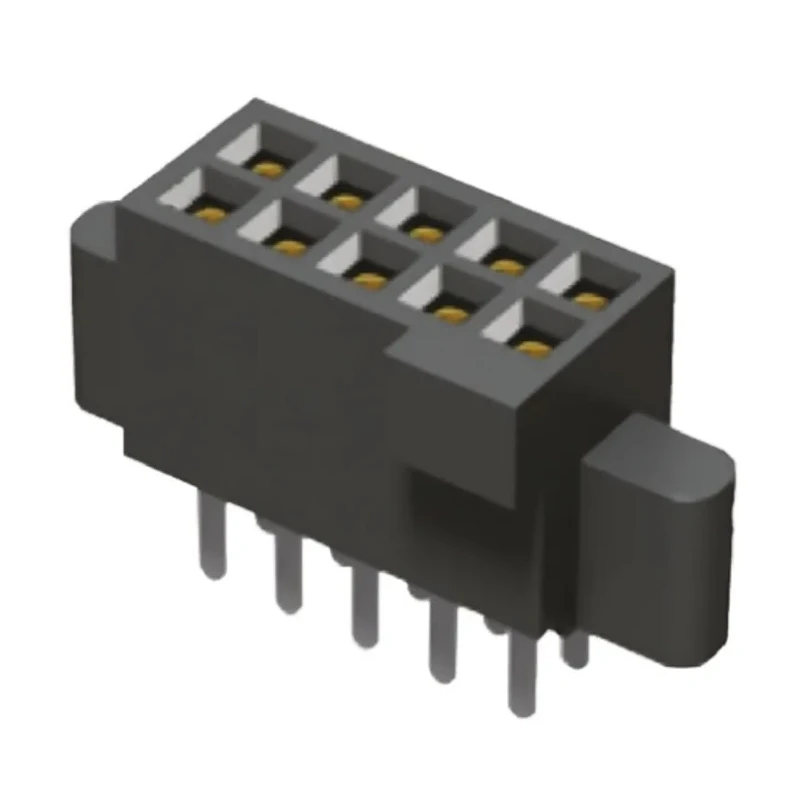

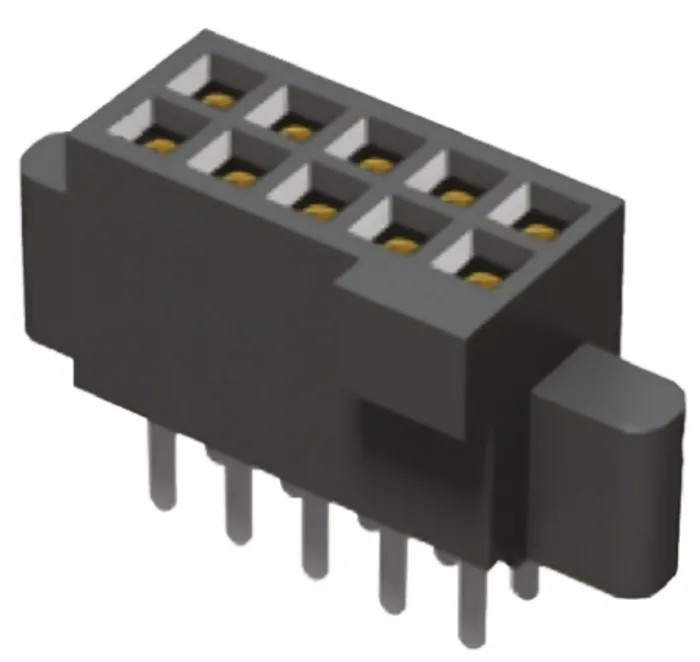

Samtec SFM Series Straight Through Hole PCB Socket 30-Contact 2 Row 1.27 mm Pitch Solder SFM-115-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SFM-115-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Cable |
| Stacking Height | 12mm |
Key Features
- Constructed with Liquid Crystal Polymer housing for durability.
- Supports a current rating of 12 A and operating voltage of 350 V.
- Female contact gender with 0.25 μm gold-plated Beryllium Copper Alloy contacts.
- Operates reliably from -55°C to 125°C temperature range.
- Through hole mount type with straight orientation and stacking height of 12 mm.
- Compatible with board-to-board and cable connector systems.
- Ideal for high-density PCB applications requiring reliable electrical connectivity.
- RoHS compliant with no additional approvals applicable.
Product Description
Samtec SFM-115-01-L-D is a high-quality Straight Through Hole PCB Socket from the SFM Series, designed for applications requiring 30 contacts arranged in 2 rows with a 1.27 mm pitch. The socket utilizes Liquid Crystal Polymer housing which ensures durability and reliability in demanding industrial electronic assemblies.
The connector supports a current rating of 12 A and voltage up to 350 V, making it suitable for robust power connections on printed circuit boards. Its female contacts are fabricated from Beryllium Copper Alloy with a 0.25 μm gold plating which enhances conductivity and corrosion resistance.
Operating temperature ranges from -55°C to 125°C, providing stability across a wide array of environmental conditions. The through hole mount type with straight orientation and a stacking height of 12 mm facilitates secure mechanical and electrical connection, compatible with board-to-board and cable systems.
This PCB socket is frequently employed in industrial, manufacturing, electronics, and telecommunications sectors where reliable board-to-board connections are critical. It mates with related series such as the TFM, FTS, and FTSH headers, enhancing versatility in design and assembly.
Liquid Crystal Polymer housing material ensures robustness and temperature resilience. Gold-plated Beryllium Copper Alloy contacts provide excellent electrical performance. Through hole mounting type with straight contact orientation enables secure multi-row connections.
Supports high current and voltage ratings for demanding electronic applications. Wide operating temperature supports usage in harsh and variable climates. Compatible with various connector systems including board-to-board and cable types.
Ideal for industrial, electronics manufacturing, telecommunications, and laboratory applications. Meets RoHS compliance with no additional certifications required.
This Samtec SFM Series PCB Socket is designed to improve assembly efficiency and electrical reliability in electronic component production. Discover more about PCB connectors and sockets in the Electronics & Electricals category at EnvMart for a comprehensive selection of high-quality industrial components.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12 A.
It operates at a maximum voltage of 350 V.
This unit operates reliably within a temperature range of -55°C to 125°C.
The contacts are arranged with a pitch of 1.27 mm.
It features 30 contacts arranged in 2 rows.
It utilizes a through hole mount type with straight orientation.
The housing is constructed from Liquid Crystal Polymer, ensuring durability.
The contacts are made from Beryllium Copper Alloy and are gold-plated.
Yes, it is RoHS compliant with no additional approvals required.
It is compatible with board-to-board and cable connector systems.
The stacking height is 12 mm.
The country of origin for this model is India.
