Samtec SEAF Series Straight Surface PCB Socket 160-Contact 8 Row 1.27mm Pitch Solder SEAF-20-05.0-S-08-2-A-K-TR

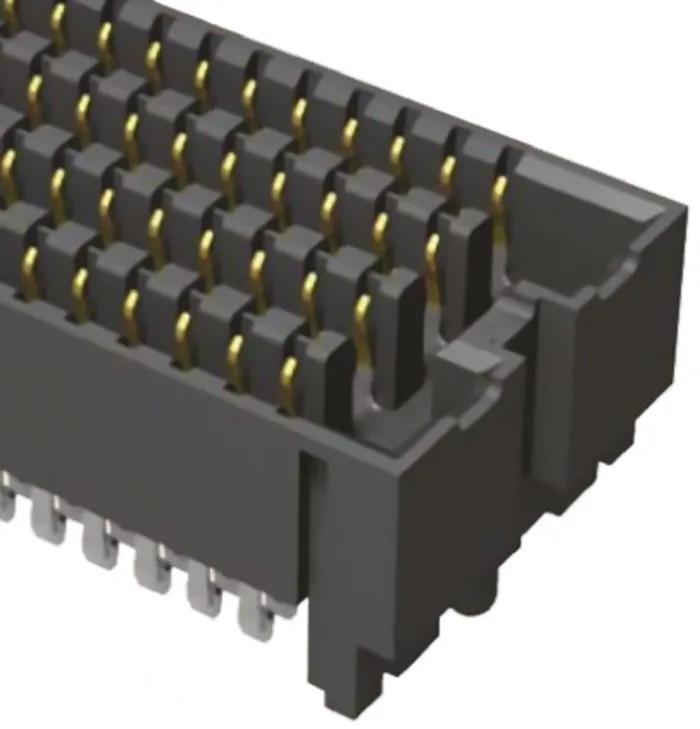

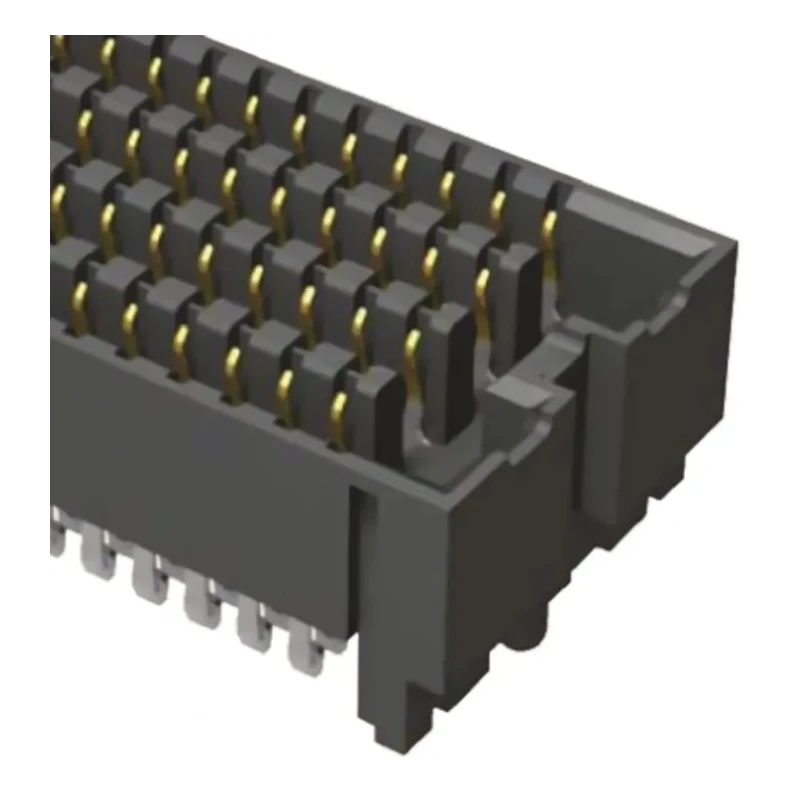

Samtec SEAF-20-05.0-S-08-2-A-K-TR is a Straight Surface PCB Socket designed for demanding electronic applications requiring high density and high speed board-to-board connections. It features 160 female contacts arranged in 8 rows with a 1.27 mm pitch, making it ideal for compact, high-performance electronic assemblies where reliability and signal integrity are paramount.

The housing is made from Liquid Crystal Polymer, offering excellent mechanical strength, thermal stability, and chemical resistance. This connector is mounted via surface solder termination to ensure robust installation on printed circuit boards.

Rated for 240 volts and 2.3 amperes, the socket ensures safe operation under typical electrical loads encountered in industrial, laboratory, telecommunications, and computing applications. The stacking height of 18.5 mm supports versatile board stacking configurations.

Using Samtec's SEARAY™ technology, this socket supports frequency performance up to 12.5 GHz at -3 dB, suitable for high-speed data transmission applications. The contact system utilizes 0.76 µm gold plating on the contact areas with matte tin on the tails for longevity and superior conductivity. Contact resistance is rated at 5.5 mΩ, providing consistent electrical performance.

The device operates reliably across a broad temperature range from -55°C to 125°C, making it suitable for harsh environments. The straight orientation and 2.5 mm row pitch help maintain precise mating alignment, simplifying installation and ensuring consistent contact.

Constructed with Liquid Crystal Polymer housing for durability. Features 160 female copper contacts in 8 rows. Surface mount solder termination for secure PCB attachment. Supports up to 240V and 2.3A current rating. Stacking height of 18.5 mm for compact configurations.

Gold plated contact areas ensure low resistance and high reliability. Wide operating temperature range from -55°C to 125°C. Contact resistance of 5.5 mΩ for consistent signal quality. High speed SEARAY™ technology supports up to 12.5 GHz performance.

Straight orientation and 1.27 mm pitch for high-density board-to-board connections.

This Samtec SEAF Series PCB Socket is suitable for industrial, telecommunications, computing, laboratory, and manufacturing applications where durable, high-performance interconnect solutions are required. The robust design ensures extended lifecycle and reliable electrical contacts for complex electronic assemblies. Explore other related components in our PCB Sockets category for complementary products.
