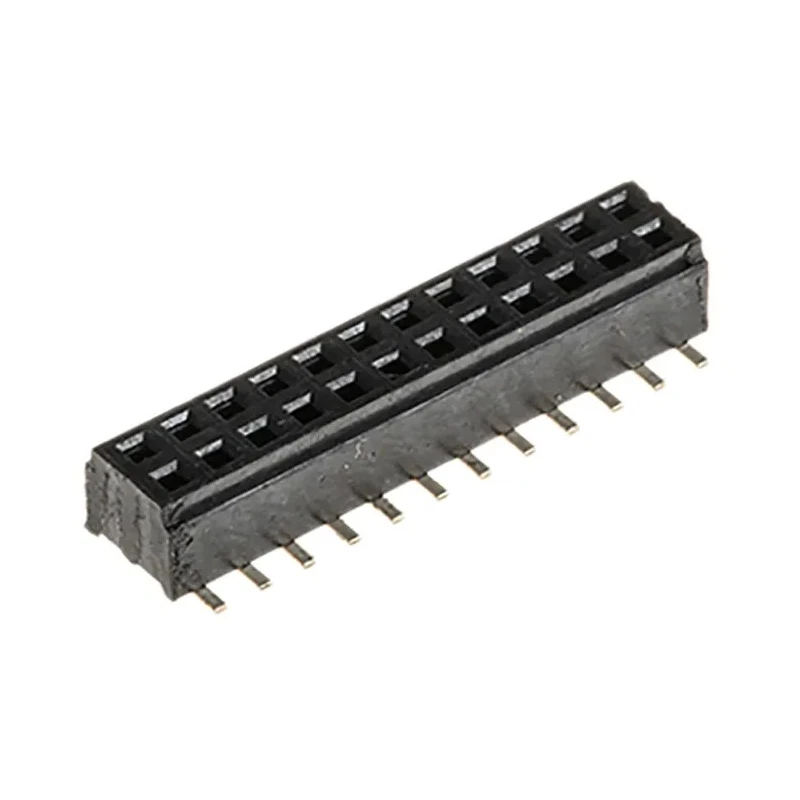

Samtec CLM Series Straight Surface PCB Socket, 24-Contact, 2 Row, 1 mm Pitch, 270 V, 12 A, Liquid Crystal CLM-112-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 12A |
| Model | CLM-112-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- This PCB socket features a liquid crystal polymer housing for robust performance.
- The contact material is bronze with 0.25 μm gold plating to ensure reliable conductivity.
- It supports surface mount technology with straight orientation for board-to-board connections.
- Operating temperature ranges from -55 °C to 125 °C, suitable for demanding environments.
- The socket mates with FTMH Series headers, enhancing modular compatibility.
- Its low profile height of only 2.26 mm enables compact PCB designs.
- The termination type is solder, ensuring secure and stable connections.
- The CLM series is designed as rugged micro sockets for industrial and electronic applications.
Product Description
Samtec CLM-112-02-L-D is a Straight Surface PCB Socket in the CLM Series featuring 24 contacts arranged in 2 rows with a 1 mm pitch. It is designed to operate at 270 V and handle currents up to 12 A, making it suitable for a wide range of industrial electronic applications.
This socket includes a black Liquid Crystal Polymer (LCP) housing known for its durability and thermal stability. The bronze contact pins are plated with 0.25 μm of gold on the Tiger Claw contacts, and tin on the PCB tails, ensuring excellent electrical conductivity and corrosion resistance.
Its surface mount technology (SMT) style and straight orientation provide reliable board-to-board connections, ideal for applications requiring secure and compact interfacing. Operating temperature ranges from -55 °C to 125 °C, making it well-suited for demanding environments in automotive, industrial, and electronic manufacturing use cases.
The CLM Series sockets mate with compatible FTMH Series headers, allowing for flexible PCB design options. The socket’s low profile height of 2.26 mm facilitates space-saving circuit layouts.
This product offers a rugged micro socket design for precise and durable PCB connections. It features solder termination, ensuring stable mechanical and electrical bonds with the PCB. The gold-plated contacts increase reliability and reduce signal loss in high-frequency applications.
The LCP housing material provides high resistance to thermal and mechanical stress. Ideal for use in industrial machinery, telecommunications, instrumentation, and power connectors. Samtec continues to support advanced electronic component designs through the CLM Series, enabling innovation in compact and high-performance PCB assemblies.
Explore more high-quality connectors and sockets in the Electronics & Electricals category on EnvMart for your industrial and laboratory needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 270 V.
This socket can handle currents up to 12 A.
The operating temperature range is from -55 °C to 125 °C.
It features a solder termination type, ensuring stable connections with the PCB.
This model has a 1 mm pitch and features 24 contacts arranged in 2 rows.
The housing is made from Liquid Crystal Polymer (LCP), and the contacts are bronze with 0.25 μm gold plating.
It mates with FTMH Series headers, allowing for flexible design options.
This socket uses a surface mount type for installation.
The low profile height of this model is 2.26 mm, facilitating compact PCB designs.
This model is suitable for industrial machinery, telecommunications, instrumentation, and power connectors.
The country of origin for this PCB socket is India.
The connector system type for this model is board-to-board.
