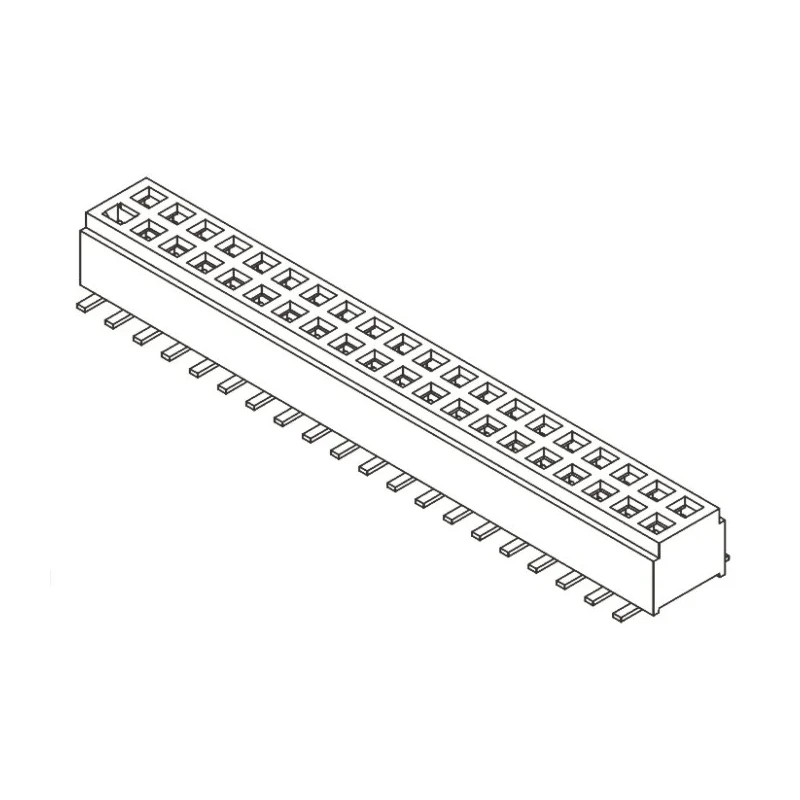

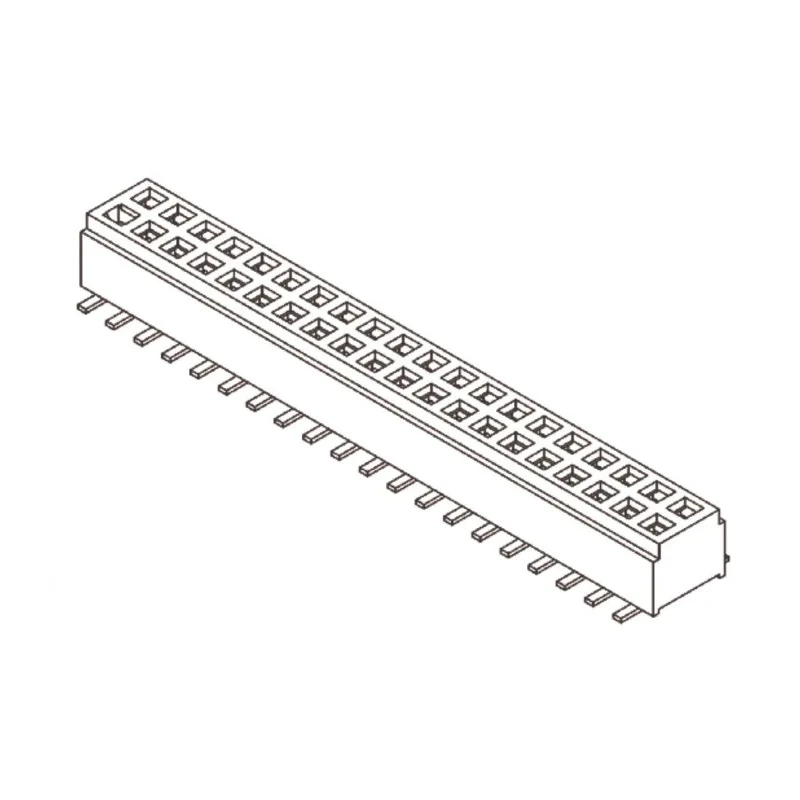

Samtec CLM Series Straight Surface PCB Socket, 10-Contact, 2 Row, 1 mm Pitch, 270V, 12A, Gold-Plated Bronze CLM-105-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 12A |
| Model | CLM-105-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Constructed with a Liquid Crystal Polymer housing ensuring durability and stability.
- Includes bronze contacts with 0.25 μm gold plating for reliable conductivity.
- Designed for surface mount with a straight orientation optimizing PCB layouts.
- Operates reliably within temperature range of -55°C to 125°C.
- Low profile height of 2.26 mm supports compact electronic assemblies.
- Compatible with FTMH Series headers for versatile board-to-board solutions.
- Rated for 270V and 12A ensuring safe and efficient power transfer.
- Suitable for industrial, electronic, and manufacturing board assembly applications.
Product Description
Samtec CLM-105-02-L-D is a high-quality Straight Surface PCB Socket designed for rugged board-to-board connections in electronic assemblies. This model features 10 contacts arranged in 2 rows with a precise 1 mm pitch, ensuring compact and reliable connectivity.
The socket utilizes a durable Liquid Crystal Polymer (LCP) black housing material, providing excellent mechanical stability and resistance in harsh industrial environments. The contact material is bronze with a 0.25 μm gold plating on the Tiger Claw contacts, enhancing electrical conductivity and corrosion resistance. The PCB tails are plated with tin for improved solderability.
Designed for surface mount technology (SMT), the socket has a straight orientation and a low profile height of only 2.26 mm, enabling efficient space utilization on printed circuit boards. It supports a maximum voltage of 270V and a current rating of 12A, making it suitable for demanding power and signal applications.
The operating temperature range spans from -55°C to 125°C, ensuring dependable performance in a wide variety of industrial, commercial, and manufacturing settings including electronics production, automated machinery, and high-reliability equipment.
This CLM Series socket mates with FTMH Series headers (stock number 766-8975) to provide versatile board-to-board interconnections. It is typically supplied in tubes ready for insertion into production lines to improve assembly efficiency and reduce handling.
Constructed with rugged Liquid Crystal Polymer housing for durability. Bronze contacts with gold plating offer superior conductivity. Surface mount, straight orientation supports compact PCB design. Low profile height of 2.26 mm suits tight spaces.
Rated for 270V and 12A electrical loads. Wide operating temperature range from -55°C to 125°C. Compatible with FTMH Series headers for board-to-board connections. Suitable for use in industrial and electronic manufacturing environments.
Explore more PCB Sockets and connectors at EnvMart for your advanced electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 270V, ensuring safe power transfer in various applications.
It has a current rating of 12A, suitable for demanding power applications.
The operating temperature range spans from -55°C to 125°C, allowing for reliable performance in extreme conditions.
The contacts are arranged with a pitch of 1 mm, which facilitates compact board designs.
This model features 10 contacts arranged in 2 rows, providing multiple connection points for board-to-board applications.
It is constructed with a Liquid Crystal Polymer housing and bronze contacts, which are plated with 0.25 μm gold for improved conductivity.
Yes, it is designed for surface mount technology (SMT) with a straight orientation, making it ideal for compact PCB layouts.
The termination type for this model is solder, ensuring a secure connection to the PCB.
It is compatible with FTMH Series headers, allowing for versatile board-to-board interconnections.
The low profile height of this model is 2.26 mm, which is beneficial for space-constrained electronic assemblies.
The country of origin for this socket is India, indicating its manufacturing location.
It is suitable for industrial, electronic, and manufacturing board assembly applications, providing reliable connectivity in various settings.
