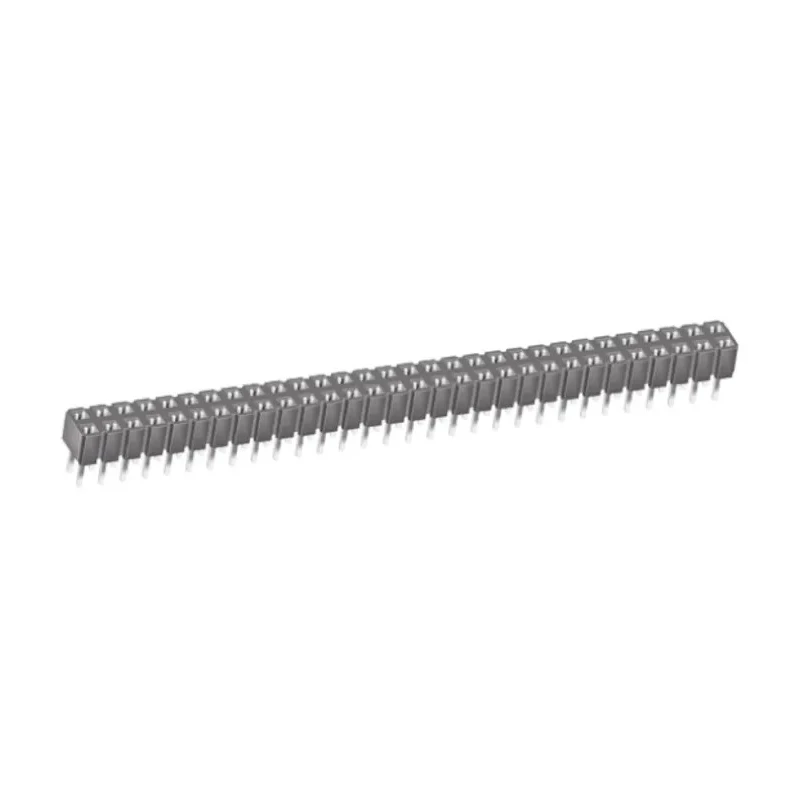

Samtec CES Series Straight Through Hole PCB Socket, 60-Contact, 2 Row, 2.54 mm Pitch, 12A Current, 333V CES-130-01-T-D

Samtec CES-130-01-T-D is a high-quality straight through-hole PCB socket designed for board-to-board applications. It features 60 contacts arranged in 2 rows with a standardized 2.54 mm pitch, facilitating secure and reliable electrical connections on printed circuit boards. The socket assembly integrates a black glass filled polyester housing, providing excellent mechanical strength and insulation properties suitable for industrial and commercial electronics.

The contact pins are made of phosphor bronze and finished with matte tin plating, ensuring optimal conductivity and resistance to corrosion. This component supports a current rating of 12A and voltage of up to 333V, which is suitable for a broad range of electronic devices and assemblies.

Its low profile design, with a solder tail length of 3.25 mm, helps in minimizing PCB space usage, making it ideal where compact circuit layouts are critical. The through-hole mounting ensures sturdy mechanical attachment to the PCB along with reliable electrical performance across temperature ranges from -55°C to 105°C, accommodating harsh industrial environments.

This socket is part of the CES series, known for compatibility with several header types such as TLW, TSM, and TSW series low profile square post headers, providing flexibility in design and assembly.

The product meets RoHS compliance, emphasizing environmental safety and conformity with global electronic component standards. Supports a current rating of 12A and voltage of 333V for reliable operation. Black glass filled polyester housing provides durability and insulation.

Phosphor bronze contacts with matte tin plating enhance conductivity and corrosion resistance. Low profile 3.25 mm solder tail saves PCB space. Operates across -55°C to 105°C temperature range for various industrial uses.

Through-hole termination ensures stable mounting and connection. CES series is compatible with multiple header types for design versatility. RoHS compliant for environmental and regulatory adherence.

This PCB socket is widely applicable in industrial electronics, manufacturing, power connectors, and assembly lines requiring robust, low profile board-to-board connections. Its reliable contact system and durable housing make it suitable for commercial, laboratory, and manufacturing environments. Explore various PCB Sockets and connectors at EnvMart for optimized electronic solutions.
