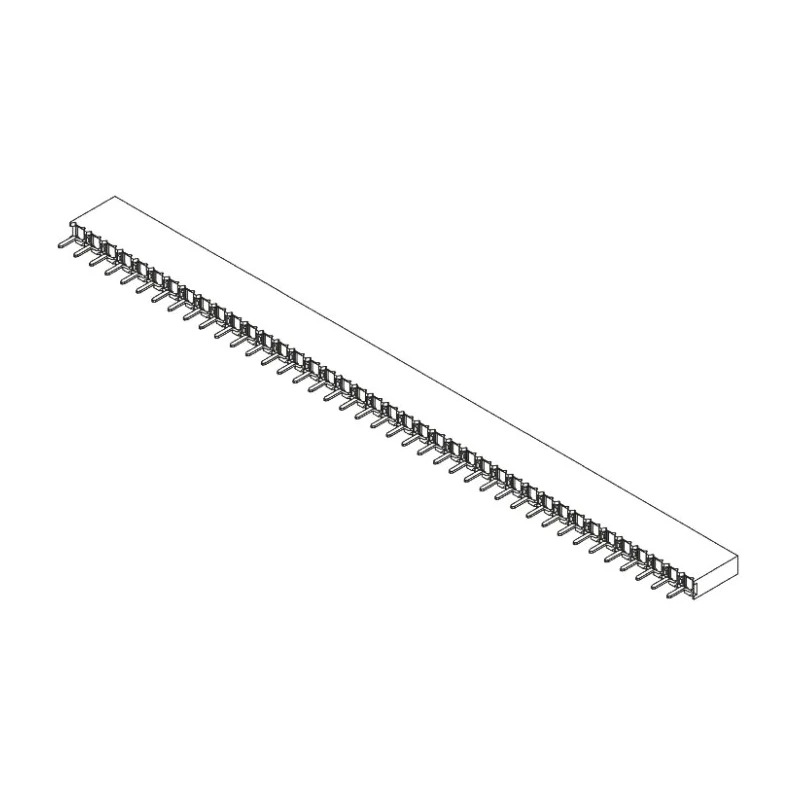

Samtec BCS Series Straight Through Hole PCB Socket 40-Contact 1 Row 2.54 mm Pitch Solder BCS-140-L-S-TE
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.6A |
| Model | BCS-140-L-S-TE |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | BCS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CHINA RoHS, EU REACH, EU RoHS |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Row Pitch | 0.1in |
Key Features
- Features a black liquid crystal polymer housing for superior durability.
- Contacts are made of phosphor bronze with 0.25μm gold plating for reliable conductivity.
- Supports a current rating of 4.6 amps and voltage rating of 475 volts.
- Operates efficiently in a temperature range from -55°C to 125°C.
- Designed with a 2.54 mm pitch and 0.1 inch row pitch for standard PCB layouts.
- Provides through hole mounting for secure connection to printed circuit boards.
- Compatible with corresponding Samtec TSW, TSM, DW, and EW series headers and flexible board stackers.
- Meets CHINA RoHS, EU REACH, and EU RoHS environmental standards.
Product Description
Samtec BCS-140-L-S-TE is a high-quality straight through hole PCB socket featuring 40 contacts arranged in a single row with a 2.54 mm pitch, suitable for board-to-board connection systems. The black liquid crystal polymer housing ensures durability and heat resistance, making it ideal for industrial and electronic manufacturing applications requiring robust, high-performance connectors.
The contacts are made of phosphor bronze and plated with 0.25 μm gold, ensuring excellent conductivity and corrosion resistance. The socket supports a current rating of 4.6 A and voltage rating up to 475 V, making it suitable for demanding electrical environments.
Its operating temperature range from -55°C to 125°C allows reliable performance in harsh conditions found in industrial, laboratory, and commercial electronics assemblies. The solder termination type and through hole mounting provide a strong mechanical and electrical connection for PCB applications.
This BCS series socket mates with a range of Samtec products including TSW series through hole square post headers, TSM series SMT square post headers, DW series flexible square board stackers, and EW series flexible square board stackers, providing versatility in various connector configurations.
Black liquid crystal polymer housing for high durability. Phosphor bronze contacts with 0.25 μm gold plating for superior conductivity. Supports 4.6 A current and 475 V voltage ratings. Wide operating temperature range from -55°C to 125°C.
2.54 mm pitch, 0.1 inch row pitch single row configuration. Through hole solder termination for strong PCB connection. Compliant with CHINA RoHS, EU REACH, and EU RoHS standards.
This product is commonly used in electronics manufacturing, industrial automation, lab instrumentation, and other industrial and commercial applications requiring reliable PCB connectivity.
Explore more PCB Sockets and connectors in the Electronics & Electricals category on EnvMart for high-quality industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 4.6 amps and a voltage rating of 475 volts.
It operates efficiently within a temperature range of -55°C to 125°C.
The housing is made of black liquid crystal polymer, and the contacts are made of phosphor bronze with 0.25 μm gold plating for conductivity.
This model features 40 contacts arranged in a single row.
The socket has a contact pitch of 2.54 mm and a row pitch of 0.1 inches.
It uses solder termination for secure mounting on printed circuit boards.
It is compatible with Samtec TSW, TSM, DW, and EW series headers and flexible board stackers.
This socket is designed for through hole mounting, providing a secure connection to PCBs.
It meets CHINA RoHS, EU REACH, and EU RoHS environmental standards.
The orientation of this socket is straight, suitable for standard PCB layouts.
This PCB socket is manufactured in India.
It is commonly used in electronics manufacturing, industrial automation, and laboratory instrumentation.
