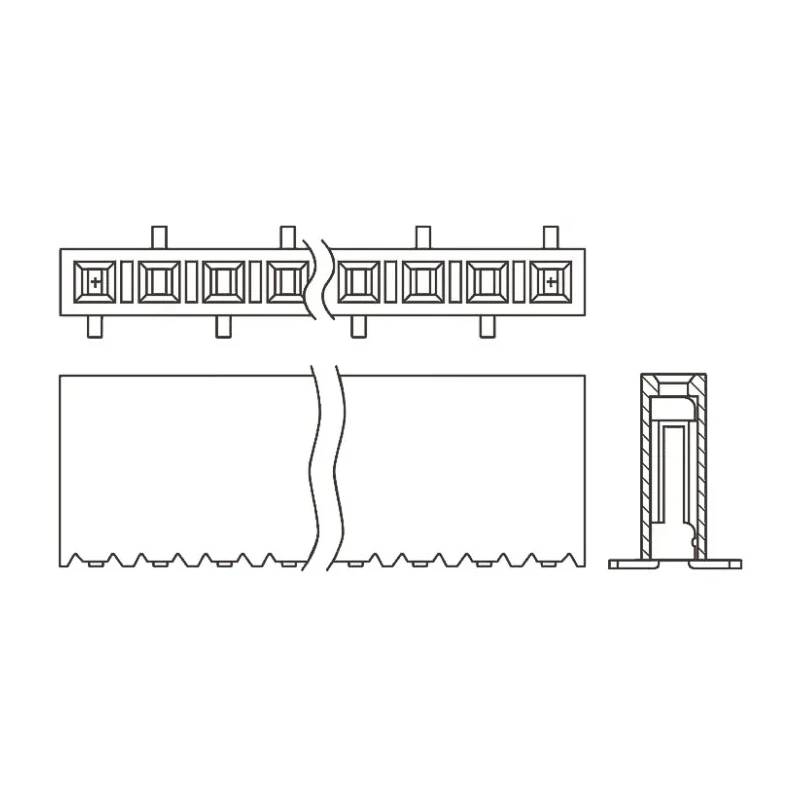

Samtec SSM Series Straight Surface PCB Socket 8-Contact 1 Row 2.54 mm Pitch Solder SSM-108-L-SV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSM-108-L-SV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- This PCB socket features a black liquid crystal polymer housing for high durability.
- The contacts are made of phosphor bronze plated with 0.25μm gold for excellent conductivity.
- Designed for surface mounting with straight orientation and solder termination.
- Operates within a temperature range of -55°C to 125°C for versatility in various environments.
- Supports a current rating of 6.9 A and voltage rating up to 475 V.
- The connector system is designed specifically for board-to-board applications.
- Contact gender is female to ensure compatibility with appropriate male headers.
- Part of the SSM series, suitable for single-row, vertical mount applications.
Product Description
Samtec SSM-108-L-SV is a straight surface-mount PCB socket featuring 8 contacts arranged in a single row with a 2.54 mm pitch. This SMT box style socket strip is designed for board-to-board connections in electronics and electrical assemblies.
The housing is constructed from black liquid crystal polymer, providing excellent mechanical stability and resistance to environmental factors. Contacts are made from phosphor bronze with a 0.25μm gold plating on the contact surfaces and matte tin on the tail for reliable electrical performance and soldering quality.
This socket supports a current rating of 6.9 A and voltage insulation up to 475 V, suitable for a wide range of industrial and commercial PCB applications. It operates reliably under temperatures ranging from -55°C to 125°C, enabling use in demanding environments.
The design is optimized for surface mount technology with straight orientation, ensuring easy assembly on PCBs. Contact gender is female, intended to mate with suitable male headers from the Samtec TSW, TSM, and TLW series, making it adaptable within standardized connector systems.
This product is ideal for industries including industrial electronics, power connectors, manufacturing, and electronic module assembly, where secure and reliable PCB connections are essential.
This PCB socket features a black liquid crystal polymer housing for high durability. The contacts are made of phosphor bronze plated with 0.25μm gold for excellent conductivity. Designed for surface mounting with straight orientation and solder termination.
Operates within a temperature range of -55°C to 125°C for versatility in various environments. Supports a current rating of 6.9 A and voltage rating up to 475 V. The connector system is designed specifically for board-to-board applications.
Contact gender is female to ensure compatibility with appropriate male headers. Part of the SSM series, suitable for single-row, vertical mount applications. Samtec products provide high-quality, reliable connectivity solutions. Explore more PCB Sockets and connectors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB socket have a pitch of 2.54 mm.
This model supports a maximum current rating of 6.9 A.
It has a voltage rating of up to 475 V.
The socket operates within a temperature range of -55°C to 125°C.
The housing is made of liquid crystal polymer, and the contacts are made from phosphor bronze with gold plating.
It uses solder termination for secure connections.
This socket features 8 contacts arranged in a single row.
The socket is designed with a straight orientation for surface mounting.
The contact gender is female, designed to mate with appropriate male headers.
Yes, it is specifically designed for board-to-board applications.
The country of origin for this product is India.
It is compatible with male headers from the Samtec TSW, TSM, and TLW series.
