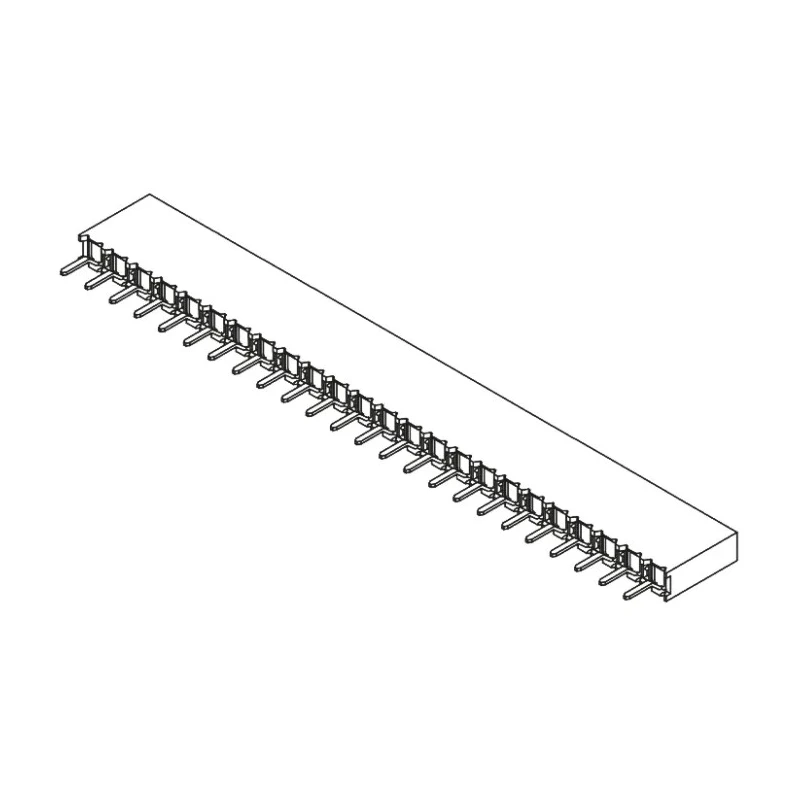

Samtec BCS Series Straight Through Hole PCB Socket 24-Contact 1 Row 2.54 mm Pitch Solder BCS-124-L-S-TE

Samtec BCS-124-L-S-TE is a high-quality straight through hole PCB socket designed for board-to-board applications that require durable electrical connections. This 24-contact, 1-row socket features a 2.54 mm pitch between contacts, ideal for standard PCB layouts and ensuring compatibility with many connector systems.

The socket’s housing is manufactured from black liquid crystal polymer, providing excellent mechanical strength, chemical resistance, and thermal stability. Contacts are made from phosphor bronze and plated with 0.25μm of gold over a bronze base, enhancing conductivity and corrosion resistance, with matte tin plating on the tails to facilitate reliable soldering.

This connector supports operating temperatures from -55°C to a maximum of 125°C, allowing it to function reliably in demanding industrial and electronics environments. It handles voltages up to 475 V and continuous currents up to 4.6 A, making it suitable for medium power board-to-board interconnections.

The BCS series PCB sockets adhere to strict environmental compliance standards including EU RoHS, China RoHS, and EU REACH, reflecting modern industry ecological regulations.

Designed for through-hole mounting, this single-row board-to-board socket is compatible with Samtec TSW and TSM series square post headers and DW and EW series flexible board stackers, enabling customized configurations for varied applications. Its straight orientation facilitates mechanical assembly in tight PCB layouts.

The housing is a black liquid crystal polymer, delivering high durability and heat resistance. Phosphor bronze contacts feature a 0.25μm gold plating for optimal conductivity and corrosion protection. Termination with solder tail ensures strong electrical and mechanical bonding with PCB pads.

Operating voltage rating up to 475 V and current capacity of 4.6 A support a wide range of signal and power connections. Temperature range from -55°C to 125°C suits industrial and commercial electronics use cases. Compliant with EU RoHS, China RoHS, and EU REACH for environmental safety.

Compatible with multiple Samtec header and board stacker series for board-to-board applications.

This Samtec PCB socket is ideal for industrial, construction, manufacturing, and electronics sectors requiring reliable, durable, and standardized board-to-board connectors. It enables efficient assembly and maintenance of high-density electronic systems.
