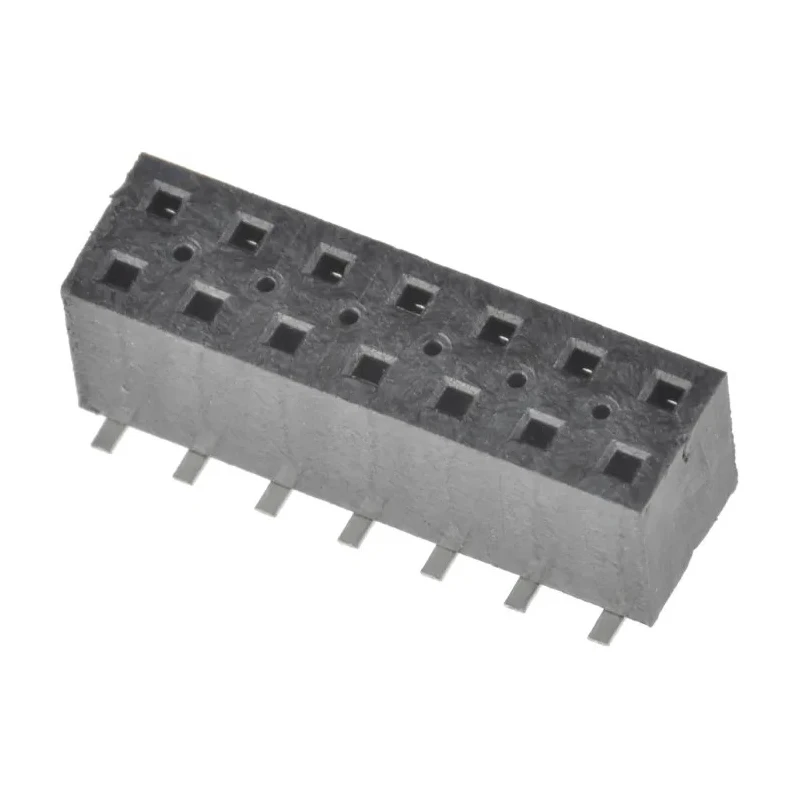

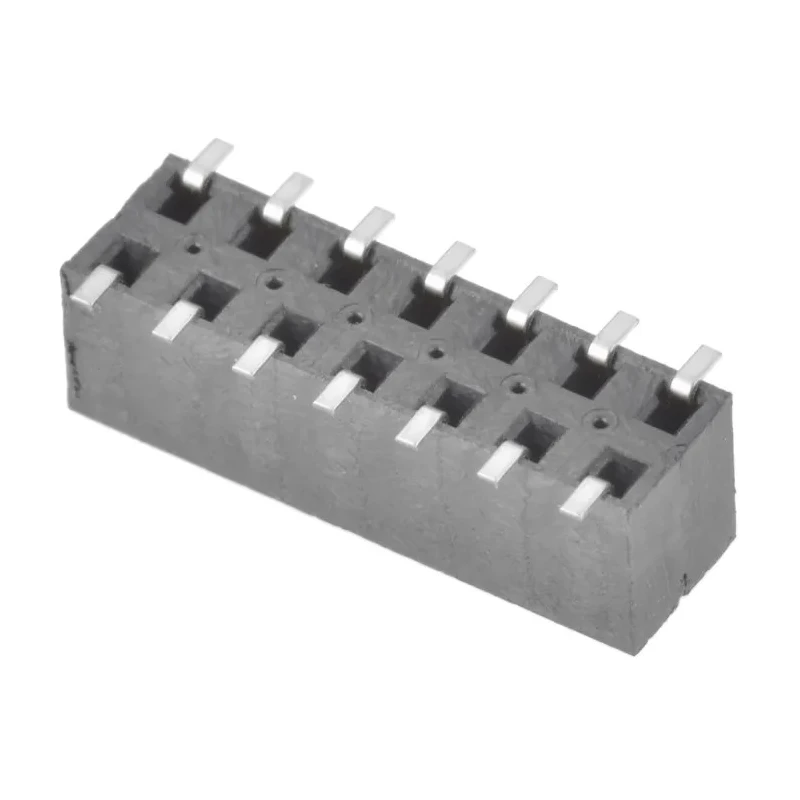

Samtec TLE Series Straight Surface PCB Socket, 14-Contact, 2 Row, 2 mm Pitch, Solder Termination TLE-107-01-G-DV
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Temperature range | -55 → 125 °C |
| Model | TLE-107-01-G-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | TLE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Features 14 female contacts in a dual 2-row configuration.
- Designed with 2 mm pitch for precise board-to-board interfacing.
- Constructed from black liquid crystal polymer housing for durability.
- Utilizes bronze contacts with gold plating for corrosion resistance.
- Rated for 3.2A current capacity ensuring stable electrical performance.
- Operates reliably within -55°C to 125°C temperature range.
- Surface mount technology with straight orientation for efficient assembly.
- Includes Tiger Beam contacts with 0.25 μm gold plating on contact and PCB tails.
Product Description
Samtec TLE-107-01-G-DV is a high-quality surface mount straight PCB socket featuring 14 female contacts arranged in 2 rows with a 2 mm row pitch. This reliable socket is part of the TLE Series from Samtec, designed for board-to-board SMT applications.
The socket housing is made from black liquid crystal polymer (LCP), ensuring excellent mechanical strength and thermal resistance. Bronze contact material is enhanced with Tiger Beam technology, providing a 0.25 μm gold plating on the contacts and PCB tails for superior conductivity and corrosion resistance.
Rated for a continuous current of 3.2A, this socket operates efficiently across a wide temperature range from -55°C to 125°C, making it suitable for industrial and electronic equipment operating under harsh environmental conditions.
This TLE Series socket offers a precise 2 mm pitch between pins and rows, enabling compact and consistent board-to-board connections in complex assemblies. The surface mount type and straight orientation facilitate easy installation on printed circuit boards.
Applications include industrial electronics, power connectors, manufacturing equipment, and other electronics requiring high-reliability PCB connections. 14 female contacts in dual row configuration ensure stable connections.
2 mm pitch supports compact board designs. Black LCP housing for thermal and mechanical durability. Bronze contacts with 0.25 μm gold plating resist corrosion. Current rating of 3.2A suitable for various power applications.
Wide operating temperature from -55°C to 125°C ensures reliability. Surface mount straight socket for easy PCB assembly. Part of trusted Samtec TLE Series.
Set contains one Samtec TLE Series PCB Socket model TLE-107-01-G-DV. This component supports robust board-to-board connectivity in industrial, manufacturing, and electronics sectors. Explore more PCB connectors and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 3.2A, ensuring stable electrical performance in various applications.
It operates reliably within a temperature range of -55°C to 125°C, making it suitable for harsh environmental conditions.
This socket features 14 female contacts arranged in a dual row configuration.
The TLE-107-01-G-DV utilizes solder termination, suitable for secure connections on printed circuit boards.
The housing is made from black liquid crystal polymer (LCP), while the contacts are constructed from bronze with gold plating for corrosion resistance.
The contacts are designed with a 2 mm pitch, allowing for compact and precise board-to-board interfacing.
This model features a straight orientation, facilitating efficient surface mount assembly on PCBs.
It is suitable for industrial electronics, power connectors, manufacturing equipment, and other electronics requiring high-reliability PCB connections.
The insulator material is black liquid crystal polymer, providing excellent mechanical strength and thermal resistance.
The contacts feature a 0.25 μm gold plating, enhancing conductivity and providing corrosion resistance.
This model supports surface mounting, which is ideal for efficient installation on printed circuit boards.
The country of origin for this product is India.
