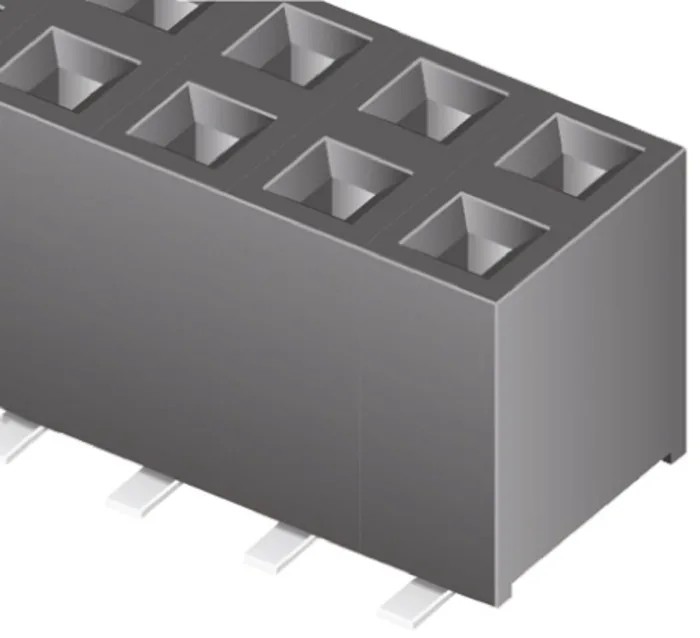

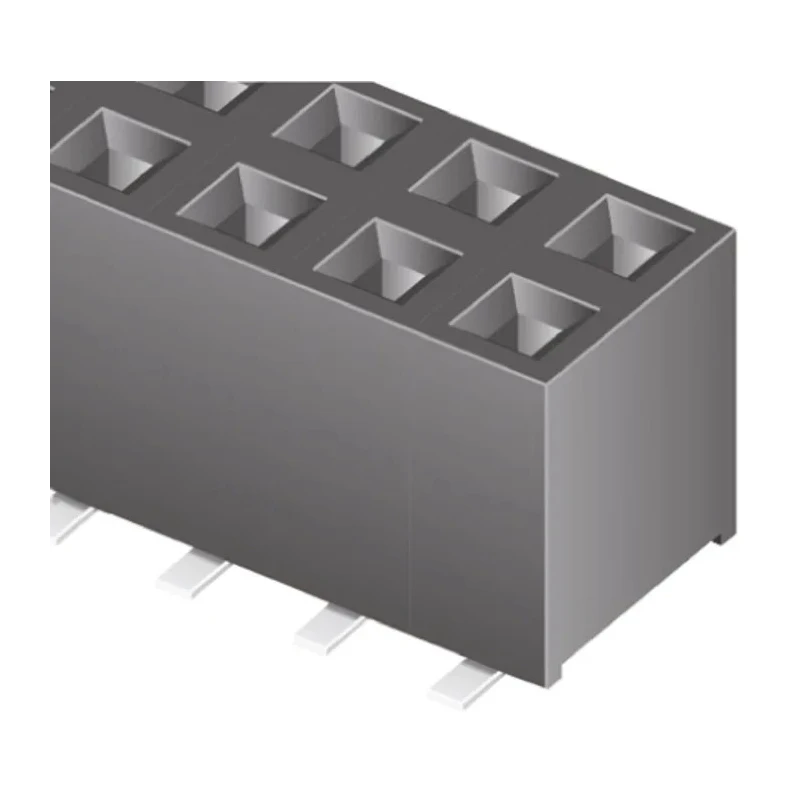

Samtec TLE Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2 mm Pitch Solder TLE-105-01-G-DV

Samtec TLE-105-01-G-DV is a high-quality PCB socket featuring 10 contacts arranged in 2 rows with a 2 mm pitch, designed for straight surface mounting applications. This board-to-board connector offers reliable electrical performance with bronze contacts plated with 0.25 μm gold on contact areas and PCB tails.

The socket housing is made from black Liquid Crystal Polymer (LCP), ensuring high durability and insulation. It supports a current rating of 3.2 A, making it suitable for medium power duration usage in electronic assemblies.

Operating temperature ranges from -55°C to 125°C, meeting various industrial and commercial application requirements. Its surface mount termination and female contact gender facilitate easy integration on printed circuit boards where space optimization and connection integrity are crucial.

This TLE series socket strip offers an above-board height of 4.5 mm and features a straight orientation with a dual-row 2 mm pitch, enabling compact and efficient board designs. It is ideal for industries such as electronics manufacturing, industrial control systems, communications equipment, and PCB assembly lines.

Board-to-board connector system with Tiger Beam contact technology. Constructed with bronze contact material and gold plating for superior conductivity. Durable liquid crystal polymer housing ensures longevity. Supports 3.2 A current rating at temperatures ranging from -55°C to 125°C.

Surface mount solder termination for straightforward PCB assembly. Dual row, 2 mm pitch with female contact gender and straight orientation. The package supplied in a tube enhances handling for automated production processes. Compatible mating headers include TMM SMT and through-hole types for extended versatility.
