Samtec TLE Series Straight Surface PCB Socket 18-Contact 2 Row 2 mm Pitch Solder TLE-109-01-G-DV

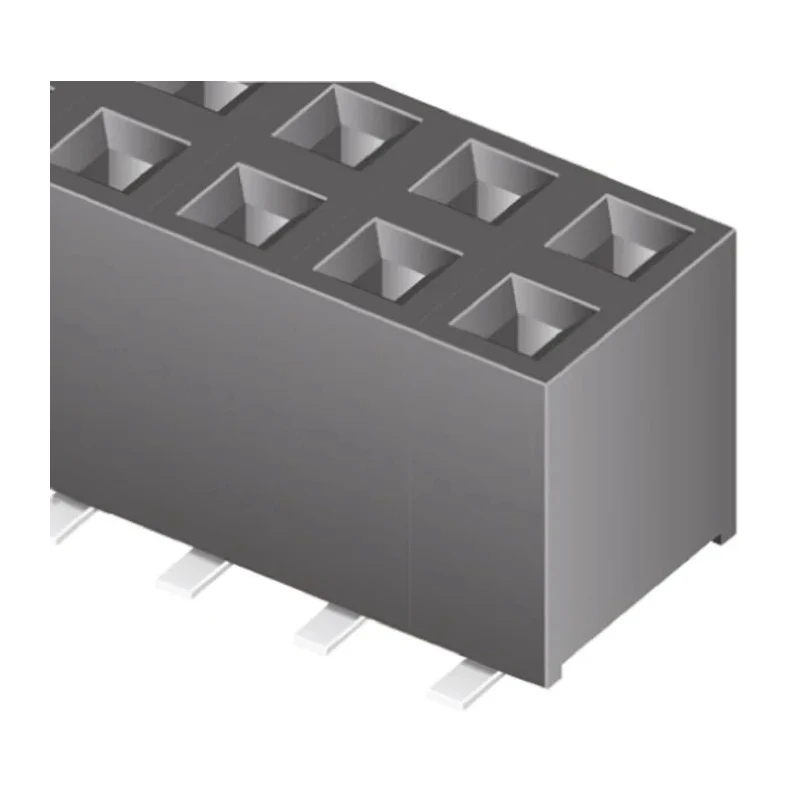

Samtec TLE-109-01-G-DV PCB socket is a high-quality, straight surface mount socket designed for reliable board-to-board connections in electronic assemblies. It features 18 female contacts distributed in 2 rows with a 2 mm pitch, enabling compact multi-connection interfaces compliant with industrial electronics standards.

The socket contacts employ bronze material with 0.25 μm gold plating on contact areas and PCB tails, ensuring consistent conductivity and resistance to corrosion. The housing uses durable black liquid crystal polymer (LCP), allowing operation in a wide temperature range from -55°C up to 125°C, making it suitable for demanding environments.

This component supports a current rating of 3.2 amps and employs solder termination for robust mechanical and electrical mounting. The straight orientation and surface mount type facilitate easy assembly on printed circuit boards with a row pitch of 2 mm and an above-board height of 4.5 mm.

Applications include industrial electronics manufacturing, PCB connector assembly, and power connector integrations requiring multi-contact board-to-board interfacing. The socket is designed for surface mount technology applications.

Contact material is bronze with gold plating for reliable electrical connections. Housing is made of black liquid crystal polymer for durability and temperature resistance. Operating temperature ranges from -55°C to 125°C.

Current rating of 3.2 A supports moderate electrical loads. TLE Series offers a 4.5 mm above board height and straight orientation. Suitable for industrial electronic components and PCB connector applications.

Samtec products ensure quality and reliability in advanced electronics manufacturing. Explore the PCB Sockets category on EnvMart for additional industry-grade connectors and components.
